TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

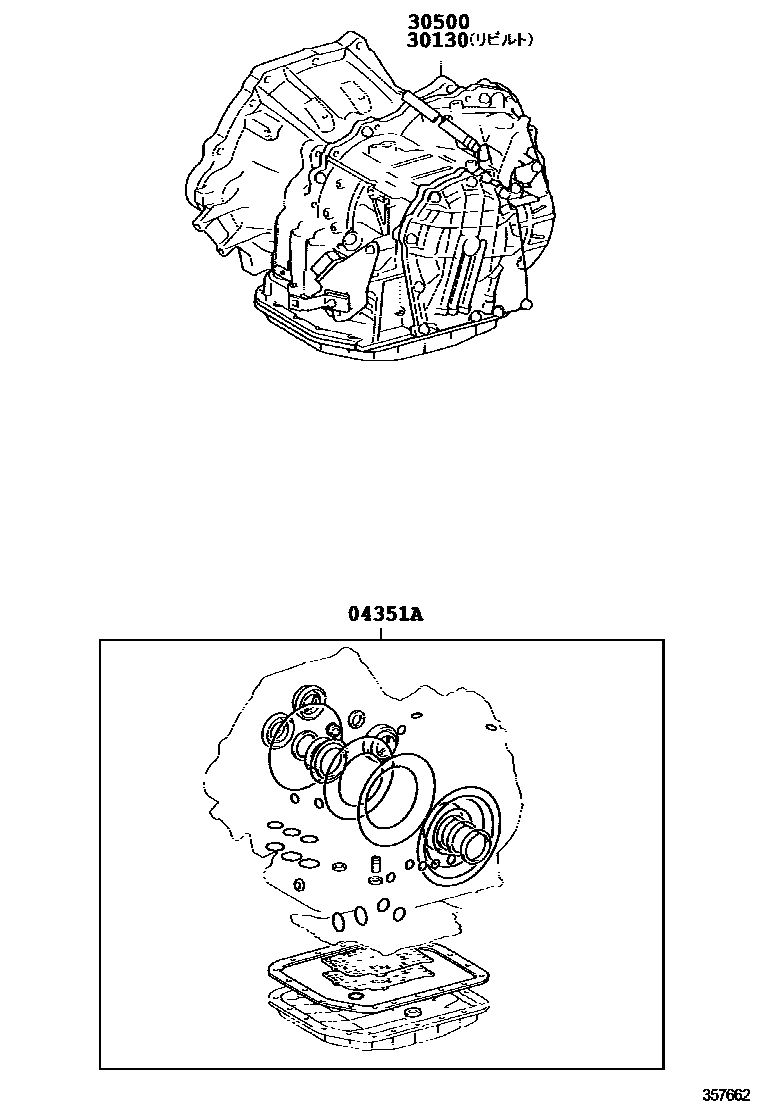

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-46010i200506-200910

main04351-52040i200304-200506

main04351-52400i200506-200910

main04351-52510i200911-201003

main04351-52511i201003-201104

main04351-52520i200911-201001

main04351-52521i201001-201011

main04351-52522i201011-201104

30130TRANSAXLE ASSY, REBUILT

main30130-46030i200304-200506

main30130-46031i200506-200508

main30130-46032i200508-201104

main30130-46040i200304-200506

main30130-46041i200506-200508

main30130-46042i200508-201104

30500TRANSAXLE ASSY, AUTOMATIC

main30500-46030i200304-200506

main30500-46031i200506-200508

main30500-46032i200508

main30500-46040i200304-200506

main30500-46041i200506-200508

main30500-46042i200508

3 parts on this diagram · 1 diagram in section
