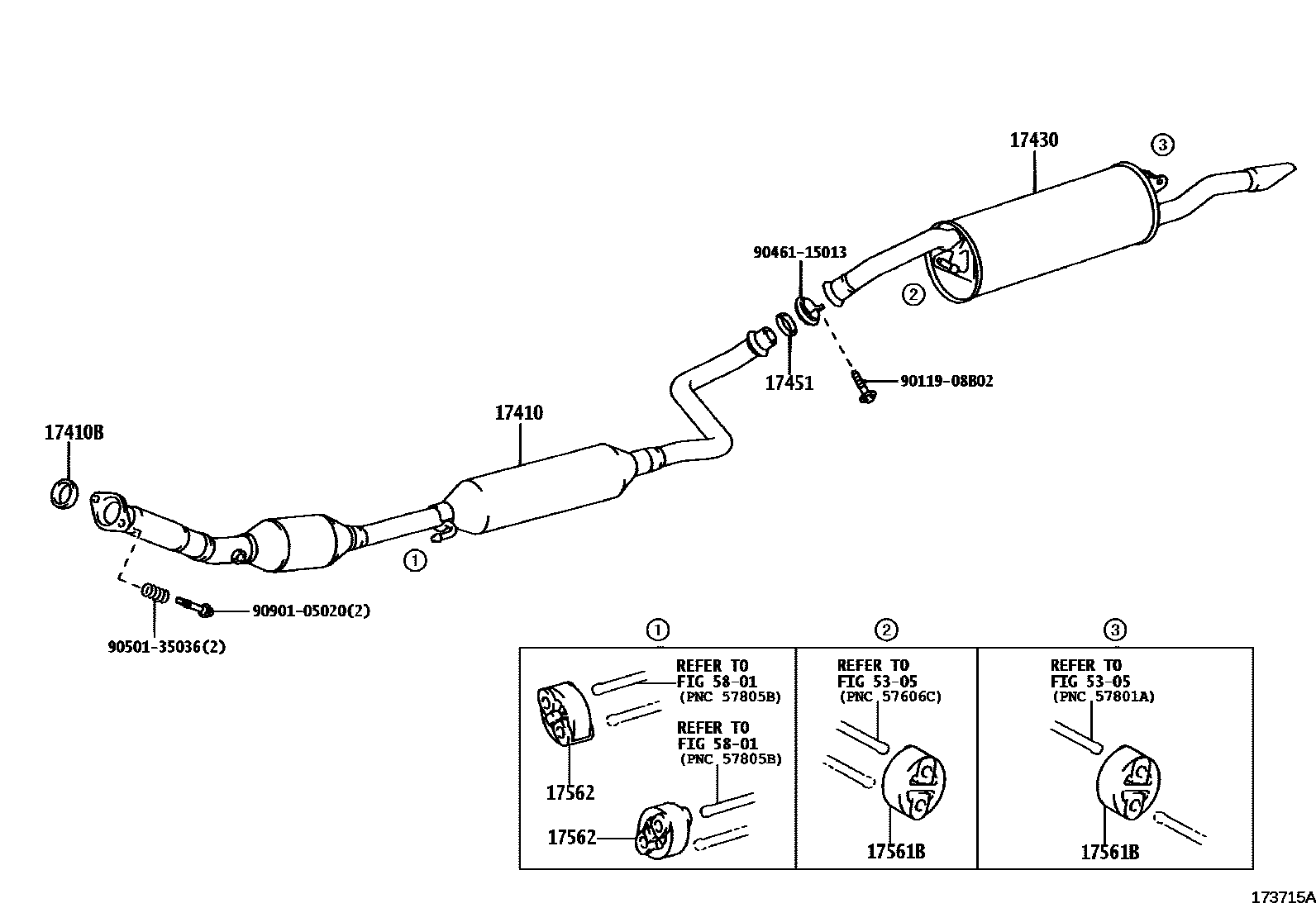

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21400i1NZFE..NCZ25200304-200611

main17410-21401i1NZFE..NCZ25200612-201008

main17410-21550i1NZFE..NCZ20200304-200611

main17410-21551i1NZFE..NCZ20200612-201008

main17410-21B70i1NZFE..NCZ20201008-201104

main17410-21B90i1NZFE..NCZ25201008-201104

17410BGASKET, EXHAUST PIPE

main17451-21030i1NZFE..NCZ2#200304-201104

17430PIPE ASSY, EXHAUST, TAIL

main17430-21560i1NZFE..NCZ25200304-200910

main17430-21561i1NZFE..NCZ25200911-201007

main17430-21570i1NZFE..NCZ20200304

main17430-21860i1NZFE..NCZ25201008

17451GASKET, EXHAUST PIPE

main90917-06048i1NZFE..NCZ25201008

main90917-06082i1NZFE..NCZ20200304

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-55050×2i1NZFE..NCZ25200304

main17565-74280×2i1NZFE..NCZ20200304

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-23040×2i1NZFE..NCZ20200304

main17565-11160×2i1NZFE..NCZ25200304

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9011908B02

main90119-08B02

9046115013

main90461-15013

9050135036

main90501-35036

9090105020

main90901-05020

12 parts on this diagram · 3 diagrams in section
