ENGINE OVERHAUL GASKET KIT

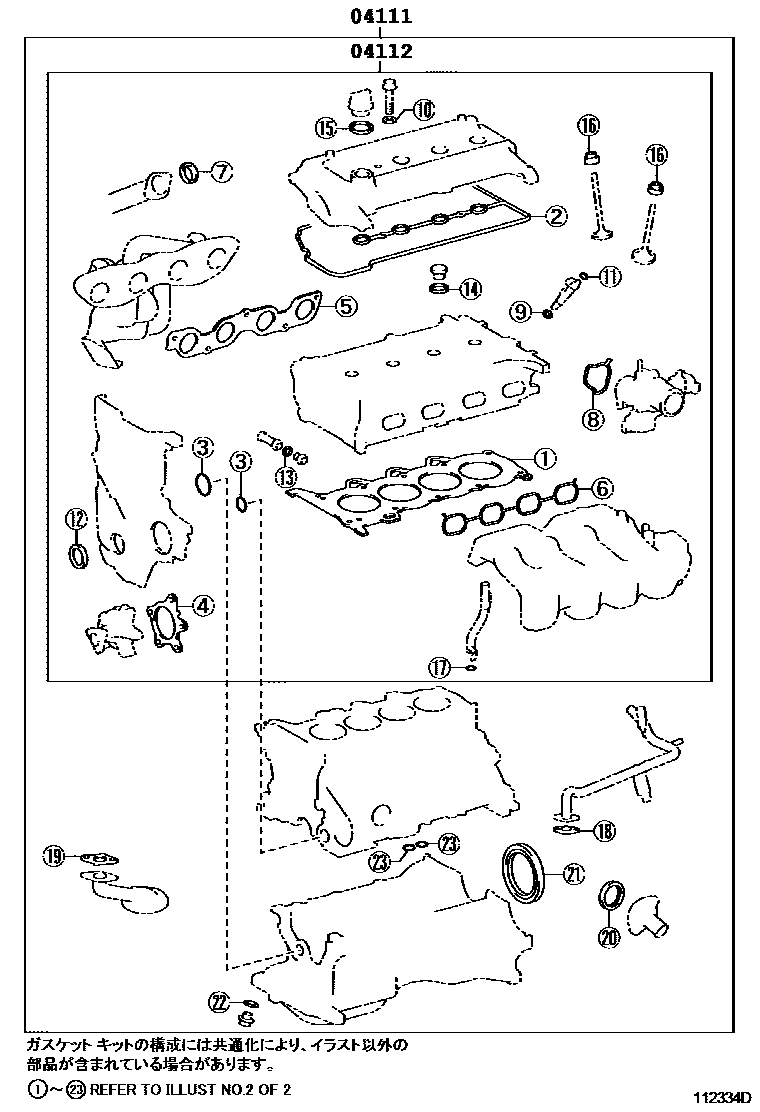

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-21061i200304-200308

main04111-21062i200308-200612

main04111-21063i200612-200811

main04111-21064i200811-201011

main04111-21065i201011-201104

04112GASKET KIT, ENGINE VALVE GRIND

main04112-21061i200304-200308

main04112-21062i200308-200612

main04112-21063i200612-201011

main04112-21064i201011-201104

2 parts on this diagram · 2 diagrams in section
