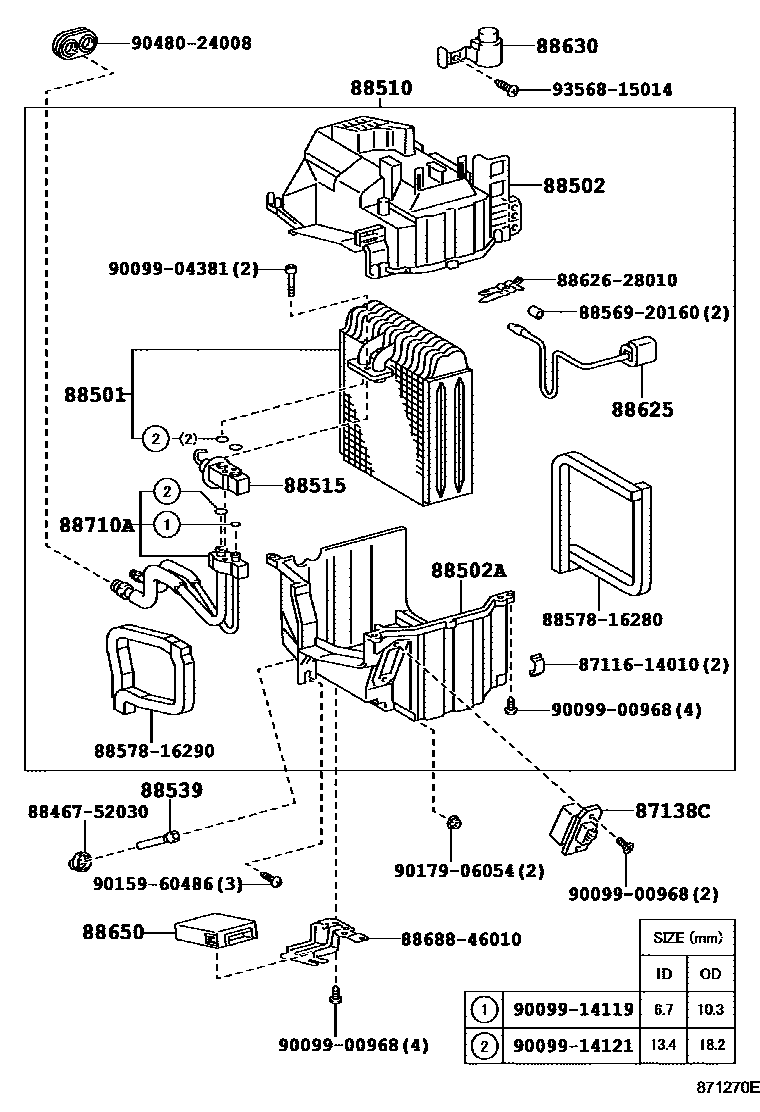

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1��(�� ����)

87138CRESISTOR, BLOWER

main87138-16140iEXZ1#199705

main87138-46010iEXZ1#199705-199803

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-16160iEXZ1#199808

main88501-42011iEXZ1#199803-199808

88502CASE SUB-ASSY, COOLING UNIT

main88502-46010iEXZ1#199705

main88521-46010iEXZ1#199808

88502ACASE SUB-ASSY, COOLING UNIT

main88502-46020iEXZ1#199705

main88502-46030iEXZ1#199808

88510UNIT ASSY, COOLER

main88510-46030iEXZ1#199705

main88510-46060iEXZ1#199808

88515VALVE, COOLER EXPANSION

main88515-16060iEXZ1#199808

main88515-20100iEXZ1#199705

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-95703iEXZ1#199705-199907

88625THERMISTOR, COOLER, NO.1

main88625-12230iEXZ1#199705

88630RELAY ASSY, COOLER

main88630-46010iEXZ1#199705

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-46010iEXZ1#199705

main88650-46020iEXZ1#199705

88710ATUBE ASSY, AIR CONDITIONER

main88710-46010iEXZ1#199705

main88710-46020iEXZ1#199808

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

8857816280PAKING, COOLER AIR DUCT

main88578-16280

8857816290PAKING, COOLER AIR DUCT

main88578-16290

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

8868846010BRACKET, COOLER DIAPHRAGM

main88688-46010

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9015960486

main90159-60486

9017906054

main90179-06054

9048024008

main90480-24008

9356815014

main93568-15014

26 parts on this diagram · 2 diagrams in section
