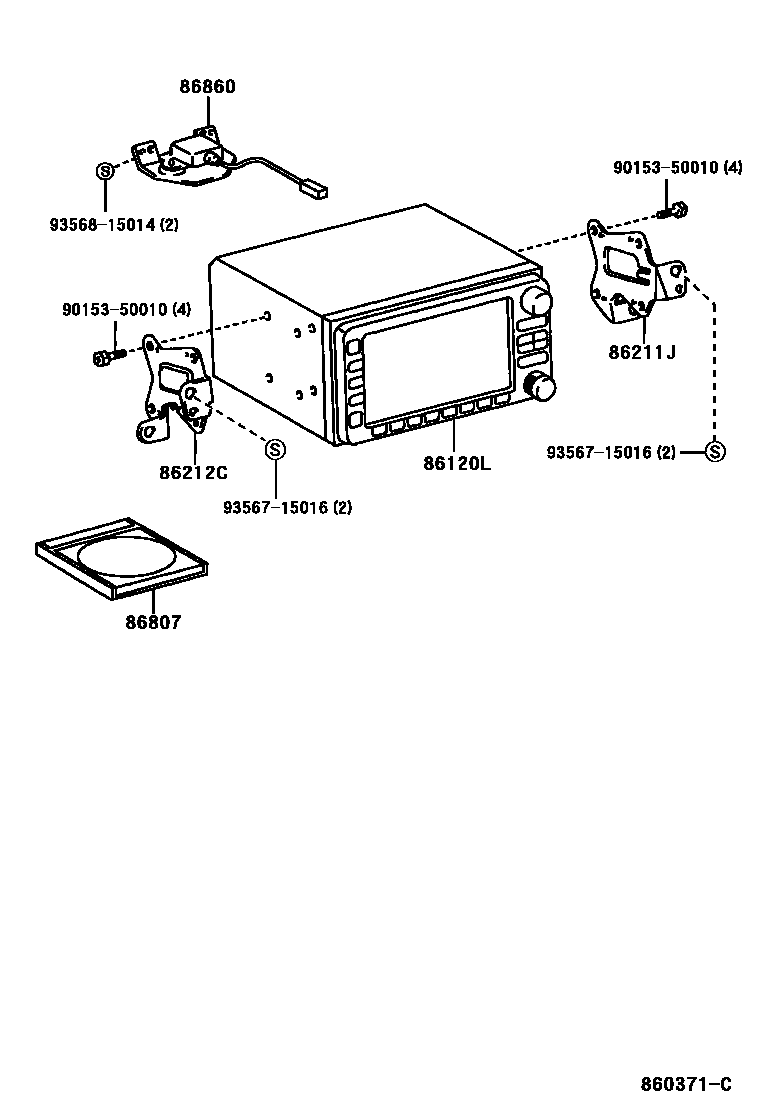

NAVIGATION & FRONT MONITOR DISPLAY

86120LRECEIVER ASSY, NAVIGATION

main86120-13030iEXZ10199705-199706

main86120-13031iEXZ1#199706-199710

main86120-13032iEXZ1#199710-199808

main86120-28320iEXZ1#199808-199907

main86120-46010iEXZ1#199907-200204

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-46020iEXZ1#199705-199907

main86211-46030iEXZ1#199907-200204

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-46020iEXZ1#199705-199907

main86212-46030iEXZ1#199907-200204

86807DISC KIT, CD-ROM

main86807-13010iEXZ1#199705-199711

main86807-13011iEXZ1#199711-199907

main86807-52010iEXZ1#199907-200204

86860ANTENNA ASSY, NAVIGATION

main86860-46010iEXZ1#199705-199907

main86860-46020iEXZ1#199907-200108

main86860-46021iEXZ1#200108-200204

9015350010

main90153-50010

9356715016

main93567-15016

9356815014

main93568-15014

8 parts on this diagram · 1 diagram in section
