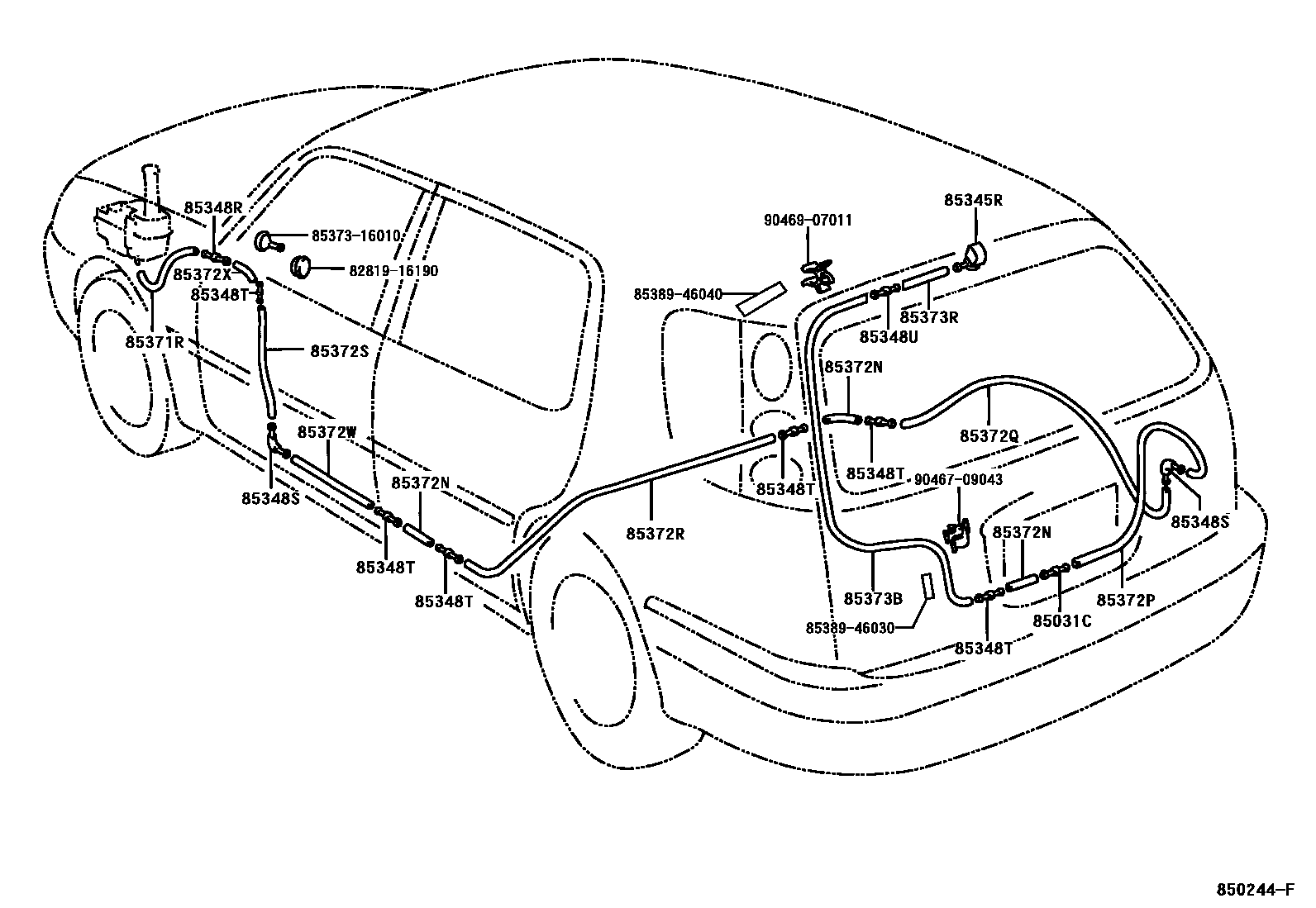

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

main85031-30010iEXZ1#199705

85345RNOZZLE, REAR WASHER

main85395-46010iEXZ1#199705

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iEXZ1#199705

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iEXZ1#199705

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122×2iEXZ1#199705

85348UJOINT, REAR WASHER HOSE, NO.3

main85031-12250iEXZ1#199705

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iEXZ1#199705

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iEXZ1#199705

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iEXZ1#199705

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iEXZ1#199705

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-59167iEXZ1#199705

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-59024iEXZ1#199705

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-59024iEXZ1#199705

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90099-33080iEXZ1#199705

85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7

main90446-06006iEXZ1#199705

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-06013iEXZ1#199705

8281916190GROMMET, WIRING HARNESS

main82819-16190

8537316010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-16010

8538946030PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-46030

8538946040PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-46040

9046709043

main90467-09043

9046907011

main90469-07011

22 parts on this diagram · 1 diagram in section
