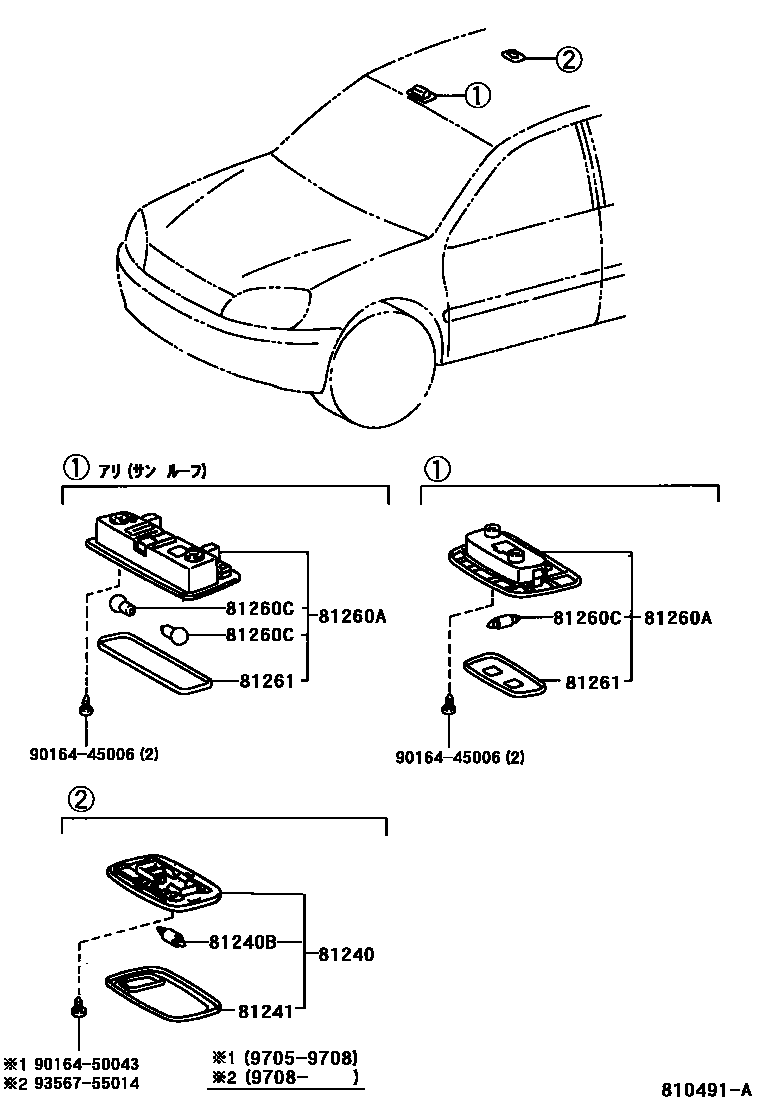

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-46010-A0iEXZ1#..SEPA200204

main81240-46010-B0iEXZ1#199705-199907

LT.BLUISH GRAY,TRIM1#

main81240-46010-B2iEXZ1#199907

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iEXZ1#199705

81241LENS, ROOM LAMP, NO.1

main81241-46010iEXZ1#199705

81260ALAMP ASSY, MAP

main81260-14080-A2iEXZ1#..SEPA200204

main81260-14080-B2iEXZ1#199705-199907

main81260-14080-B6iEXZ1#199907-200204

main81260-46010-A0iEXZ1#..SEPA200204

main81260-46010-B0iEXZ1#199705-199907

LT.BLUISH GRAY,TRIM1#

main81260-46010-B2iEXZ1#199907

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2iEXZ1#199705

main90981-14004iEXZ1#199902

main99132-12100iEXZ1#199705-199902

81261LENS AND COVER, MAP LAMP

main81261-14080iEXZ1#199705

main81261-46010iEXZ1#199705

9016445006

main90164-45006

9016450043

main90164-50043

9356755014

main93567-55014

9 parts on this diagram · 2 diagrams in section
