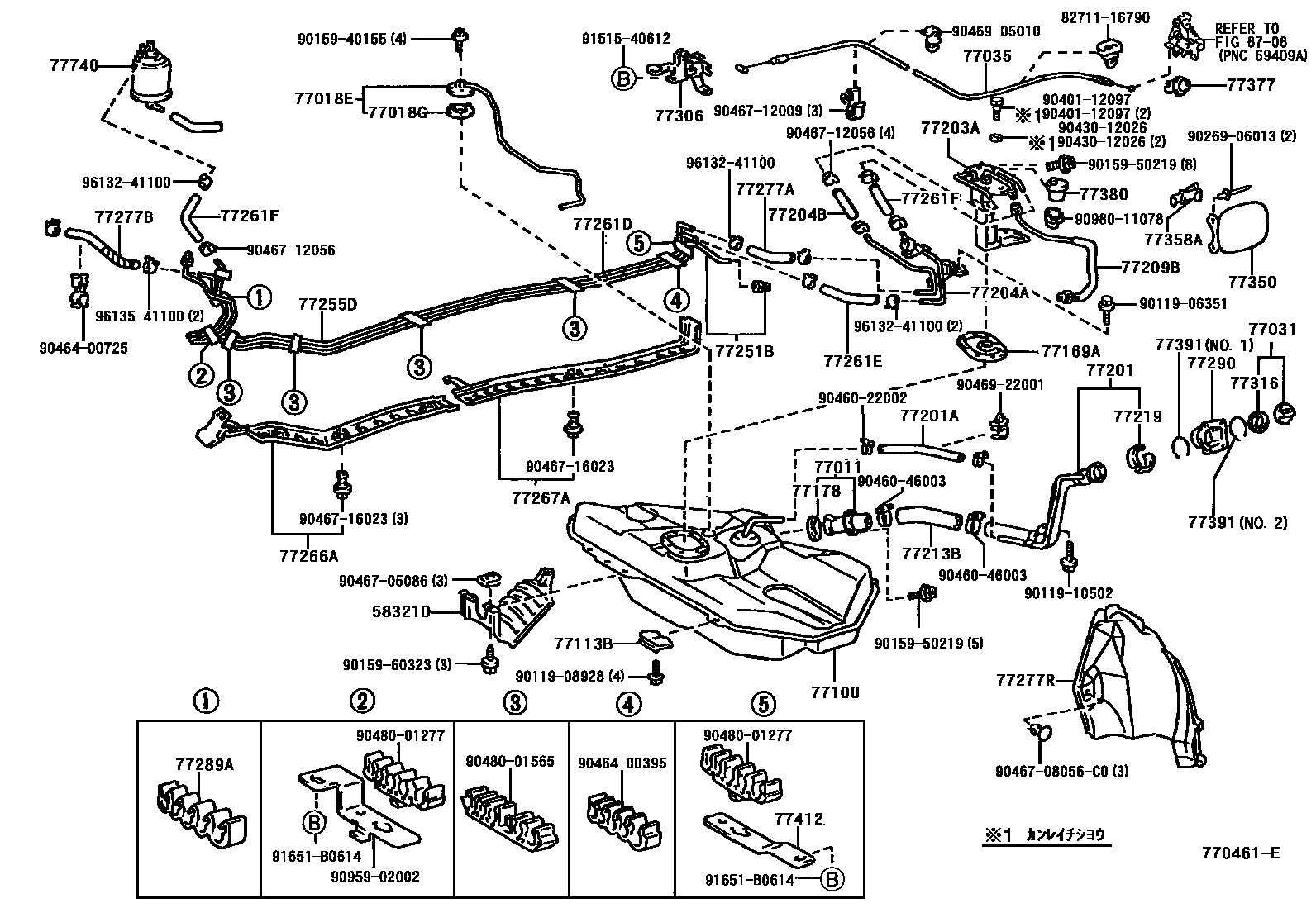

FUEL TANK & TUBE

0001 1 0002 1

58321DINSULATOR, REAR FLOOR HEAT, NO.1

main58321-10020iEXZ10199705

6706

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10060iEXZ15199708

main77011-16100iEXZ10199705

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-10010iEXZ15199708-199711

main77018-16060iEXZ10199705

main77018-16070iEXZ15199711

77018GGASKET, FUEL TANK EVAP/VENT TUBE

main77179-26010iEXZ1#199705

sub77179-26011

77031CAP ASSY, FUEL TANK

main77310-16011iEXZ1#199705-199803

sub77310-12140

main77310-48010iEXZ1#199803

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-46010iEXZ1#199705-199911

main77035-46011iEXZ1#199911

77100TANK ASSY, FUEL

main77001-10340iEXZ15199708-199711

main77001-16300iEXZ15199711

main77001-46020iEXZ10199705

77113BPLATE, FUEL TANK SIDE

main77113-10020×4iEXZ10199705

main77113-10030×2iEXZ15199708

main77113-10040×2iEXZ15199708

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iEXZ15199708

main77169-20050iEXZ10199705

main77169-60010iEXZ15199708

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iEXZ1#199705

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-46010iEXZ10199705-200207

main77201-46020iEXZ10200207

main77201-46030iEXZ15199708

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77269-13030iEXZ10200204

main95311-11024iEXZ15199708

main95311-13028iEXZ10199705-200204

77203ATUBE SUB-ASSY, FUEL SUCTION

main23206-11180iEXZ15199708-199711

main77203-16040iEXZ10199705

main77203-16050iEXZ10199705

main77203-16070iEXZ15199711

77204ATUBE, FUEL TANK RETURN

main23204-11180iEXZ15199708-199711

main77204-16010iEXZ10199705

main77204-16040iEXZ15199711

77204BHOSE, FUEL(FOR FUEL RETURN)

main95333-06020iEXZ10199705-200204

sub95337-06020

main95334-06012iEXZ15199708

main95337-06010iEXZ10200204

77209BTUBE SUB-ASSY, FUEL PUMP

main23091-11100iEXZ15199708-199711

main77209-16020iEXZ10199705-200204

main77209-16060iEXZ15199711

main77209-16070iEXZ10199705

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-10080iEXZ15199708

main77213-16080iEXZ10199705-200204

main77213-46010iEXZ10200204

77219COVER, FUEL TANK FILLER PIPE

main77219-32030×2iEXZ1#199705

77251BTUBE, FUEL MAIN

main77251-46010iEXZ10199705

main77251-46020iEXZ15199708

77255DTUBE, FUEL RETURN

main77255-46010iEXZ10199705

main77255-46020iEXZ15199708

77261DTUBE, FUEL TANK TO CANISTER

main77261-46010iEXZ10199705-200204

main77261-46011iEXZ10200204

main77261-46020iEXZ15199708

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main77419-10010iEXZ10199705

main77419-10030iEXZ15199708

77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

main95333-06020iEXZ1#199705

sub95337-06020

77266APROTECTOR, FUEL TUBE, NO.1

main77266-10030iEXZ1#199705

77267APROTECTOR, FUEL TUBE, NO.2

main77267-46010iEXZ1#199705

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main77279-10060iEXZ15199708

main77279-46010iEXZ10200204

main95333-06020×2iEXZ10199705-200204

sub95337-06020

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main23271-11241iEXZ1#199705-200204

main23271-11360iEXZ10200204

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-46010iEXZ1#199705

77289ACLAMP, FUEL TUBE W/GROMMET, NO.3

main77289-10030iEXZ1#199705

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-46010iEXZ1#199705

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-46010iEXZ1#199705-199808

main77306-46011iEXZ1#199808

77316GASKET, FUEL TANK CAP

main77316-16010iEXZ1#199705

77350LID ASSY, FUEL FILLER OPENING

main77350-46010iEXZ1#199705

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-46010iEXZ1#199705

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iEXZ1#199705

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iEXZ1#199705

77391RING, FUEL INLET BOX

main77391-12020iEXZ1#199705

main77391-46010iEXZ1#199705

77412SUPPORT, FUEL TUBE GROMMET, NO.2

main77412-10010iEXZ1#199705

77740CANISTER ASSY, CHARCOAL

main77740-16270iEXZ1#199705-200204

main77740-46010iEXZ10200204

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906351

main90119-06351

9011908928

main90119-08928

9011910502

main90119-10502

9015940155

main90159-40155

9015950219

main90159-50219

9015960323

main90159-60323

9026906013

main90269-06013

9040112097

main90401-12097

9043012026

main90430-12026

9046022002

main90460-22002

9046046003

main90460-46003

9046400395

main90464-00395

9046400725

main90464-00725

9046705086

main90467-05086

9046708056C0

main90467-08056C0

9046712009

main90467-12009

9046712056

main90467-12056

9046716023

main90467-16023

9046905010

main90469-05010

9046922001

main90469-22001

9048001277

main90480-01277

9048001565

main90480-01565

9095902002

main90959-02002

9098011078

main90980-11078

9151540612

main91515-40612

91651B0614

main91651-B0614

9613241100

main96132-41100

9613541100

main96135-41100

69 parts on this diagram · 2 diagrams in section
