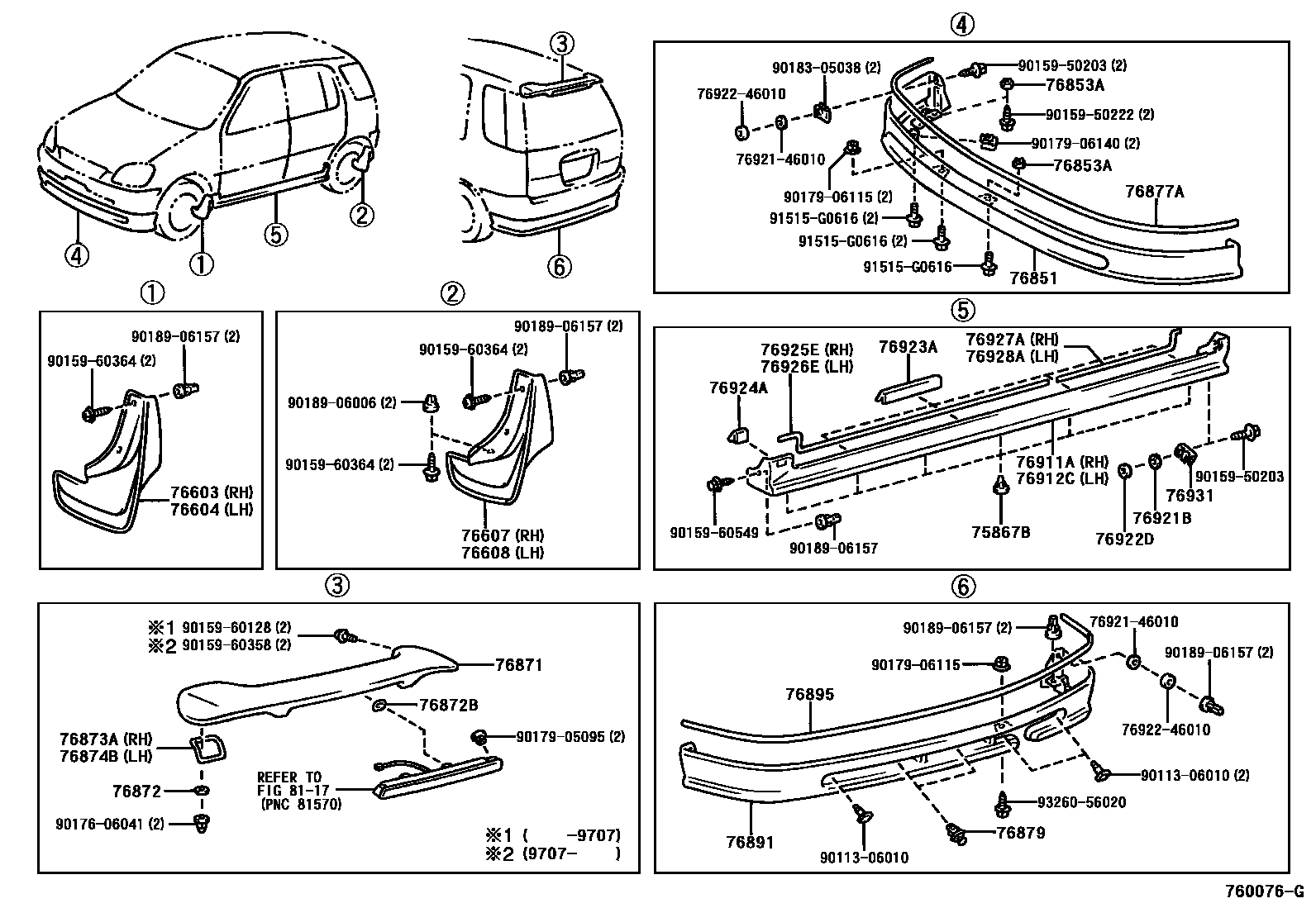

MUDGUARD & SPOILER
75867BCLIP, ROCKER PANEL MOULDING
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
SUPER WHITE,040
SILVER ME,199 ,2DW
SILVER ME.,1C0; SILVER ME.,1C0 ,2HX
BLACK,202
RED M.M.,3L9
BEIGE M.M.,4N3
CHAMPAGNE ME.,583
DK.GREEN MC.,6R4
DK.TURQUOISE.MC,742
LT.AQUA ME.OP.,761
BLUE MC.,8M6
LT.PURPLE ME.OP.,931
DK.PURPLE MC.GR.,940
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
WHITE PEARL MC.,049
SILVER ME,199 ,2DW ,2DX
SILVER ME.,1C0
BLACK,202
RED M.M.,3L9
BEIGE M.M.,4N3
CHAMPAGNE ME.,583
DK.GREEN MC.,6R4
DK.TURQUOISE.MC,742
LT.AQUA ME.OP.,761
BLUE MC.,8M6
LT.PURPLE ME.OP.,931
DK.PURPLE MC.GR.,940
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
WHITE PEARL MC.,049
SILVER ME,199 ,2DW ,2DX
BLACK ME.,205
RED M.M.,3L9
BEIGE M.M.,4N3
DK.TURQUOISE.MC,742
LT.PURPLE ME.OP.,931
DK.PURPLE MC.GR.,940
WHITE PM,049
SUPER WHITE 2,040
SILVER ME.,1C0; SILVER ME.,1C0 ,2HX
BLACK,202
SUPER RED II,3E5
CHAMPAGNE ME.,583
DK.GREEN MC.,6R4
LT.AQUA ME.OP.,761
BLUE MC.,8M6
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
SILVER ME,199 ,2DW ,2DX
BLACK ME.,205
RED M.M.,3L9
SUPER RED 2.,3E5
BEIGE M.M.,4N3
DK.TURQUOISE.MC,742
LT.PURPLE ME.OP.,931
DK.PURPLE MC.GR.,940
WHITE PM,049
SUPER WHITE 2,040
SILVER ME.,1C0
BLACK,202
SUPER RED II,3E5
CHAMPAGNE ME.,583
DK.GREEN MC.,6R4
LT.AQUA ME.OP.,761
BLUE MC.,8M6
76851COVER, FRONT SPOILER
WHITE P.M.,049
SILVER ME.,199 ,2DW
BLACK ME.,205
SUPER RED 2,3E5
DK.TURQUISE MC.,742
76853ARETAINER, FRONT SPOILER, UPPER NO.1
76872PROTECTOR, REAR SPOILER, NO.1
76872BPROTECTOR, REAR SPOILER, CENTER
76873APROTECTOR, REAR SPOILER, RH
76874BPROTECTOR, REAR SPOILER, LH
76877APROTECTOR, FRONT SPOILER
GRAY,049 ,199 ,2DW
BLACK,205 ,3E5 ,742
76879CLIP, REAR SPOILER, NO.1
76891SPOILER, REAR NO.1
WHITE P.M.,049
SILVER ME.,199 ,2DW
BLACK ME.,205
SUPER RED 2,3E5
DK.TURQUISE MC.,742
WHITE P.M.,049
SILVER ME.,199 ,2DW
BLACK ME.,205
SUPER RED 2,3E5
DK.TURQUISE MC.,742
MARK = 76891-46030,DK.GREEN MC.,6R4
76895PROTECTOR, REAR SPOILER, NO.5
GRAY,049 ,199 ,2DW
BLACK,205 ,3E5 ,742
76911AMUDGUARD, FENDER PANEL, RH
WHITE P.M.,049
SUPER WHITE 2,040
SILVER ME.,199 ,2DW
SILVER ME.,1C0
BLACK ME.,205
BLACK,202
SUPER RED 2,3E5
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
DK.TURQUISE MC.,742
LT.AQUA ME.OP.,761
BLUE MC.,8M6
76912CMUDGUARD, FENDER PANEL, LH
WHITE P.M.,049
SUPER WHITE 2,040
SILVER ME.,199 ,2DW
SILVER ME.,1C0
BLACK ME.,205
BLACK,202
SUPER RED 2,3E5
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
DK.TURQUISE MC.,742
LT.AQUA ME.OP.,761
BLUE MC.,8M6
76921BPROTECTOR, SIDE MUDGUARD, NO.1
76922DPROTECTOR, SIDE MUDGUARD, NO.2
76923ARETAINER, SIDE MUDGUARD
76924ARETAINER, SIDE MUDGUARD, NO.2
76925EPROTECTOR, SIDE MUDGUARD, FRONT RH
GRAY,049 ,199 ,2DW
BLACK,202 ,3E5 ,6R4 ,8M6
76926EPROTECTOR, SIDE MUDGUARD, FRONT LH
GRAY,040 ,049 ,1C0
BLACK,202 ,3E5 ,6R4 ,8M6
76927APROTECTOR, SIDE MUDGUARD, REAR RH
GRAY,049 ,199 ,2DW
BLACK,205 ,3E5 ,742
76928APROTECTOR, SIDE MUDGUARD, REAR LH
GRAY,049 ,199 ,2DW
BLACK,205 ,3E5 ,742
76931RETAINER, SIDE MUDGUARD, NO.3
8117CENTER STOP LAMP
7692146010BELT, SIDE SEAT, REAR
main76921-46010
7692246010LINK, SIDE SEAT, REAR
main76922-46010
9011306010
main90113-06010
9015950203
main90159-50203
9015950222
main90159-50222
9015960128
main90159-60128
9015960358
main90159-60358
9015960364
main90159-60364
9015960549
main90159-60549
9017606041
main90176-06041
9017905095
main90179-05095
9017906115
main90179-06115
9017906140
main90179-06140
9018305038
main90183-05038
9018906006
main90189-06006
9018906157
main90189-06157
91515G0616
main91515-G0616
9326056020
main93260-56020
46 parts on this diagram · 3 diagrams in section
