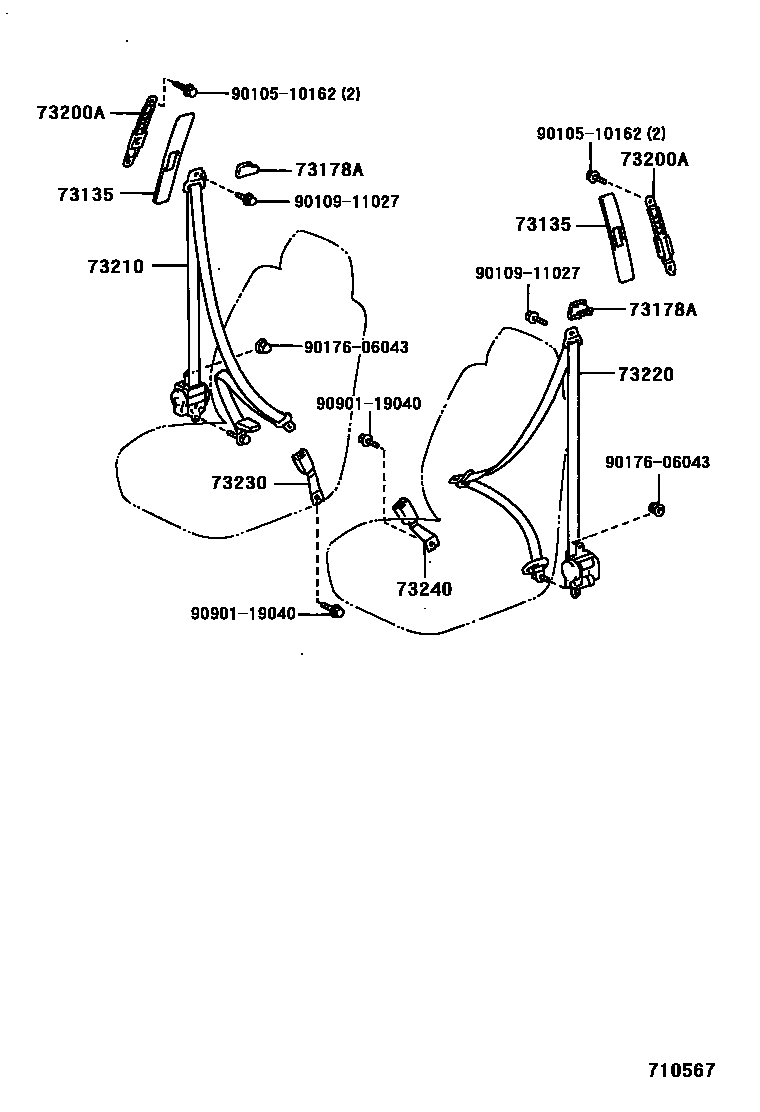

SEAT BELT & CHILD RESTRAINT SEAT

0001 1�����-� 0002 1���-�

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-12030-A0×2iEXZ1#..SEPA200204

main73135-12030-B5×2iEXZ1#199705-199907

LT.BLUISH GRAY,TRIM1#

main73135-12030-B8×2iEXZ1#199907-199908

LT. GRAY,TRIM1#

main73135-12030-B9×2iEXZ1#199908

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33010-B2×2iEXZ1#199705-199907

LT.BLUISH GRAY,TRIM1#

main73178-33010-B4×2iEXZ1#199907-200008

LT.GRAY,TRIM1#

main73178-33020-A1×2iEXZ1#..SEPA200204

main73178-33020-B3×2iEXZ1#200008

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12050-A0×2iEXZ1#..SEPA200204

main73200-12050-B3×2iEXZ1#199705-199907

LT.BLUISH GRAY,TRIM1#

main73200-12050-B6×2iEXZ1#199907

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-46010-B1iEXZ1#199705-199907

BLUISH GRAY,TRIM1#

main73210-46020-C0iEXZ1#199907-200008

BLACK,TRIM1#

main73210-46030-C0iEXZ1#200008

main73210-46030-C1iEXZ1#..SEPA200204

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-46010-B1iEXZ1#199705-199907

BLUISH GRAY,TRIM1#

main73220-46030-C0iEXZ1#199907-200008

BLACK,TRIM1#

main73220-46040-C0iEXZ1#200008

main73220-46040-C1iEXZ1#..SEPA200204

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-46020-B0iEXZ1#199808-199907

main73230-46020-C0iEXZ1#199907

BLACK,TRIM1#

main73240-16220-B3iEXZ1#199705-199907

MD.MOON MIST,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-16220-B3iEXZ1#199705-199907

MD.MOON MIST,TRIM1#

main73240-46010-B0iEXZ1#199808-199907

main73240-46010-C0iEXZ1#199907

BLACK,TRIM1#

9010510162

main90105-10162

9010911027

main90109-11027

9017606043

main90176-06043

9090119040

main90901-19040

11 parts on this diagram · 2 diagrams in section
