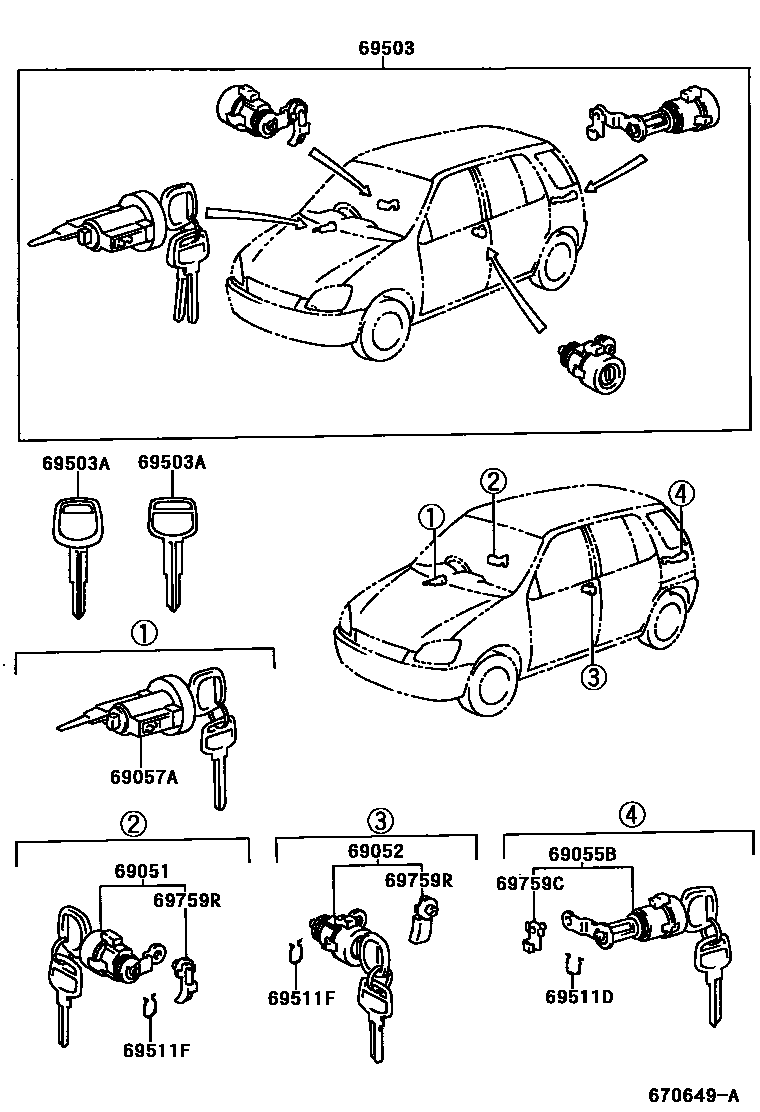

Toyota RAUM — LOCK CYLINDER SET
69055BCYLINDER & KEY SET, BACK DOOR LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503AKEY, BLANK
69511DRETAINER, BACK DOOR LOCK CYLINDER
69511FRETAINER, FRONT DOOR LOCK CYLINDER
69759CSNAP, BACK DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
10 parts on this diagram · 1 diagram in section
LOCK CYLINDER SET for Toyota RAUM
This section contains 10 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota RAUM. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
