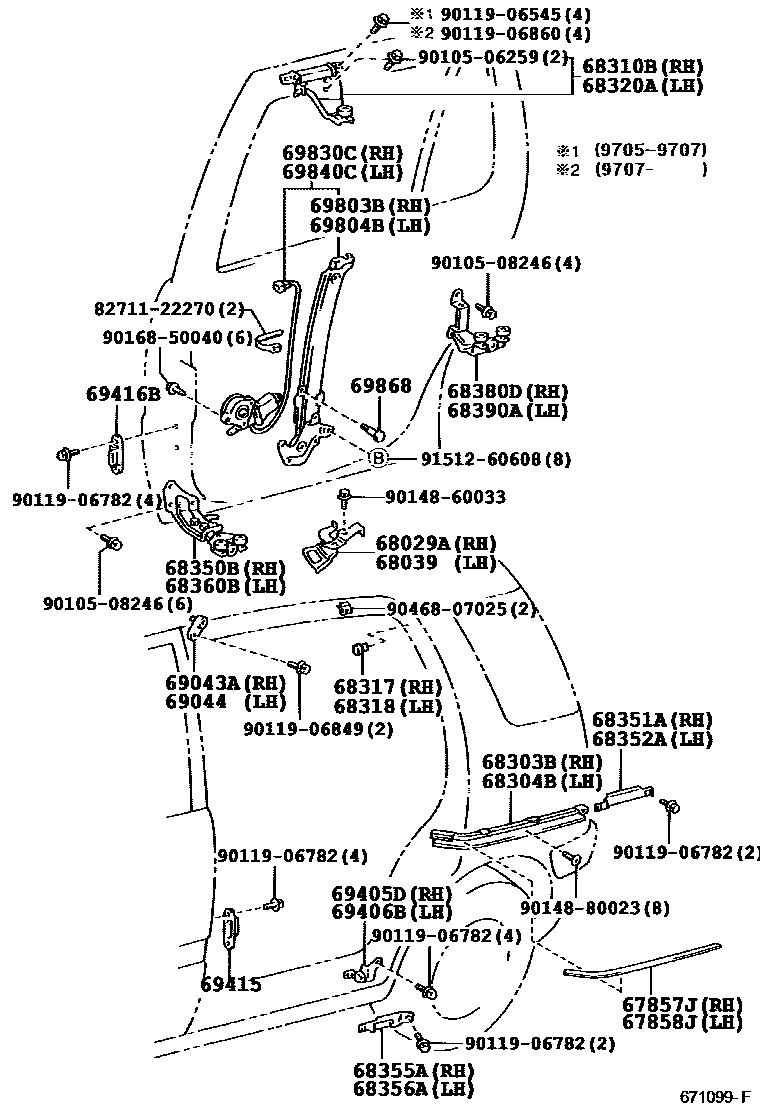

REAR DOOR WINDOW REGULATOR & HINGE
67857JPROTECTOR, SLIDE DOOR RAIL, RH
67858JPROTECTOR, SLIDE DOOR RAIL, LH
68029ABASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH
68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68310BROLLER ASSY, SLIDE DOOR, UPPER RH
68317STOPPER, SLIDE DOOR UPPER RAIL, RH
68318TRIM, SIDE DOOR UPPER RAIL
68320AROLLER ASSY, SLIDE DOOR, UPPER, LH
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68351APLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 RH
68352APLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 LH
68355APLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 RH
68356APLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 LH
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
68390AHINGE ASSY, SLIDE DOOR, CENTER LH
69043ASTOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE, RH
69044STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE, LH
69405DSTOP SUB-ASSY, SLIDE DOOR OPEN, RH
69406BSTOP SUB-ASSY, SLIDE DOOR OPEN, LH
69415STOPPER, SLIDE DOOR DOWN FEMALE
69416BSTOPPER, SLIDE DOOR DOWN MALE
69803BREGULATOR SUB-ASSY, SLIDE DOOR WINDOW, RH
69804BREGULATOR SUB-ASSY, SLIDE DOOR WINDOW, LH
69830CREGULATOR ASSY, SLIDE DOOR WINDOW, RH
69840CREGULATOR ASSY, SLIDE DOOR WINDOW, LH
69868PIN, DOOR WINDOW REGULATOR ROLLER
8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22270
9010506259
main90105-06259
9010508246
main90105-08246
9011906545
main90119-06545
9011906782
main90119-06782
9011906849
main90119-06849
9011906860
main90119-06860
9014860033
main90148-60033
9014880023
main90148-80023
9016850040
main90168-50040
9046807025
main90468-07025
9151260608
main91512-60608
41 parts on this diagram · 1 diagram in section
