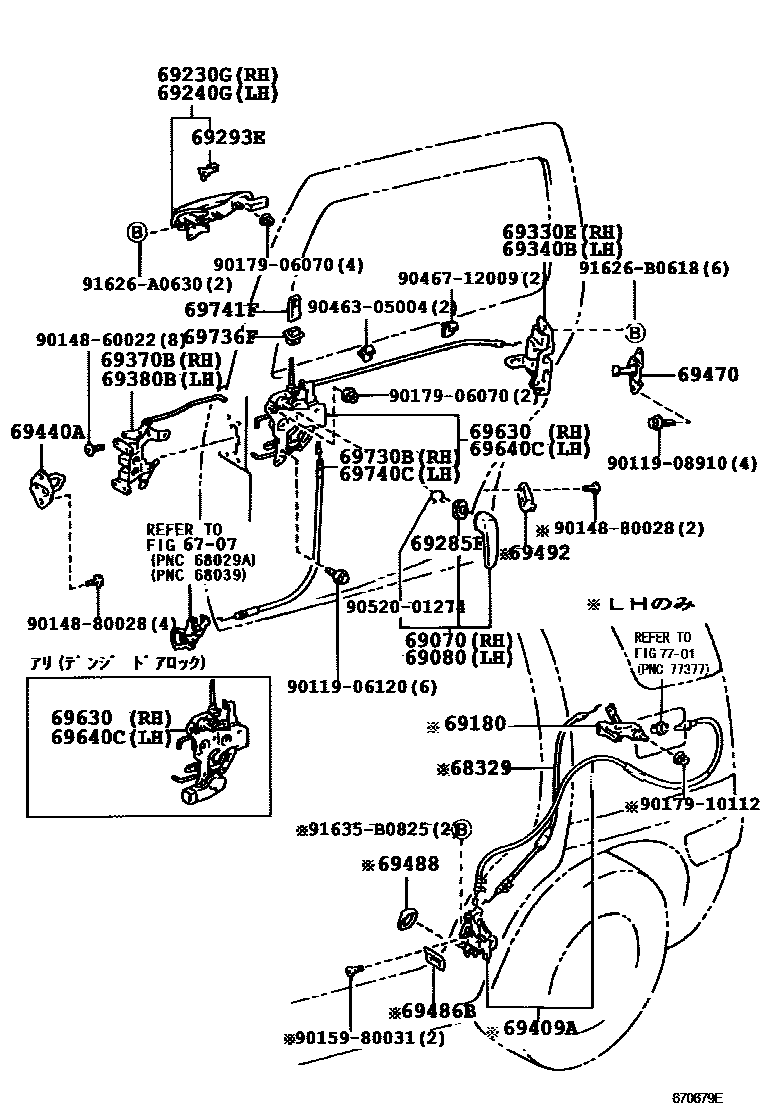

REAR DOOR LOCK & HANDLE

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

68329CABLE, SLIDE DOOR HALF OPEN STOPPER

main68329-46010i199705

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-46010-B0i199705-199808

MD.MOON MIST,TRIM1#

main69070-46011-B0i199808-199907

MD.MOON MIST,TRIM1#

main69070-46011-B1i199907

DK.GRAY,TRIM1#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-46010-B0i199705-199808

MD.MOON MIST,TRIM1#

main69080-46011-B0i199808-199907

MD.MOON MIST,TRIM1#

main69080-46011-B1i199907

DK.GRAY,TRIM1#

69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-46010i199705

69230GHANDLE ASSY, SLIDE DOOR OUTSIDE, RH

main69230-46010i199705

main69230-46020-A0i200105

WHITE PEARL MC.,049; WHITE PEARL MC.,049 ,2HX

main69230-46020-A1i199907

SUPER WHITE 2,040

main69230-46020-B0i199808-199907

SILVER ME,199

main69230-46020-B1i199907

SILVER ME.,1C0

main69230-46020-C0i199808-199907

BLACK ME,205

main69230-46020-C1i199907

BLACK,202

main69230-46020-D0i199808-200204

SUPER RED II,3E5

main69230-46020-D1i200112-200204

main69230-46020-F1i199804-199811

main69230-46020-F2i200204

CHAMPAGNE ME.,583

main69230-46020-G0i199907-200204

DK.GREEN MC.,6R4

main69230-46020-H0i199812-199907

DK.TURQUOISE.MC,742

main69230-46020-H1i200204

LT.AQUA ME.OP.,761

main69230-46020-J0i199804-199811

main69230-46020-J1i199810-199812

main69230-46020-J2i199907

BLUE MC.,8M6

main69230-46020-K0i199808-199907

DK.PURPLE MC.GR.,2DW

69240GHANDLE ASSY, SLIDE DOOR, OUTSIDE LH

main69240-46010i199705

main69240-46020-A0i200105

WHITE PEARL MC.,049; WHITE PEARL MC.,049 ,2HX

main69240-46020-A1i199907

SUPER WHITE 2,040

main69240-46020-B0i199808-199907

SILVER ME,199

main69240-46020-B1i199907

SILVER ME.,1C0

main69240-46020-C0i199808-199907

BLACK ME,205

main69240-46020-C1i199907

BLACK,202

main69240-46020-D0i199808-200204

SUPER RED II,3E5

main69240-46020-D1i200112-200204

main69240-46020-F1i199804-199811

main69240-46020-F2i200204

CHAMPAGNE ME.,583

main69240-46020-G0i199907-200204

DK.GREEN MC.,6R4

main69240-46020-H0i199812-199907

DK.TURQUOISE.MC,742

main69240-46020-H1i200204

LT.AQUA ME.OP.,761

main69240-46020-J0i199804-199811

main69240-46020-J1i199810-199812

main69240-46020-J2i199907

BLUE MC.,8M6

main69240-46020-K0i199808-199907

DK.PURPLE MC.GR.,2DW

69285FPLATE, REAR DOOR VENT WINDOW CONTROL HANDLE

main69285-22010-08i199705

NATURAL WHITE,TRIM1#

69293ESNAP, SLIDE DOOR LOCK CONTROL LINK

main69759-14050i199705

main69759-24070i199705

69330ELOCK ASSY, SLIDE DOOR, RH

main69330-46010i199705

69340BLOCK ASSY, SLIDE DOOR, LH

main69340-46010i199705

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-46010i199705

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-46010i199705

69409ASTOPPER SUB-ASSY, SLIDE DOOR HALF OPEN

main69409-46010i199705-199908

main69409-46011i199908-199911

main69409-46012i199911

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-46010×2i199705

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-46010×2i199705

69486BCOVER, SLIDE DOOR HALF OPEN STOPPER

main69486-46010i199705

69488SEAL, SLIDE DOOR HALF OPEN STOPPER COVER

main69488-46010i199705

69492STOPPER, SLIDE DOOR HALF OPEN

main69492-46010i199705

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-46010i199705-199808

main69630-46011i199808-199907

main69630-46020i199705-199808

main69630-46021i199808

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-46010i199705-199808

main69640-46011i199808-199907

main69640-46020i199705-199808

main69640-46021i199907

69730BCABLE ASSY, SLIDE DOOR LOCK REMOTE CONTROL, RH

main69730-46010i199705

69736FGUIDE, SLIDE DOOR LOCKING LINK

main69736-16040×2i199705

69740CCABLE ASSY, SLIDE DOOR LOCK REMOTE CONTROL, LH

main69730-46010i199705

69741FKNOB, SLIDE DOOR LOCK CONTROL

main69741-90K00-B4×2i199705-199907

MD. MOON MIST,TRIM1#

main69741-90K00-B9×2i199907

DK.GRAY,TRIM1#

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906120

main90119-06120

9011908910

main90119-08910

9014860022

main90148-60022

9014880028

main90148-80028

9015980031

main90159-80031

9017906070

main90179-06070

9017910112

main90179-10112

9046305004

main90463-05004

9046712009

main90467-12009

9052001274

main90520-01274

91626A0630

main91626-A0630

91626B0618

main91626-B0618

91635B0825

main91635-B0825

39 parts on this diagram · 1 diagram in section
