SIDE MEMBER

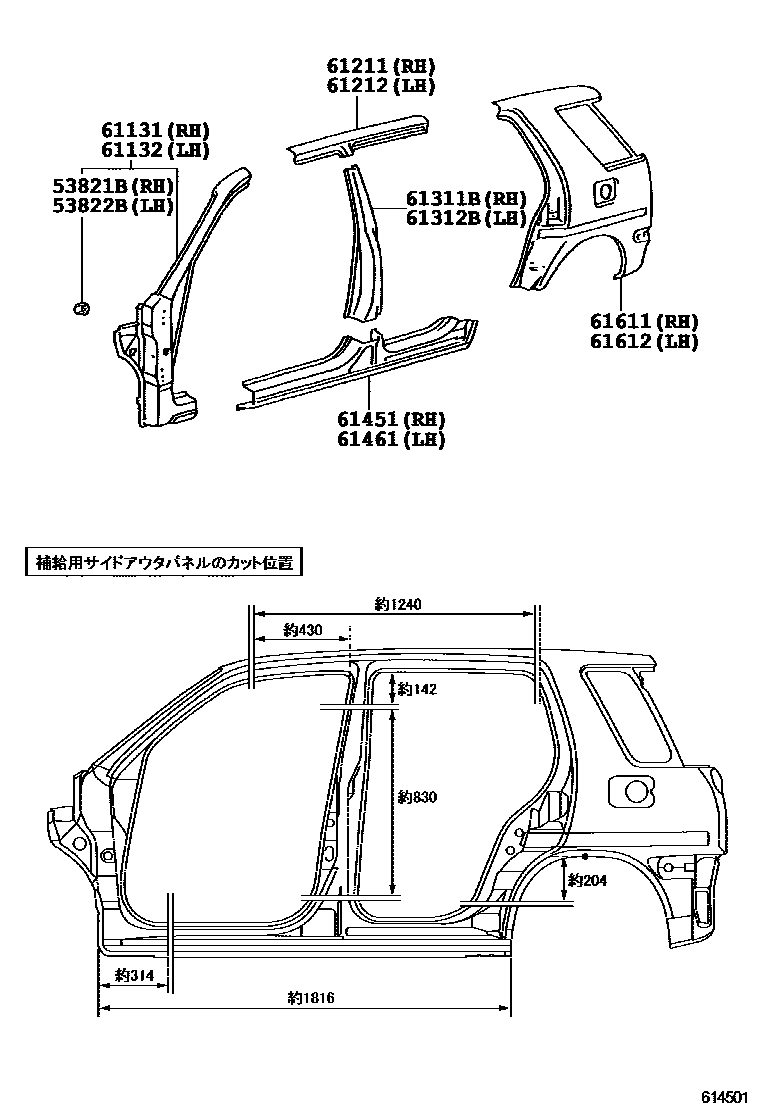

Parts diagram

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010i199705

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010i199705

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-46010i199705

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-46010i199705

61211RAIL, ROOF SIDE, OUTER RH

main61211-46010i199705

61212RAIL, ROOF SIDE, OUTER LH

main61212-46010i199705

61311BPILLAR, CENTER BODY, OUTER RH

main61311-46010i199705

61312BPILLAR, CENTER BODY, OUTER LH

main61312-46010i199705

61451PANEL, ROCKER, OUTER RH

main61451-46010i199705

61461PANEL, ROCKER, OUTER LH

main61461-46010i199705

61611PANEL, QUARTER, RH

main61601-46010i199705-199907

main61601-46020i199907

61612PANEL, QUARTER, LH

main61602-46010i199705-199907

main61602-46020i199907

12 parts on this diagram · 2 diagrams in section
