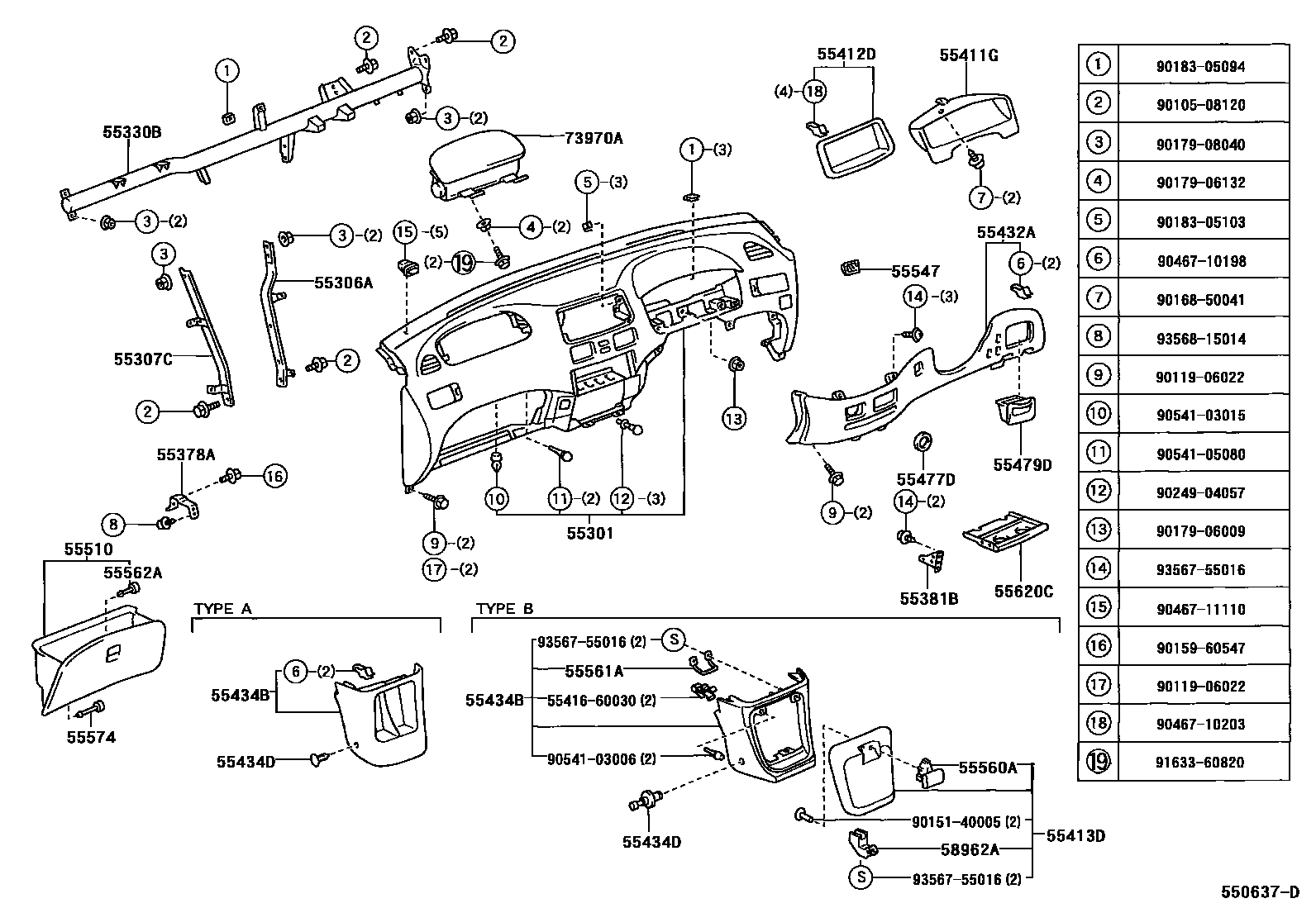

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-46010-B0iEXZ1#199705-199907

MD.MOON MIST,TRIM1#

main55301-46010-B1iEXZ1#199907

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-46010iEXZ1#199705

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-46010iEXZ1#199705

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-46010iEXZ1#199705

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-46010iEXZ1#199705

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-46010iEXZ1#199705

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-46010iEXZ1#199705-199907

main55411-46011iEXZ1#199907

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-46010iEXZ1#199705

main55412-46020iEXZ1#199705-199907

main55412-46031iEXZ1#199812-199907

main55412-46041iEXZ1#199812-199907

main55412-46050iEXZ1#199907

main55412-46060iEXZ1#..SEPA199912-200204

main55412-46070iEXZ1#..SEPA199912-200204

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-46010-A0iEXZ1#..SEPA199907

main55413-46010-B0iEXZ1#199907

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-46010-B0iEXZ1#199705-199907

LT.BLUISH GRAY,TRIM1#

main55432-46010-B1iEXZ1#..FD,SEPA199907-200204

main55432-46010-B2iEXZ1#..PB,SEPA199907-200204

main55432-46011-B1iEXZ1#200204

main55432-46011-B2iEXZ1#200204

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-46010-A0iEXZ1#..SEPA199907

main55434-46010-B0iEXZ1#199705-199907

main55434-46010-B1iEXZ1#199907

main55434-46020-A0iEXZ1#..SEPA199907

main55434-46020-B0iEXZ1#199907

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90467-07071-A0×2iEXZ1#..SEPA199907

main90467-07071-B8×2iEXZ1#199705-199907

MD.MOON MIST,TRIM1#

main90467-07071-P1×2iEXZ1#199907

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-26030iEXZ1#199705

55479DGARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER

main55479-44010-B1iEXZ1#199705-199907

LT.BLUISH GRAY,TRIM1#

main55479-44010-B4iEXZ1#..FD,SEPA199907

main55479-44010-B5iEXZ1#..PB,SEPA199907

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-46010-B0iEXZ1#199705-199907

LT.BLUISH GRAY,TRIM1#

main55550-46010-B1iEXZ1#..FD,SEPA199907

main55550-46010-B2iEXZ1#..PB,SEPA199907

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-46010-B0iEXZ10199705-199907

MD. MOON MIST,TRIM1#

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-12080-A0iEXZ1#..SEPA199907

main55560-12080-B9iEXZ1#199907

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-46010iEXZ1#199907

55562ALINK, GLOVE COMPARTMENT DOOR LOCK

main55562-10010×2iEXZ1#199705

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iEXZ1#199705

55620CHOLDER, INSTRUMENT PANEL CUP

main55620-46010-B0iEXZ1#199705-199907

LT.BLUISH GRAY,TRIM1#

main55620-46010-B1iEXZ1#..FD,SEPA199907

main55620-46010-B2iEXZ1#..PB,SEPA199907

58962AHINGE, BOX DOOR FEMALE

main58962-46010×2iEXZ1#199907

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-46010-B0iEXZ1#199705-199907

MD.MOON MIST,TRIM1#

main73970-46010-B1iEXZ1#199907

DK.GRAY,TRIM1#

5541660030STOPPER,LIGHT CONTROL SWITCH

main55416-60030

9010508120

main90105-08120

9011906022

main90119-06022

9015140005

main90151-40005

9015960547

main90159-60547

9016850041

main90168-50041

9017906009

main90179-06009

9017906132

main90179-06132

9017908040

main90179-08040

9018305094

main90183-05094

9018305103

main90183-05103

9024904057

main90249-04057

9046710198

main90467-10198

9046710203

main90467-10203

9046711110

main90467-11110

9054103006

main90541-03006

9054103015

main90541-03015

9054105080

main90541-05080

9163360820

main91633-60820

9356755016

main93567-55016

9356815014

main93568-15014

44 parts on this diagram · 2 diagrams in section
