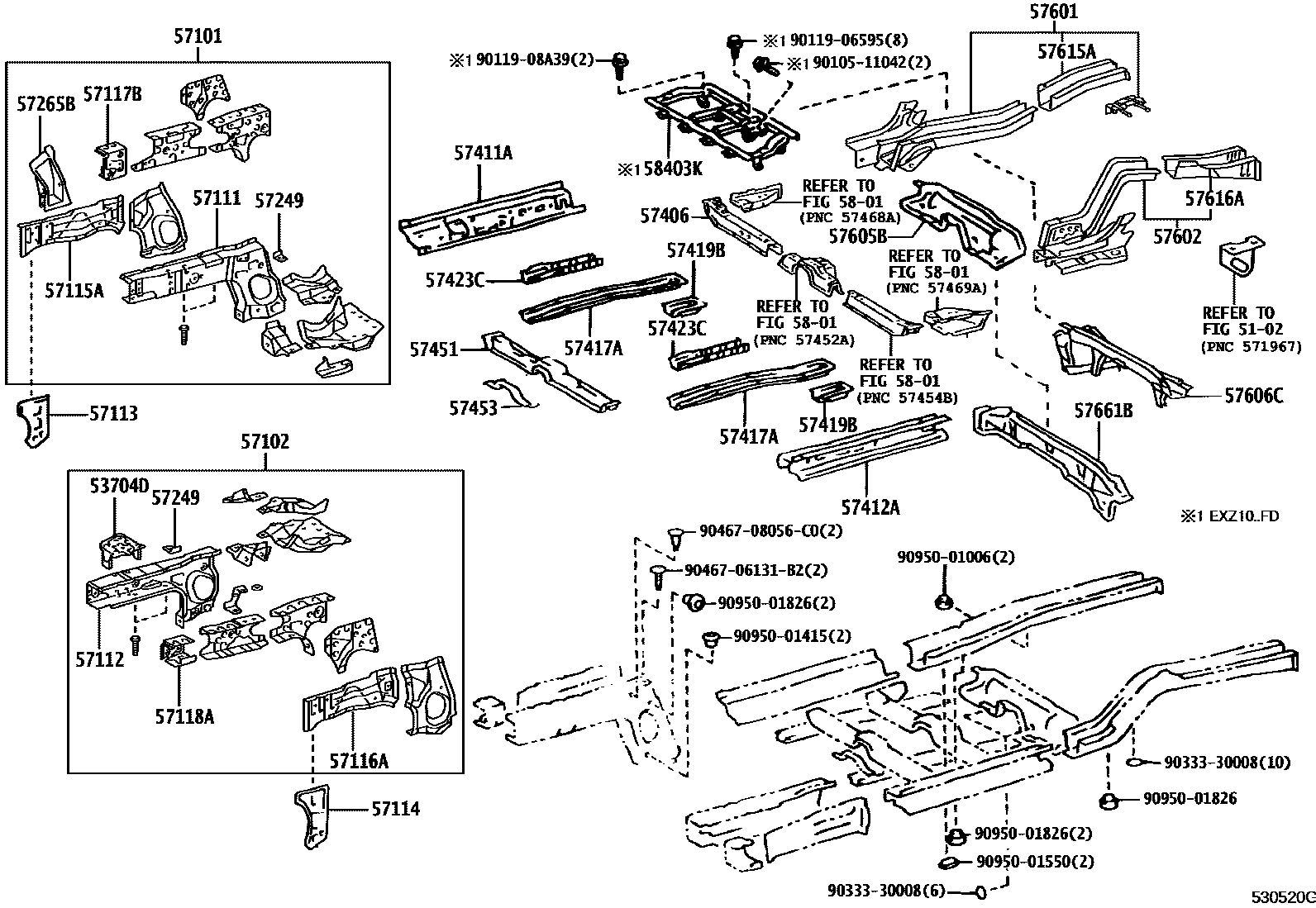

FLOOR SIDE MEMBER

0001 1 0002 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-16020iEXZ1#199705

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-16200iEXZ10199705-199706

main57101-16260iEXZ1#199706

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-16290iEXZ10199705-199706

main57102-16291iEXZ1#199706

57111MEMBER, FRONT SIDE, RH

main57111-16130iEXZ10199705-199706

main57111-16131iEXZ1#199706

57112MEMBER, FRONT SIDE, LH

main57112-16150iEXZ10199705-199706

main57112-16151iEXZ1#199706

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-16060iEXZ1#199705

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-16060iEXZ1#199705

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-16080iEXZ1#199705

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-16080iEXZ1#199705

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-16060iEXZ1#199707

main57117-16070iEXZ10199705-199707

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-16060iEXZ1#199707

main57118-16070iEXZ10199705-199707

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iEXZ1#199705

57265BBRACKET, ENGINE MOUNTING, RH

main57265-16030iEXZ1#199705

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-46010iEXZ10199705

main57406-46020iEXZ15199708

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-46010iEXZ1#199705

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-46010iEXZ1#199705

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-16010×2iEXZ1#199705

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-46010×2iEXZ1#199705

57423CREINFORCEMENT, FRONT FLOOR UNDER, INNER

main57423-46010×2iEXZ1#199705

57451MEMBER, FRONT FLOOR CROSS

main57408-16040iEXZ1#199705

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-10021iEXZ10199705

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-46010iEXZ10199705

main57601-46020iEXZ15199708

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-46010iEXZ10199705

main57602-46020iEXZ15199708

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-46010iEXZ10199705

main57605-46020iEXZ15199708

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-10100iEXZ15199708

main57606-16110iEXZ10199705

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-16916iEXZ10199705

main57615-16918iEXZ15199708

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-16912iEXZ10199705

main57616-16914iEXZ15199708

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-46010iEXZ10..PB,SEPA199705

main57661-46020iEXZ10..FD199907-200204

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58403KREINFORCEMENT SUB-ASSY, DECK BOARD

main58403-46010iEXZ10..FD199907-200204

9010511042

main90105-11042

9011906595

main90119-06595

9011908A39

main90119-08A39

9033330008

main90333-30008

9046706131B2

main90467-06131B2

9046708056C0

main90467-08056C0

9095001006

main90950-01006

9095001415

main90950-01415

9095001550

main90950-01550

9095001826

main90950-01826

41 parts on this diagram · 2 diagrams in section
