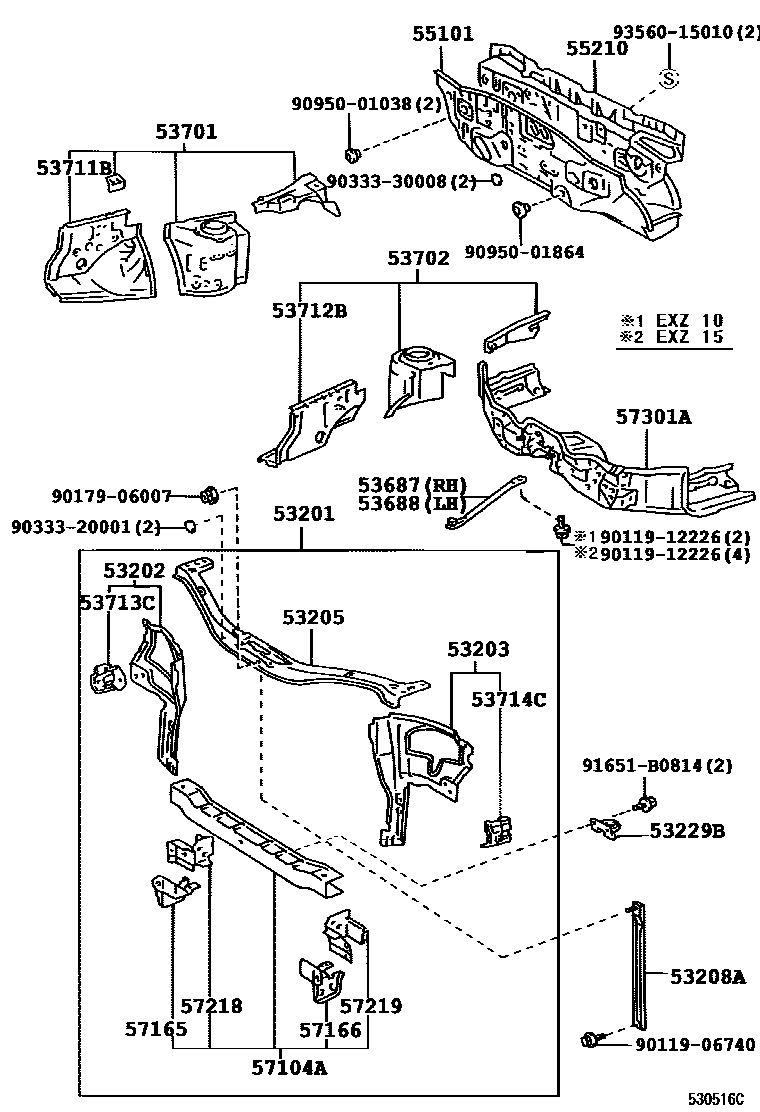

FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2
53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH
53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
55101PANEL SUB-ASSY, DASH
57104AMEMBER SUB-ASSY, FRONT CROSS
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57218GUSSET, FRONT SIDE MEMBER, NO.1
57219GUSSET, FRONT SIDE MEMBER, NO.2
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
9011906740
main90119-06740
9011912226
main90119-12226
9017906007
main90179-06007
9033320001
main90333-20001
9033330008
main90333-30008
9095001038
main90950-01038
9095001864
main90950-01864
91651B0814
main91651-B0814
9356015010
main93560-15010
31 parts on this diagram · 1 diagram in section
