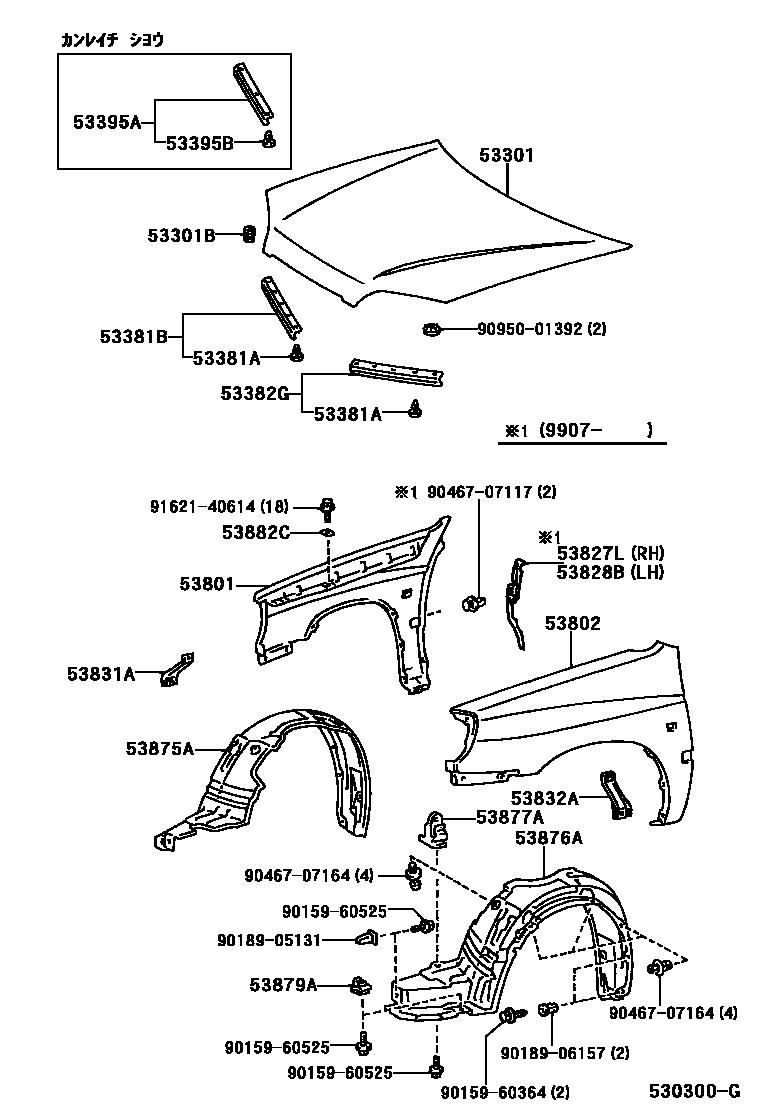

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-46010iEXZ1#199705

53301BCUSHION, HOOD BUMPER

main90541-15021×2iEXZ1#199705

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×10iEXZ1#199705

53381BSEAL, HOOD TO RADIATOR SUPPORT, RH

main53381-46010iEXZ1#199705

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-46010iEXZ1#199705

53395ASEAL, HOOD TO FRONT END PANEL, NO.1

main53395-46010iEXZ1#199705

53395BCLIP(FOR HOOD TO FRONT END PANEL SEAL)

main90467-08203×3iEXZ1#199705

53801FENDER SUB-ASSY, FRONT RH

main53811-46010iEXZ1#199705

53802FENDER SUB-ASSY, FRONT LH

main53812-46010iEXZ1#199705

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-46010iEXZ1#199907

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-46010iEXZ1#199907

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-46010iEXZ1#199705

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53831-46010iEXZ1#199705

53875ALINER, FRONT FENDER, RH

main53875-46010iEXZ1#199705-199907

main53875-46020iEXZ1#199907

53876ALINER, FRONT FENDER, LH

main53876-46010iEXZ1#199705-199907

main53876-46020iEXZ1#199907

53877ABRACKET, FRONT FENDER SPLASH SHIELD

main53877-16010×2iEXZ1#199705

53879ARETAINER, FRONT FENDER LINER

main53879-16010×2iEXZ1#199705

53882CSEAL, FRONT FENDER MAIN

main53882-16030×2iEXZ1#199705

9015960364

main90159-60364

9015960525

main90159-60525

9018905131

main90189-05131

9018906157

main90189-06157

9046707117

main90467-07117

9046707164

main90467-07164

9095001392

main90950-01392

9162140614

main91621-40614

26 parts on this diagram · 1 diagram in section
