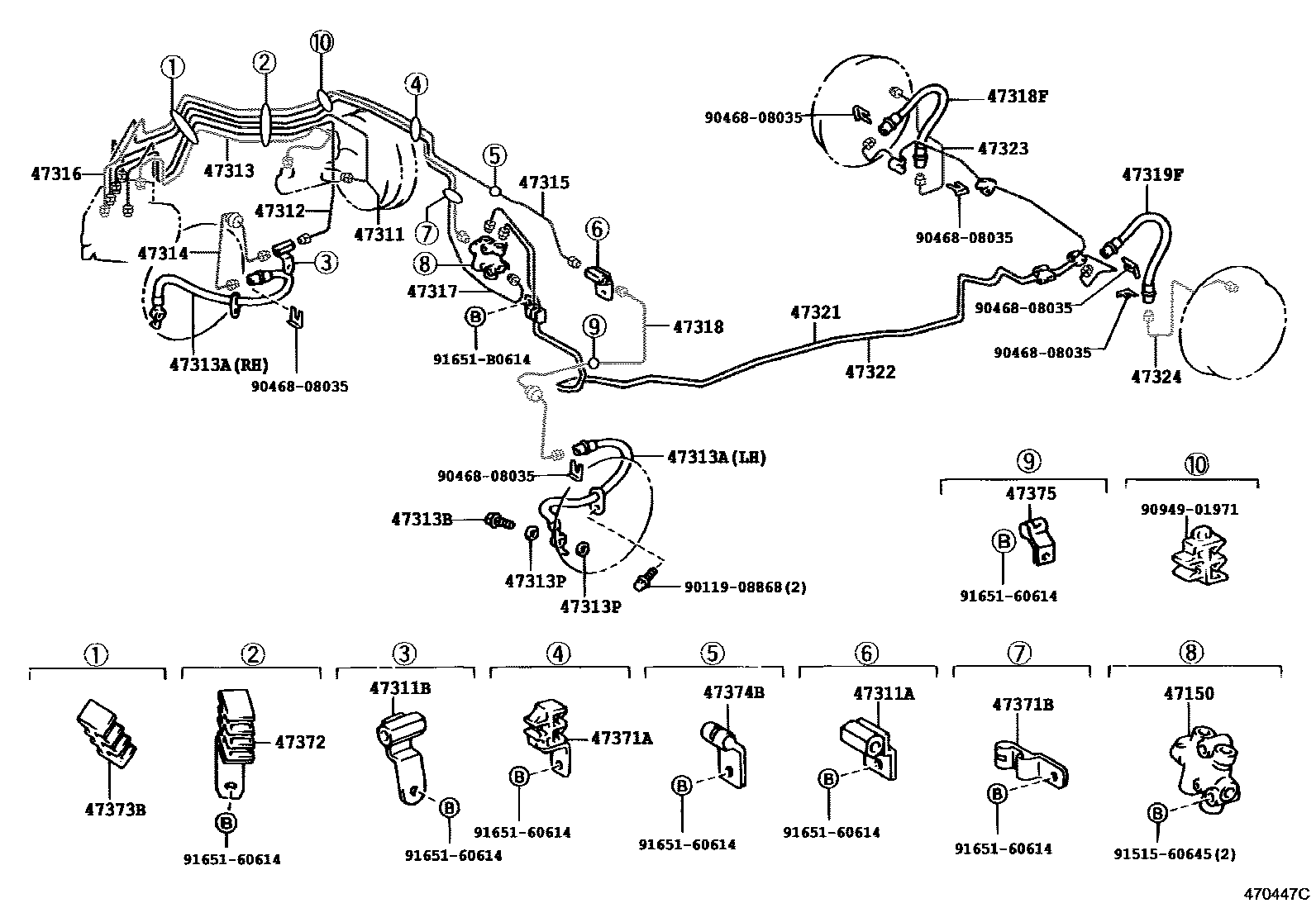

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47150VALVE ASSY, PROPORTIONING

main47150-33020iEXZ10199705

main47150-46010iEXZ15199708

47311TUBE, FRONT BRAKE, NO.1

main47311-46010iEXZ1#199705-199907

main47311-46030iEXZ1#199907

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10116iEXZ1#199705

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10169iEXZ1#199705

47312TUBE, FRONT BRAKE, NO.2

main47312-46010iEXZ1#199705-199907

main47312-46030iEXZ1#199907

47313TUBE, FRONT BRAKE, NO.3

main47313-46010iEXZ1#199705-199907

main47313-46030iEXZ1#199907

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02813iEXZ1#199705

main90947-02814iEXZ1#199705

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iEXZ1#199705

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iEXZ1#199705

47314TUBE, FRONT BRAKE, NO.4

main47314-10230iEXZ1#199705

47315TUBE, FRONT BRAKE, NO.5

main47315-46010iEXZ1#199705-199907

main47315-46030iEXZ1#199907

47316TUBE, FRONT BRAKE, NO.6

main47316-46010iEXZ1#199705-199907

main47316-46030iEXZ1#199907

47317TUBE, FRONT BRAKE, NO.7

main47317-46010iEXZ1#199705-199907

main47317-46030iEXZ1#199907

47318TUBE, FRONT BRAKE, NO.8

main47318-46010iEXZ1#199705

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02637iEXZ10199705

main90947-02796iEXZ15199708

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02637iEXZ10199705

main90947-02797iEXZ15199708

47321TUBE, REAR BRAKE, NO.1

main47321-46010iEXZ10199705

main47321-46020iEXZ15199708

47322TUBE, REAR BRAKE, NO.2

main47322-46010iEXZ10199705

main47322-46020iEXZ15199708

47323TUBE, REAR BRAKE, NO.3

main47323-16190iEXZ15199708

main47323-46010iEXZ10199705

47324TUBE, REAR BRAKE, NO.4

main47324-16180iEXZ15199708

main47324-46010iEXZ10199705

47371ACLAMP, BRAKE TUBE, NO.1

main47371-16050iEXZ1#199705

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01207iEXZ1#199705

47372CLAMP, BRAKE TUBE, NO.2

main47371-16060iEXZ1#199705-199907

main47371-46010iEXZ1#199907

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01969iEXZ1#199705

47374BCLAMP, BRAKE TUBE, NO.4

main90461-06055iEXZ1#199705

47375CLAMP, BRAKE TUBE, NO.5

main90461-06221iEXZ1#199705

9011908868

main90119-08868

9046808035

main90468-08035

9094901971

main90949-01971

9151560645

main91515-60645

9165160614

main91651-60614

91651B0614

main91651-B0614

32 parts on this diagram · 4 diagrams in section
