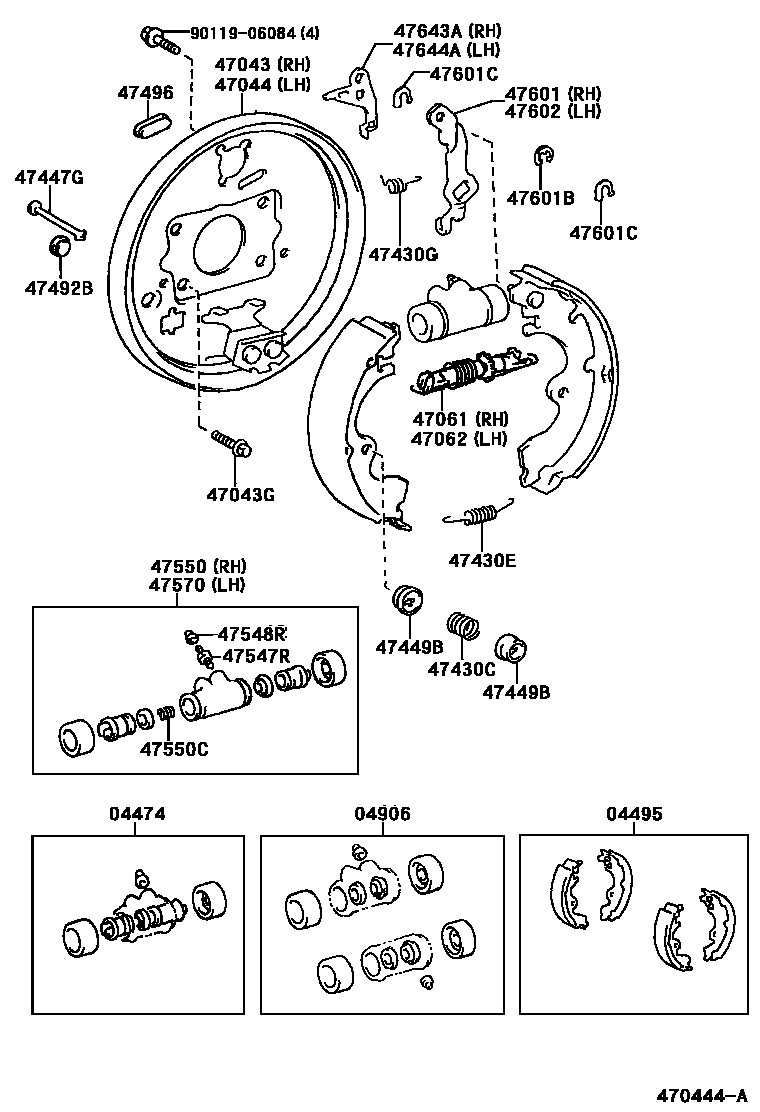

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-10032×2iEXZ15199708-200103

main04474-16020×2iEXZ10199705

main04474-63020×2iEXZ15200103

04495SHOE KIT, REAR BRAKE

main04495-12181iEXZ15199708

main04495-12210iEXZ10199705-199712

main04495-46010iEXZ10199712

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iEXZ15199708

main04906-16020iEXZ10199705

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-16030iEXZ15199708

main47043-46010iEXZ10199705

47043GBOLT (FOR BACKING PLATE TO REAR AXLE BEAM SETTING)

main90119-10455×8iEXZ10199705

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-16030iEXZ15199708

main47044-46010iEXZ10199705

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-12020iEXZ15199708

main47061-20020iEXZ10199705

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-12020iEXZ15199708

main47062-20020iEXZ10199705

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-10010×4iEXZ15199708

main90501-18017×4iEXZ10199705

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034×2iEXZ10199705

main90506-18299×2iEXZ15199708

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036×2iEXZ10199705

main90506-12276×2iEXZ15199708

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10010×4iEXZ15199708

main47447-30010×4iEXZ10199705

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030×8iEXZ10199705

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010×2iEXZ1#199705

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iEXZ1#199705

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iEXZ1#199705

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iEXZ1#199705

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-16060iEXZ10199705-199912

main47550-20170iEXZ15199708

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014×2iEXZ1#200103

main90501-07006×2iEXZ1#199705-200103

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-20170iEXZ15199708

main47570-16040iEXZ10199912

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iEXZ10199705

main47611-12050iEXZ15199708

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iEXZ10199705

main90564-08151iEXZ10199705

main90564-08152iEXZ10199705

main90564-08172iEXZ10199705

main90564-08173iEXZ10199705

main90564-08174iEXZ10199705

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iEXZ10199705

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iEXZ10199705

main47612-12050iEXZ15199708

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-12030iEXZ15199708

main47643-32010iEXZ10199705

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-12030iEXZ15199708

main47644-32010iEXZ10199705

9011906084

main90119-06084
