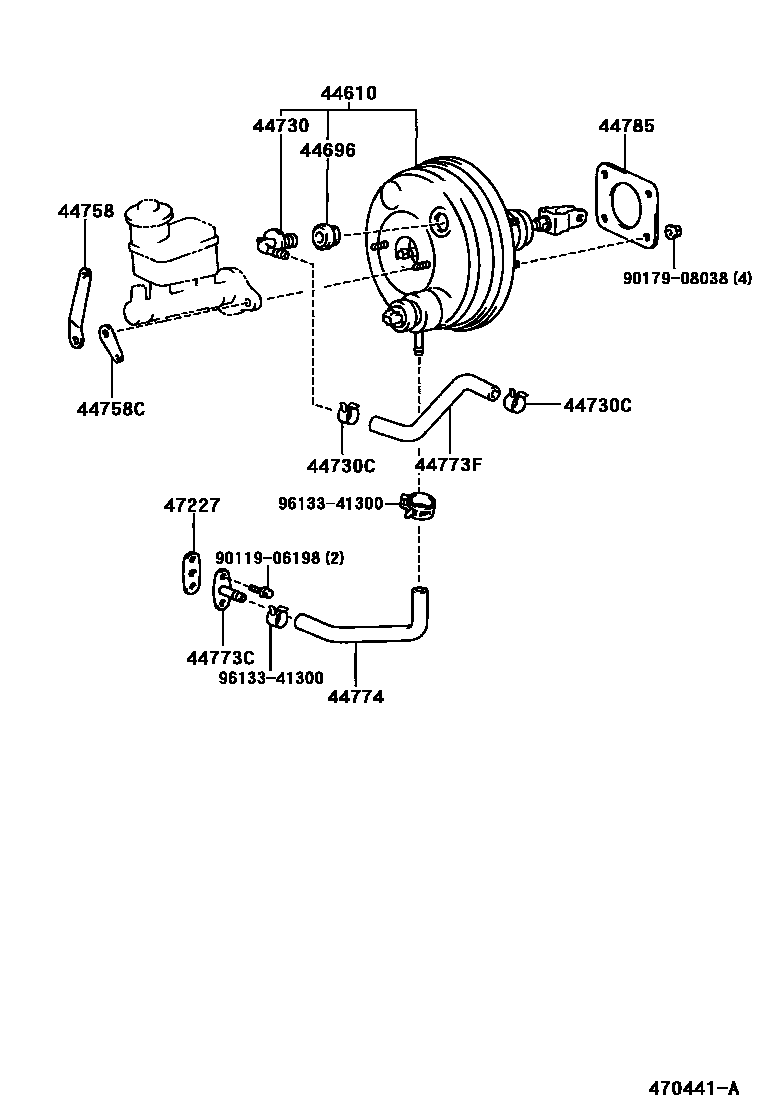

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-46010iEXZ1#199907

main44610-46020iEXZ1#199705-199907

44696GROMMET, CHECK VALVE

main90480-24439iEXZ1#199705

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iEXZ1#199705

44730CCLIP(FOR VACUUM HOSE)

main96134-51500×2iEXZ1#199705

44758BRACKET, VACUUM CHECK VALVE

main44758-46010iEXZ1#199705

44758CBRACKET, SOLENOID VALVE COVER

main44758-46020iEXZ1#199705-199907

44773CUNION, VACUUM HOSE(FOR VACUUM HOSE, NO.2)

main44759-46010iEXZ1#199705-199907

44773FHOSE, UNION TO CHECK VALVE

main44773-46010iEXZ1#199705

44774HOSE, UNION TO CONNECTOR TUBE

main44774-46010iEXZ1#199705-199907

44785GASKET, BRAKE BOOSTER

main44785-16020iEXZ1#199705

47227SEAL, BRAKE ASSIST UNION

main47227-46010iEXZ1#199705-199907

9011906198

main90119-06198

9017908038

main90179-08038

9613341300

main96133-41300

14 parts on this diagram · 2 diagrams in section
