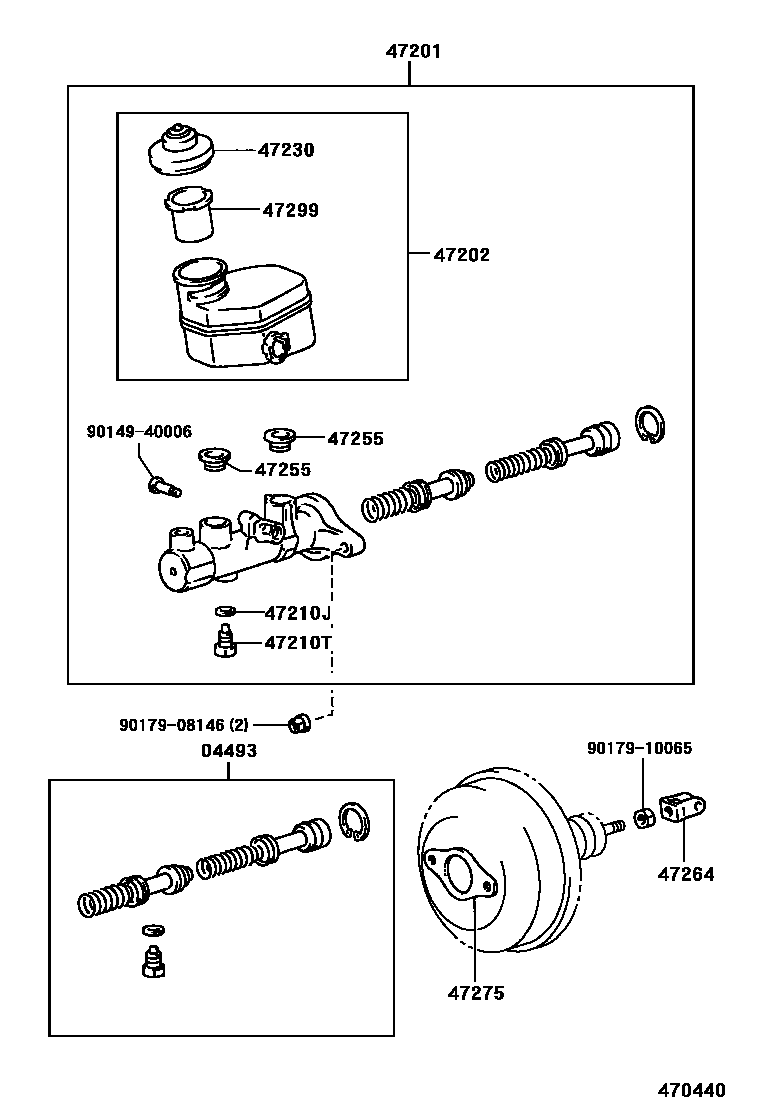

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-16080iEXZ1#199705-199907

main04493-16090iEXZ1#199907

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-46010iEXZ1#199705-199907

main47201-46031iEXZ1#199907

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-46010iEXZ1#199705

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iEXZ1#199907

main90430-06104iEXZ1#199705-199907

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iEXZ1#199705

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iEXZ1#199705

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iEXZ1#199705

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20060iEXZ1#199705

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iEXZ1#199705

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iEXZ1#199705

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

13 parts on this diagram · 1 diagram in section
