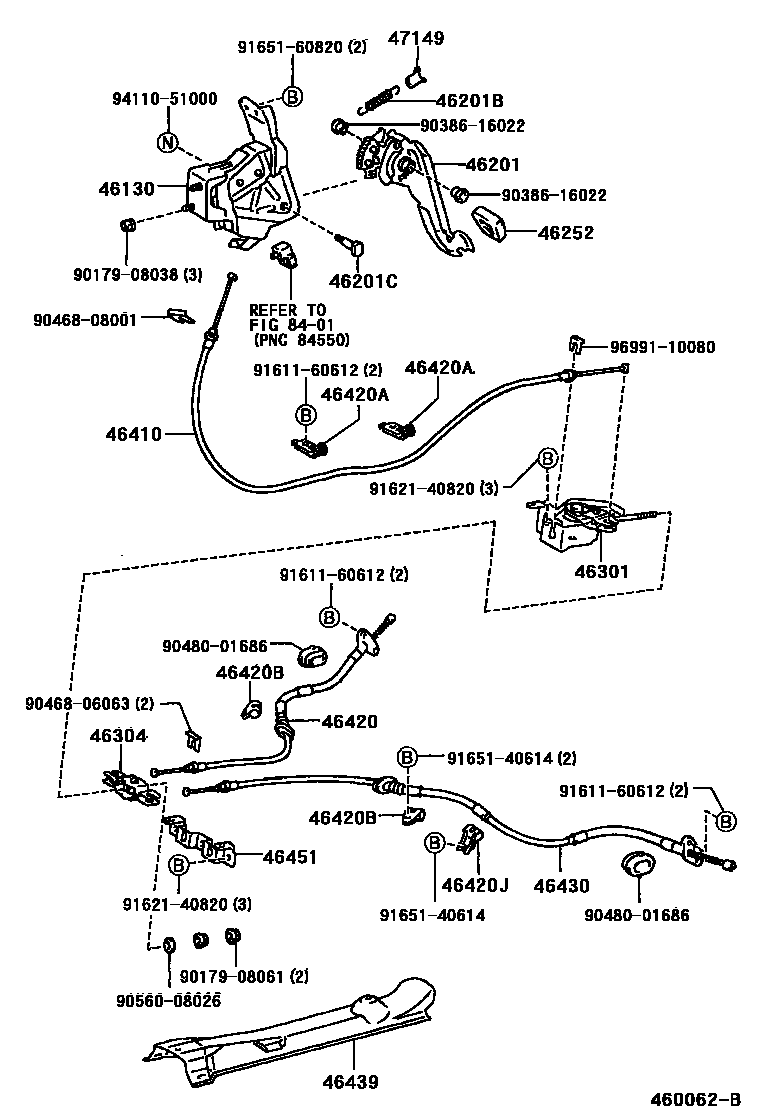

PARKING BRAKE & CABLE

0001 1 0002 1

46130BRACKET ASSY, PARKING BRAKE PEDAL

main46130-46010iEXZ1#199705

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-46010iEXZ1#199705

46201BSPRING, TENSION

main90506-19005iEXZ1#199705

46201CSHAFT, PEDAL

main90109-10033iEXZ1#199705

46252PAD, PARKING PEDAL

main46252-33010iEXZ1#199705

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-46010iEXZ1#199705

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-17020iEXZ1#199705

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-46010iEXZ1#199705

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-46010iEXZ10199705

main46420-46020iEXZ15199708

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01799×2iEXZ1#199705

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90461-10641×2iEXZ10199705

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01585iEXZ10199705

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-46010iEXZ10199705

main46430-46020iEXZ15199708

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-46010iEXZ10199705

46451BRACKET, CABLE SUPPORT

main46451-46010iEXZ1#199705

47149DAMPER, RETURN SPRING

main47149-22010iEXZ1#199705

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908038

main90179-08038

9017908061

main90179-08061

9038616022

main90386-16022

9046806063

main90468-06063

9046808001

main90468-08001

9048001686

main90480-01686

9056008026

main90560-08026

9161160612

main91611-60612

9162140820

main91621-40820

9165140614

main91651-40614

9165160820

main91651-60820

9411051000

main94110-51000

9699110080

main96991-10080

30 parts on this diagram · 2 diagrams in section
