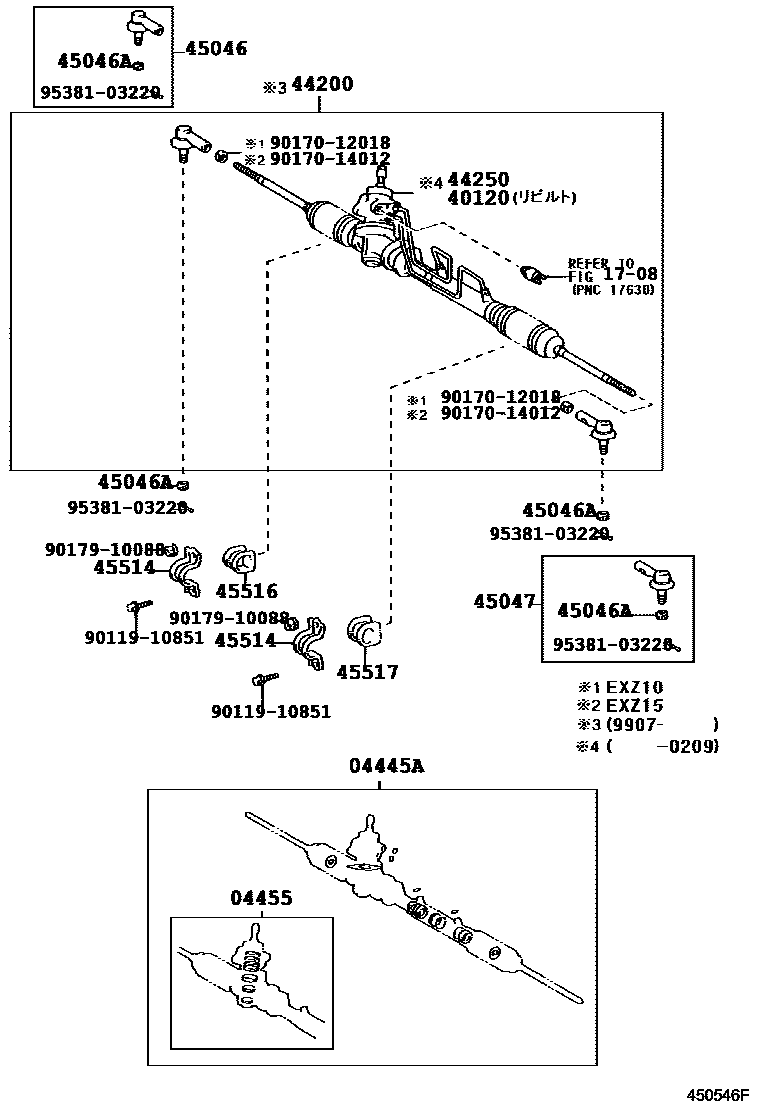

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-16110iEXZ1#199705

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10030iEXZ1#199705

1708VACUUM PIPING

→ Go to FIG 17-08

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-46011iEXZ10199705

main40120-46021iEXZ15199708

main40120-46031iEXZ10..SEPA199705

main40120-46041iEXZ15..SEPA199708

44200LINK ASSY, POWER STEERING

main44200-46011iEXZ10199907

main44200-46021iEXZ15199907

main44200-46031iEXZ10..SEPA199907

main44200-46041iEXZ15..SEPA199907

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-46010iEXZ10199705-199712

main44250-46011iEXZ10199712-200209

main44250-46020iEXZ15199708-199712

main44250-46021iEXZ15199712-200209

main44250-46030iEXZ10199705-199804

main44250-46031iEXZ10..SEPA199804-200209

main44250-46040iEXZ15199708-199804

main44250-46041iEXZ15..SEPA199804-200209

45046END SUB-ASSY, TIE ROD, RH

main45046-19206iEXZ10199705

main45046-49075iEXZ15199708

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iEXZ1#199705

45047END SUB-ASSY, TIE ROD, LH

main45046-19206iEXZ10199705

main45046-49075iEXZ15199708

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-46010iEXZ1#199705

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-16060iEXZ1#199705

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10070iEXZ1#199705

9011910851

main90119-10851

9017012018

main90170-12018

9017014012

main90170-14012

9017910088

main90179-10088

9538103220

main95381-03220

17 parts on this diagram · 2 diagrams in section
