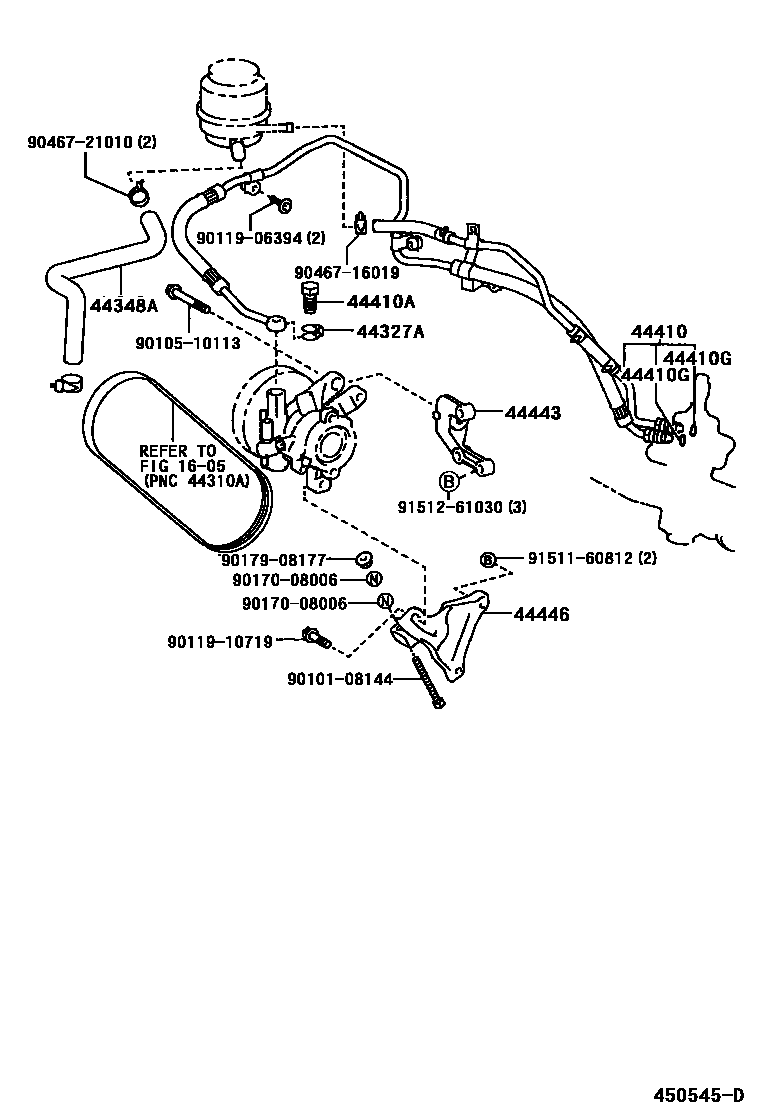

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEXZ1#199705

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-46010iEXZ1#199705

44410TUBE ASSY, PRESSURE FEED

main44410-46010iEXZ1#199705

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iEXZ1#199705

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×2iEXZ1#199705

44443BRACKET, PUMP

main44443-10030iEXZ1#199705

44446STRUT, ADJUSTING

main44446-16051iEXZ1#199705

9010108144

main90101-08144

9010510113

main90105-10113

9011906394

main90119-06394

9011910719

main90119-10719

9017008006

main90170-08006

9017908177

main90179-08177

9046716019

main90467-16019

9046721010

main90467-21010

9151160812

main91511-60812

9151261030

main91512-61030

18 parts on this diagram · 1 diagram in section
