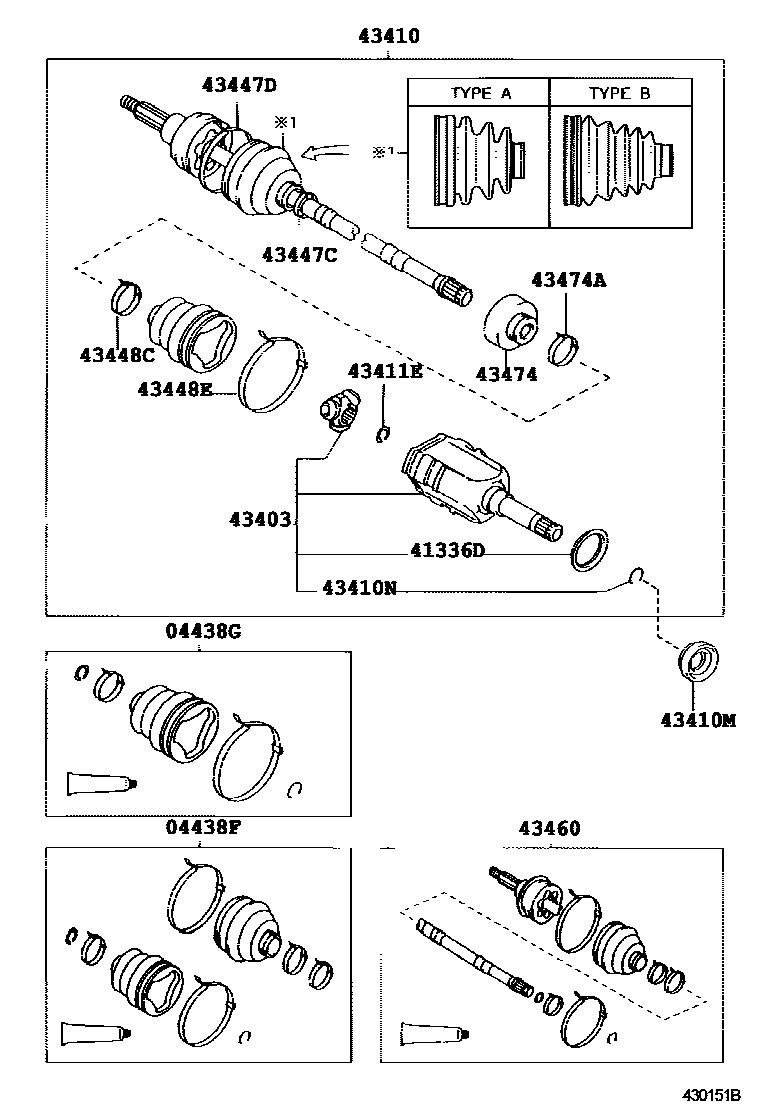

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12172i199708

main04438-16080i199705-199907

main04438-16081i199907-200204

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12410i199708

main04438-16070i199705-199907

main04438-16071i199907-200204

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010i199705-200204

main41336-16020i199708

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-16010i199708

main43403-10010i199705-199907

main43403-10011i199907-200204

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16171i199708-199709

main43410-16172i199709

main43410-16200i199705-199709

main43410-16201i199709-200204

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34012i199705-199802

main90311-34023i199802

main90316-33001i199708

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004i199705-200204

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001i199705-200204

main90520-22005i199708

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16010i199705-199907

main42345-52110i200012

main90949-01078i199907

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16020i199705-199907

main42345-52100i200012-200204

main90949-01080i199907-200204

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010i199705-199907

main90949-01078i199907-200202

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160i200202

main42345-16040i199708-199907

main42345-16080i199705-199907

main90949-01076i199907-200202

main90949-01146i199907

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19615i199705-199709

main43460-19616i199709-200204

main43470-19506i199708-199709

main43470-19507i199709

43474DAMPER, DRIVE SHAFT

main43474-20050i199705-200204

main43474-52030i200012-200204

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010i199907-200204

main42345-16030i199705-199907

15 parts on this diagram · 3 diagrams in section
