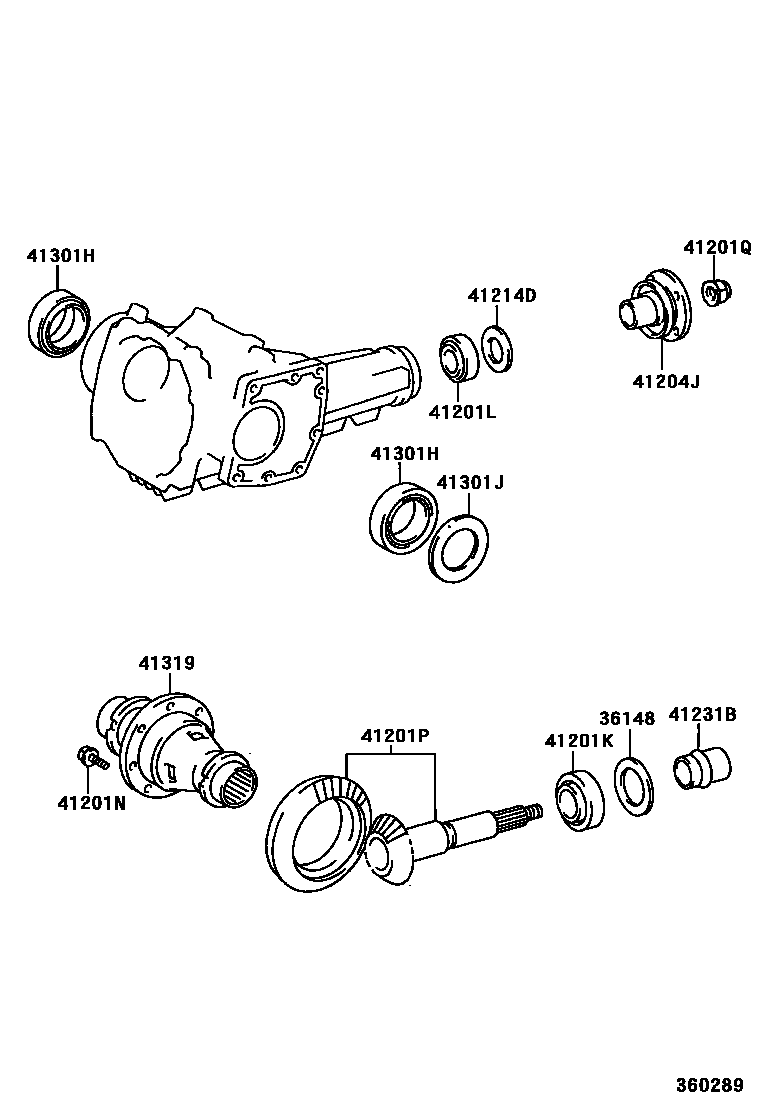

TRANSFER GEAR
36148SHIM, PINION BEARING CAGE
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201NBOLT (FOR TRANSFER GEAR )
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41204JFLANGE, CENTER DIFFERENTIAL DRIVE PINION COMPANION
41214DSLINGER, CENTER DIFFERENTIAL DRIVE PINION OIL
41231BSPACER, TRANSFER PINION BEARING
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41319CASE, TRANSFER RING GEAR MOUNTING
12 parts on this diagram · 1 diagram in section
