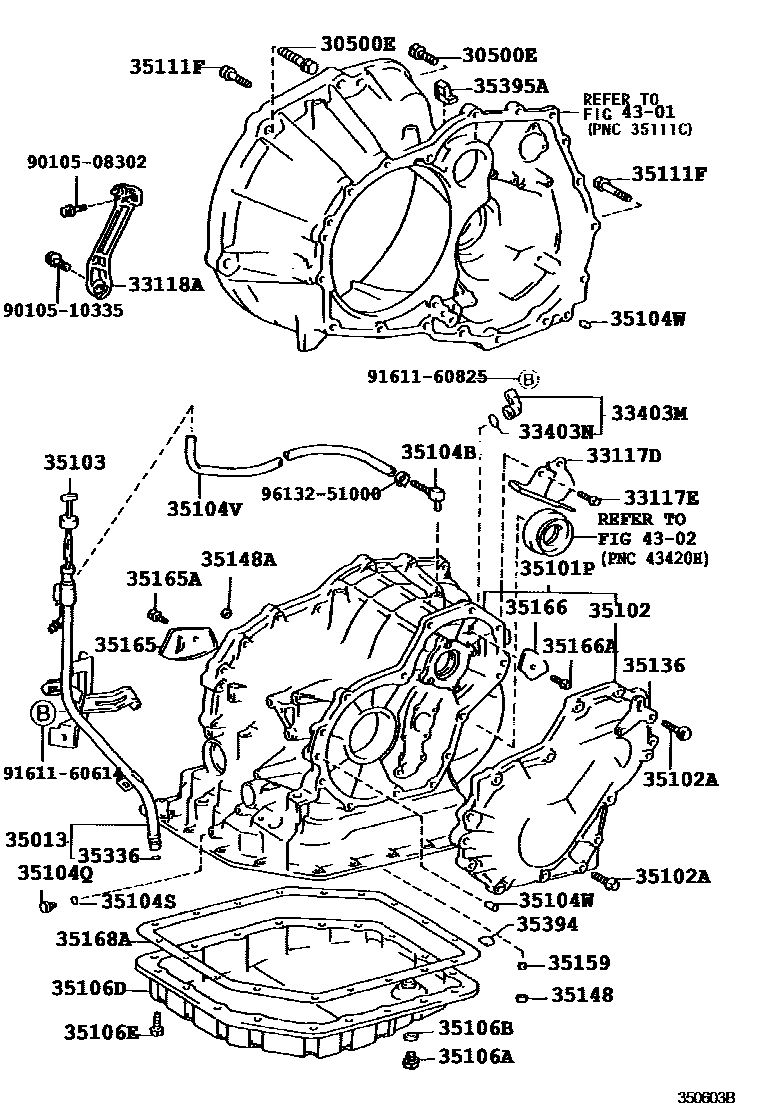

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A244L 0002 1A244F

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10097iEXZ1#199705

main90119-12168iEXZ1#199705

main91612-41025×2iEXZ15199708

main91619-61245×2iEXZ1#199705

main91621-60614×2iEXZ10199705

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iEXZ1#199705

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iEXZ1#199705

33118APLATE, STIFFENER, RH(ATM)

main33118-16020iEXZ10199705-199805

main33118-16030iEXZ10199805

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-35230iEXZ10199705

main33403-46010iEXZ15199708

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main90301-18018iEXZ15199708

main96711-24030iEXZ10199705

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-16210iEXZ15199708-199907

main35013-16230iEXZ10199705-199712

main35013-16231iEXZ10199712-199907

main35013-46010iEXZ10199907

main35013-46020iEXZ15199907

35101PCASE & COVER SUB-ASSY, TRANSAXLE

main35101-16022iEXZ1#199705

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-16031iEXZ1#199705

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08065×10iEXZ1#199705

main90105-08068×3iEXZ1#199705

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-16200iEXZ15199708-199907

main35103-16210iEXZ10199705-199712

main35103-16211iEXZ10199712-199907

main35103-46010iEXZ10199907

main35103-46020iEXZ15199907

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03101iEXZ1#199705

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iEXZ1#199705

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iEXZ1#199705

35104VHOSE (FOR BREATHER PLUG)

main90447-11030iEXZ10199705-199710

main90447-11037iEXZ15199708-199710

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10021×2iEXZ1#199705

main90250-11001×2iEXZ1#199705

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iEXZ1#199705

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iEXZ1#199705

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12070iEXZ1#200001

main35106-12110iEXZ1#199705-200001

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iEXZ1#199705

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065×10iEXZ1#199705

main90105-08066iEXZ1#199705

main90105-08068×5iEXZ1#199705

main90105-08071×2iEXZ1#199705

35136HANGER, TRANSMISSION,NO.1

main35136-16020iEXZ1#199705

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iEXZ1#199705

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010×3iEXZ1#199705

35159GASKET, BRAKE DRUM

main35159-20010iEXZ1#199705

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iEXZ1#199705

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iEXZ1#199705

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010iEXZ1#199705

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iEXZ1#199705

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iEXZ1#199705-200112

main35168-12080iEXZ1#200112

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iEXZ1#199705

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iEXZ10199705

35395ASTRAINER, GOVERNOR OIL

main35395-12020iEXZ1#199705

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9010508302

main90105-08302

9010510335

main90105-10335

9161160614

main91611-60614

9161160825

main91611-60825

9613251000

main96132-51000

40 parts on this diagram · 2 diagrams in section
