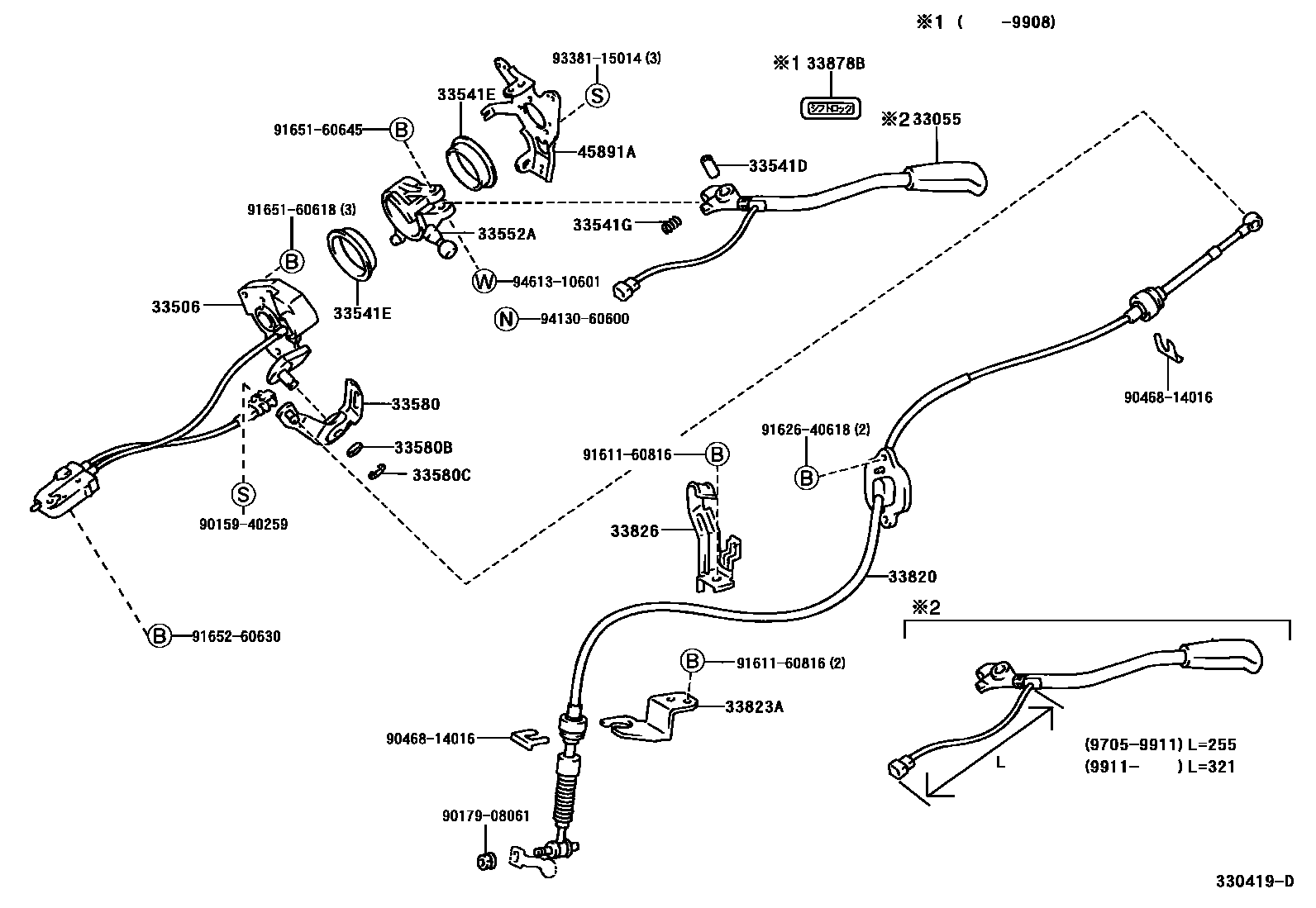

CONTROL SHAFT & CROSSSHAFT

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-46010iEXZ1#199705-199911

main33055-46011iEXZ1#199911

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-46010iEXZ1#199705-199907

main33506-46020iEXZ1#199907

33541DCOLLAR (FOR COLUMN SHIFT LEVER)

main90387-06062iEXZ1#199705

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90387-49001×2iEXZ1#199705

33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)

main90501-16150iEXZ1#199705

33552AARM, SHIFT LEVER

main33552-44011iEXZ1#199705

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-44010iEXZ1#199705

33580BRING, SHAFT SNAP (FOR SHIFTING BELLCRANK)

main96160-01000iEXZ1#199705

33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)

main90560-11028iEXZ1#199705

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-46010iEXZ15199708-199805

main33820-46020iEXZ10199705-199805

main33820-46040iEXZ1#199907

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-16050iEXZ1#199705

33826BRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-46020iEXZ1#199705-200106

main33826-46021iEXZ1#200106

33878BLABEL, SHIFT LOCK INFORMATION, NO.2(FOR COLUMN SHIFT)

main33878-27020iEXZ1#199705-199907

45891ABRACKET, TURN SIGNAL

main45891-44020iEXZ1#199705

9015940259

main90159-40259

9017908061

main90179-08061

9046814016

main90468-14016

9161160816

main91611-60816

9162640618

main91626-40618

9165160618

main91651-60618

9165160645

main91651-60645

9165260630

main91652-60630

9338115014

main93381-15014

9413060600

main94130-60600

9461310601

main94613-10601

25 parts on this diagram · 1 diagram in section
