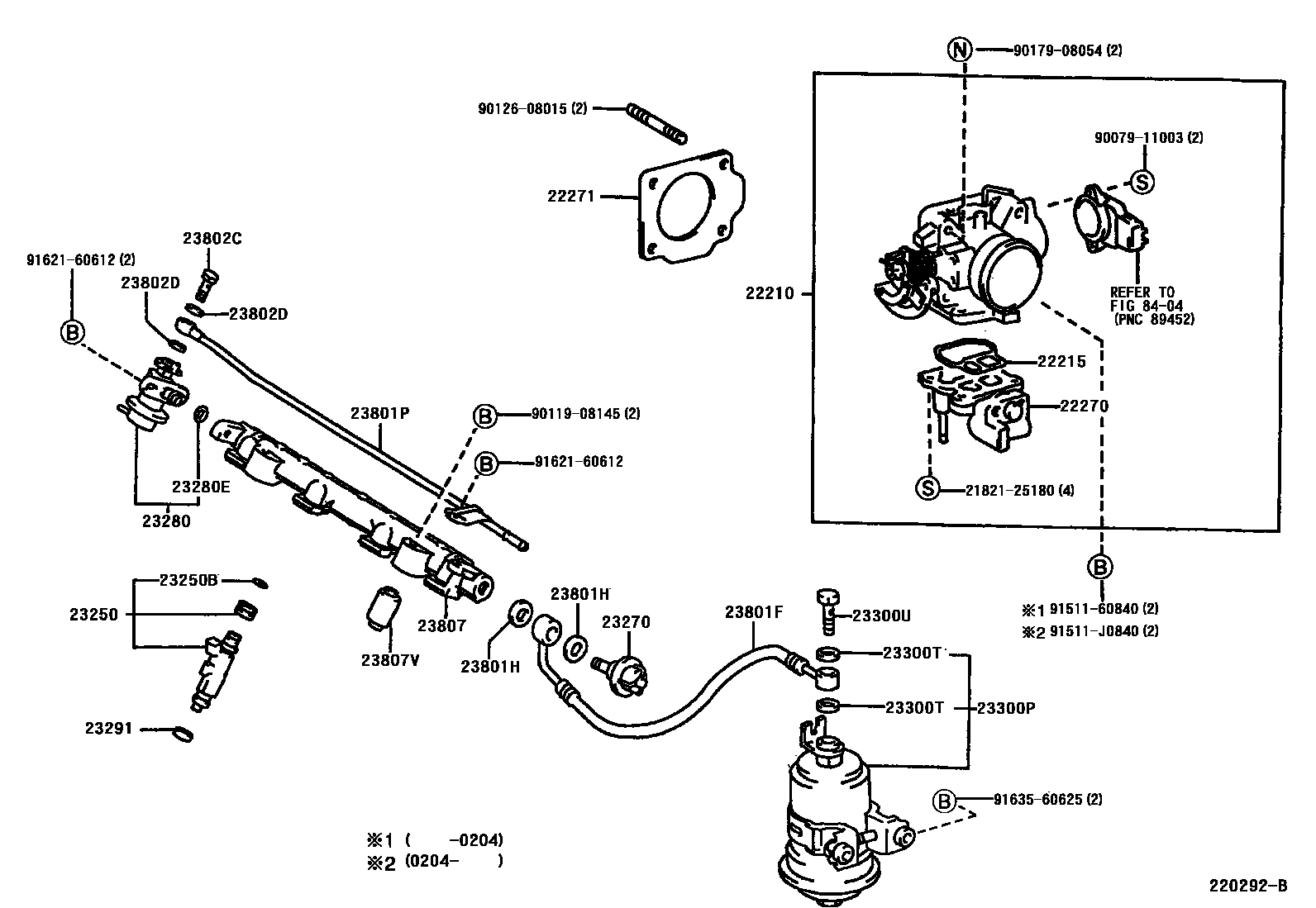

FUEL INJECTION SYSTEM

0001 1 0002 1

22210BODY ASSY, THROTTLE

main22210-11600i5EFE..EXZ1#199705-200204

main22210-11650i5EFE..EXZ10200204

22215GASKET, THROTTLE BODY COVER

main22215-74400i5EFE..EXZ1#199705

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-11020i5EFE..EXZ1#199705

22271GASKET, THROTTLE BODY

main22271-11030i5EFE..EXZ1#199705

23250INJECTOR ASSY, FUEL

main23209-11130×4i5EFE..EXZ1#199705

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i5EFE..EXZ1#199705-199812

main90301-07024×4i5EFE..EXZ1#199812

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i5EFE..EXZ1#199705

23280REGULATOR ASSY, FUEL PRESSURE

main23280-11040i5EFE..EXZ1#199705

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i5EFE..EXZ1#199705-199812

main90301-07024i5EFE..EXZ1#199812

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i5EFE..EXZ1#199705

23300PFILTER, FUEL(FOR EFI)

main23300-19395i5EFE..EXZ1#199705

23300TGASKET(FOR FUEL FILTER)

main90430-12026×2i5EFE..EXZ1#199705

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i5EFE..EXZ1#199705

23801FHOSE, FUEL, NO.1

main23271-11300i5EFE..EXZ1#199705

23801HGASKET(FOR FUEL PIPE)

main23279-74010×2i5EFE..EXZ1#199705

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-11120i5EFE..EXZ1#199705

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i5EFE..EXZ1#199705

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-08014×2i5EFE..EXZ1#199705

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-11030i5EFE..EXZ1#199705

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-11020×2i5EFE..EXZ1#199705

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911003

main90079-11003

9011908145

main90119-08145

9012608015

main90126-08015

9017908054

main90179-08054

9151160840

main91511-60840

91511J0840

main91511-J0840

9162160612

main91621-60612

9163560625

main91635-60625

30 parts on this diagram · 2 diagrams in section
