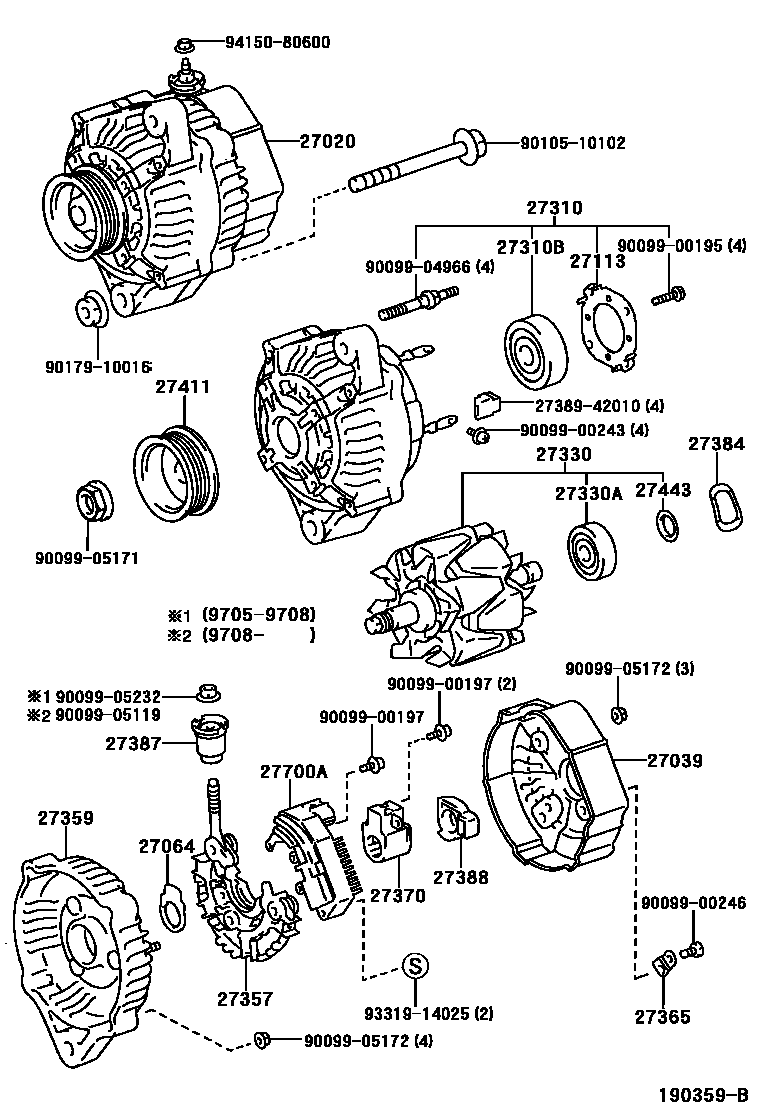

ALTERNATOR

27020ALTERNATOR ASSY

main27060-11281i5EFE..EXZ1#199705-200204

27039COVER, ALTERNATOR REAR END

main27039-55080i5EFE..EXZ1#199705-200104

sub27039-70470

main27039-70470i5EFE..EXZ1#200104-200204

27064SEAL, ALTERNATOR PLATE

main27064-42010i5EFE..EXZ1#199705-200204

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i5EFE..EXZ1#199705-200204

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16270i5EFE..EXZ1#199705-200204

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10192i5EFE..EXZ1#199705-200204

27330ROTOR ASSY, ALTERNATOR

main27330-16390i5EFE..EXZ1#200007-200204

main27330-76030i5EFE..EXZ1#199705-200007

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i5EFE..EXZ1#199705-200204

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-55080i5EFE..EXZ1#199705-200204

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16270i5EFE..EXZ1#199705-200204

27365PLATE, TERMINAL

main27365-55080i5EFE..EXZ1#199705-200204

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i5EFE..EXZ1#199705-200204

27384WASHER

main27384-50030i5EFE..EXZ1#199705-200204

27387INSULATOR, TERMINAL

main27387-42020i5EFE..EXZ10199705-199708

main27387-42021i5EFE..EXZ1#199708-200204

27388COVER, ALTERNATOR BRUSH

main27388-42010i5EFE..EXZ1#199705-200204

27411PULLEY, ALTERNATOR

main27411-11060i5EFE..EXZ1#199705-200204

27443COVER, ALTERNATOR BEARING

main27443-63020i5EFE..EXZ1#199705-200204

27700AREGULATOR ASSY, GENERATOR

main27700-74030i5EFE..EXZ1#199705-200204

2738942010INSULATOR, TERMINAL

main27389-42010

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9009905232

main90099-05232

9010510102

main90105-10102

9017910016

main90179-10016

9331914025

main93319-14025

9415080600

main94150-80600

32 parts on this diagram · 1 diagram in section
