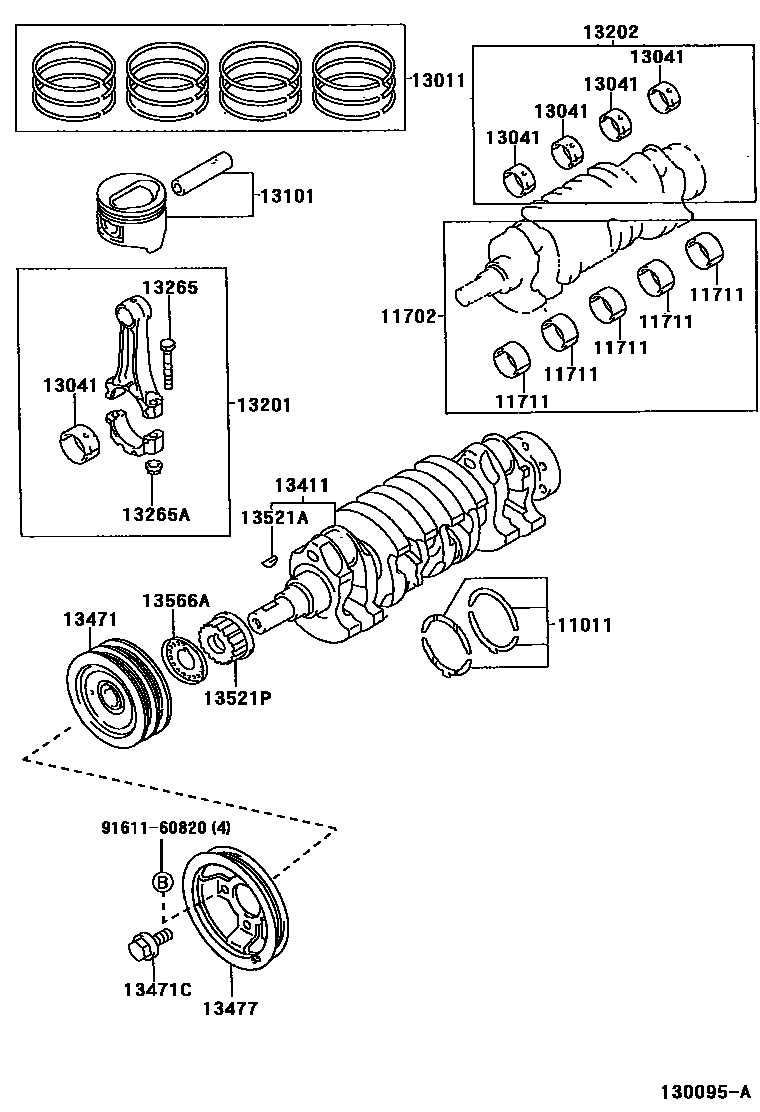

CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-11010i5EFE..EXZ1#199705

main11012-11010i5EFE..EXZ1#199705-199907

11702BEARING SET, CRANKSHAFT

main11704-11012i5EFE..EXZ1#199705

11711BEARING, CRANKSHAFT

main11701-11012-01×5i5EFE..EXZ1#199705

main11701-11012-02×5i5EFE..EXZ1#199705

main11701-11012-03×5i5EFE..EXZ1#199705

main11701-11012-04×5i5EFE..EXZ1#199705

main11701-11012-05×5i5EFE..EXZ1#199705

13011RING SET, PISTON

main13011-11140i5EFE..EXZ1#199705

13041BEARING, CONNECTING ROD

main13041-11010-01×4i5EFE..EXZ1#199705

main13041-11010-02×4i5EFE..EXZ1#199705

main13041-11010-03×4i5EFE..EXZ1#199705

13101PISTON SUB-ASSY, W/PIN

main13101-11121-01×4i5EFE..EXZ1#199705

main13101-11121-02×4i5EFE..EXZ1#199705

main13101-11121-03×4i5EFE..EXZ1#199705

13201ROD SUB-ASSY, CONNECTING

main13201-19088×4i5EFE..EXZ1#199705

13202BEARING SET, CONNECTING ROD

main13204-11010i5EFE..EXZ1#199705

13265BOLT, CONNECTING ROD

main13265-10022×8i5EFE..EXZ1#199705

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-08014×8i5EFE..EXZ1#199705

13411CRANKSHAFT

main13401-11040i5EFE..EXZ1#199705

13471PULLEY, CRANKSHAFT

main13408-11012i5EFE..EXZ1#199705-199710

main13470-11030i5EFE..EXZ1#199710

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12051i5EFE..EXZ1#199705

13477PULLEY, CRANKSHAFT, NO.2

main44319-10011i5EFE..EXZ1#199705

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i5EFE..EXZ1#199705

13521PPULLEY, CRANKSHAFT TIMING

main13521-11030i5EFE..EXZ1#199705

13566AGUIDE, TIMING BELT

main13566-11020i5EFE..EXZ1#199705

9161160820

main91611-60820

18 parts on this diagram · 1 diagram in section
