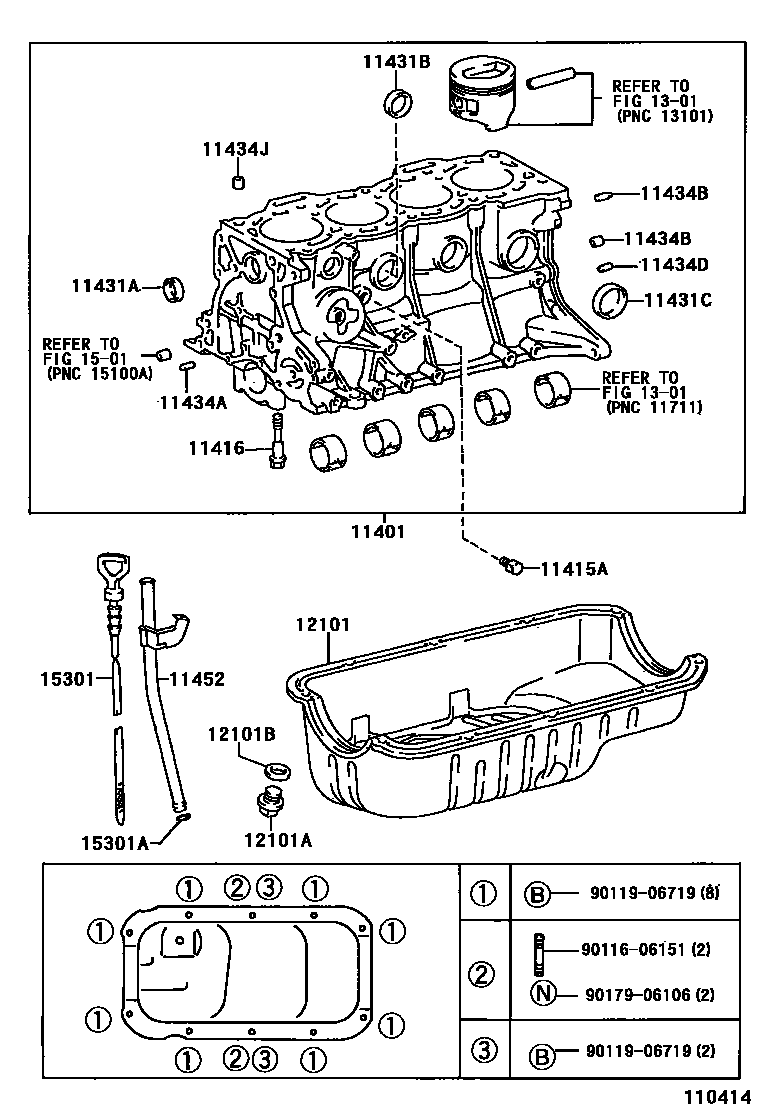

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-19599i5EFE..EXZ1#199705

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i5EFE..EXZ1#199705

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i5EFE..EXZ1#199705

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500×2i5EFE..EXZ1#199705-199908

main96411-62500×2i5EFE..EXZ1#199908

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000×6i5EFE..EXZ1#199705-199908

main96411-63000×6i5EFE..EXZ1#199908

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43500i5EFE..EXZ1#199705-199908

main96411-63500i5EFE..EXZ1#199908

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06068×2i5EFE..EXZ1#199705

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i5EFE..EXZ1#199705

main90253-15003i5EFE..EXZ1#199705

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i5EFE..EXZ1#199705

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-12001×2i5EFE..EXZ1#199705

11452GUIDE, OIL LEVEL GAGE

main11452-11041i5EFE..EXZ1#199705

12101PAN SUB-ASSY, OIL

main12101-11060i5EFE..EXZ10199705

main12101-11090i5EFE..EXZ15199708

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i5EFE..EXZ1#200210

main90341-12026i5EFE..EXZ1#199705-200210

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i5EFE..EXZ1#199705

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-11050i5EFE..EXZ1#199705

15301ARING, O(FOR OIL LEVEL GAGE)

main96721-19010i5EFE..EXZ1#199705

9011606151

main90116-06151

9011906719

main90119-06719

9017906106

main90179-06106

21 parts on this diagram · 1 diagram in section
