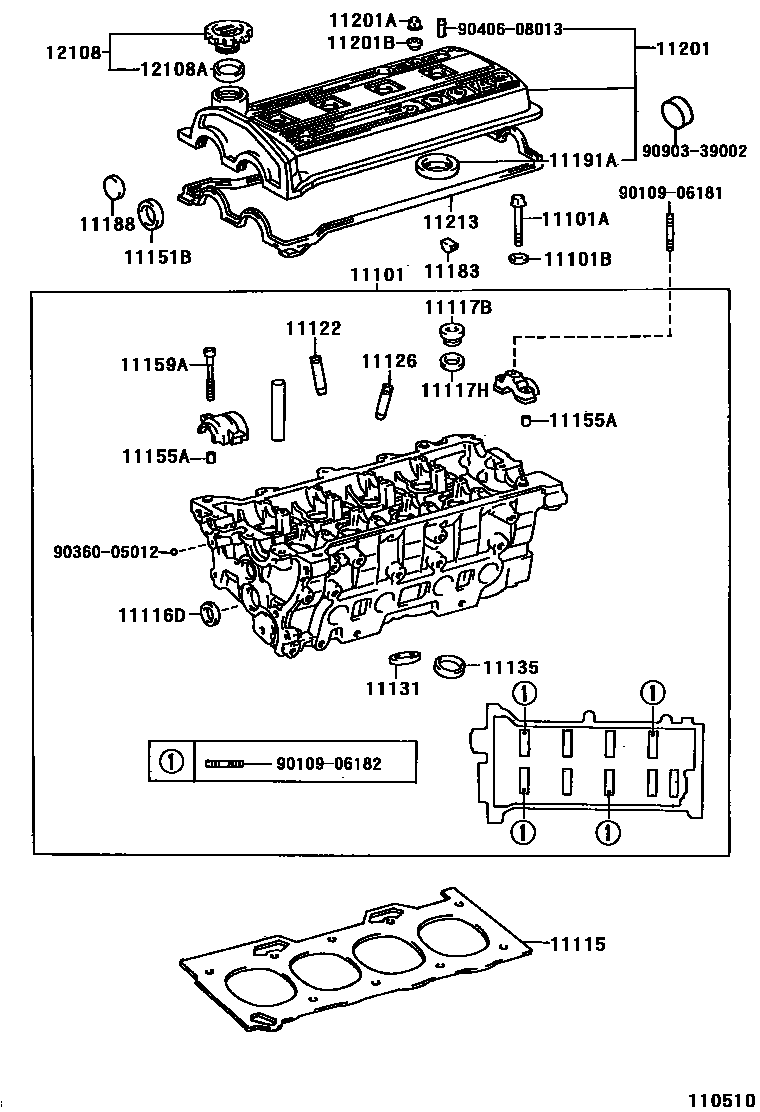

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-19436i5EFE..EXZ1#199705

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02100i5EFE..EXZ1#199705

main90910-02101i5EFE..EXZ1#199705

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i5EFE..EXZ1#199705

11115GASKET, CYLINDER HEAD

main11115-11071i5EFE..EXZ1#199705

11116DPLUG, TIGHT, NO.4

main96411-42800i5EFE..EXZ1#199705

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-20002i5EFE..EXZ1#199705

11117HGASKET(FOR WATER HOLE)

main90430-20004i5EFE..EXZ1#199705

11122BUSH, INTAKE VALVE GUIDE

main11122-15030i5EFE..EXZ1#199705

main11123-15030i5EFE..EXZ1#199705

11126BUSH, EXHAUST VALVE GUIDE

main11122-10040i5EFE..EXZ1#199705

main11123-10040i5EFE..EXZ1#199705

11131SEAT, INTAKE VALVE

main11131-11020i5EFE..EXZ1#199705

main11132-11020i5EFE..EXZ1#199705

11135SEAT, EXHAUST VALVE

main11135-11020i5EFE..EXZ1#199705

main11136-11020i5EFE..EXZ1#199705

11151BSEAL, OIL(FOR CAMSHAFT SETTING)

main90311-35035i5EFE..EXZ1#199705

11155APIN, RING W/HEAD

main90253-08003i5EFE..EXZ1#199705

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080i5EFE..EXZ1#199705

11183PLUG, SEMICIRCULAR

main11183-11010i5EFE..EXZ1#199705

11188PLUG, CAMSHAFT HOUSING

main11188-11010i5EFE..EXZ1#199705

11191AGASKET(FOR SPARK PLUG TUBE)

main11193-15010i5EFE..EXZ1#199705

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-11030i5EFE..EXZ1#199705

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-06028i5EFE..EXZ1#199705

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06013i5EFE..EXZ1#199705

11213GASKET, CYLINDER HEAD COVER

main11213-11041i5EFE..EXZ1#199705

12108CAP SUB-ASSY, OIL FILLER

main12180-55010i5EFE..EXZ1#199705

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i5EFE..EXZ1#199705

9010906181

main90109-06181

9010906182

main90109-06182

9036005012

main90360-05012

9040608013

main90406-08013

9090339002

main90903-39002

28 parts on this diagram · 1 diagram in section
