HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0008 1 0010 1

82600HFUSE, FUSE BLOCK

main90982-09009iEL54199508-199712

87138CRESISTOR, BLOWER

main87138-16140iEL5#199802

main87138-16150iEL54199608

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-16040iEL5#199508

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1G870iEL54199508-199608

main88605-1G880iEL5#199508-199608

main88605-1S110iEL52199508-199608

main88605-1S260iEL54199608

main88605-1S310iEL5#199608

88625THERMISTOR, COOLER, NO.1

main88625-12230iEL5#199508

88625BTHERMISTOR, COOLER NO.3

main88625-16180iEL52199508-199608

88630RELAY ASSY, COOLER

main88630-95702iEL5#199508

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-10470iEL5#199608

main88650-16620iEL5#199508-199608

main88650-16680iEL54199608

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-16610iEL5#199508-199608

8712416010CLAMP, HEATER

main87124-16010

8856917080CLAMP (FOR COOLER RELAY)

main88569-17080

8857817070PAKING, COOLER AIR DUCT

main88578-17070

886881G410BRACKET, COOLER DIAPHRAGM

main88688-1G410

886881G470BRACKET, COOLER DIAPHRAGM

main88688-1G470

9009932129

main90099-32129

9015960486

main90159-60486

9017906036

main90179-06036

9017906239

main90179-06239

9048024008

main90480-24008

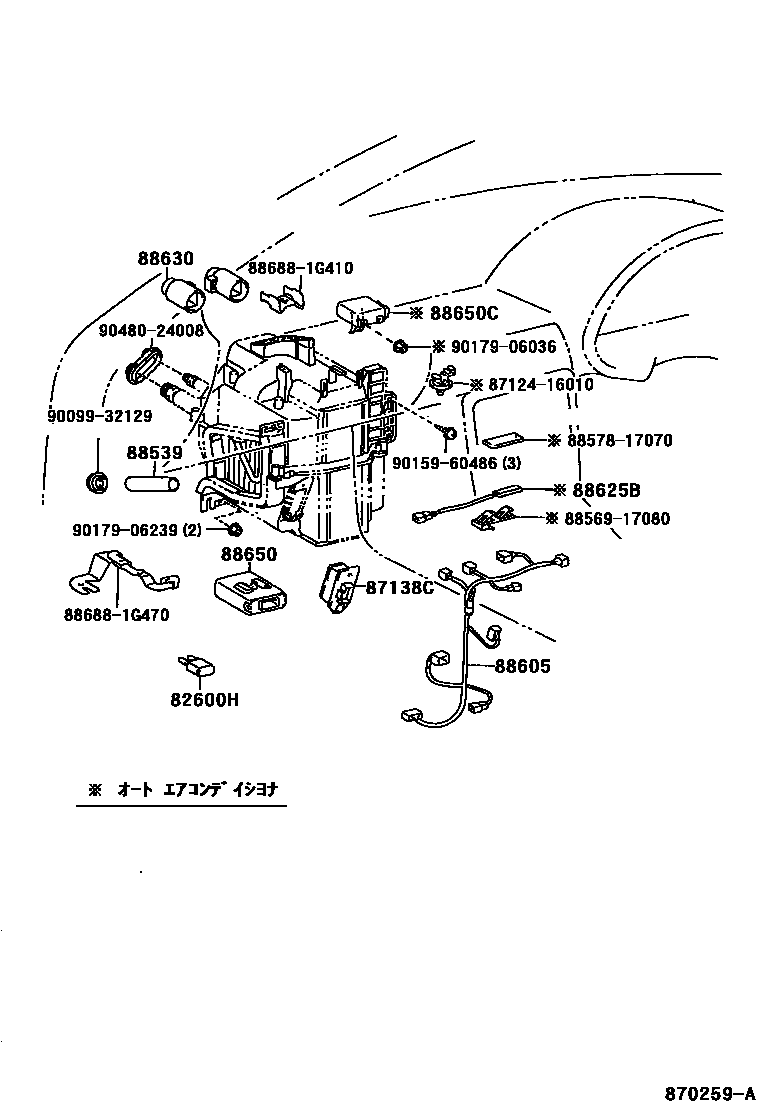

19 parts on this diagram · 6 diagrams in section
