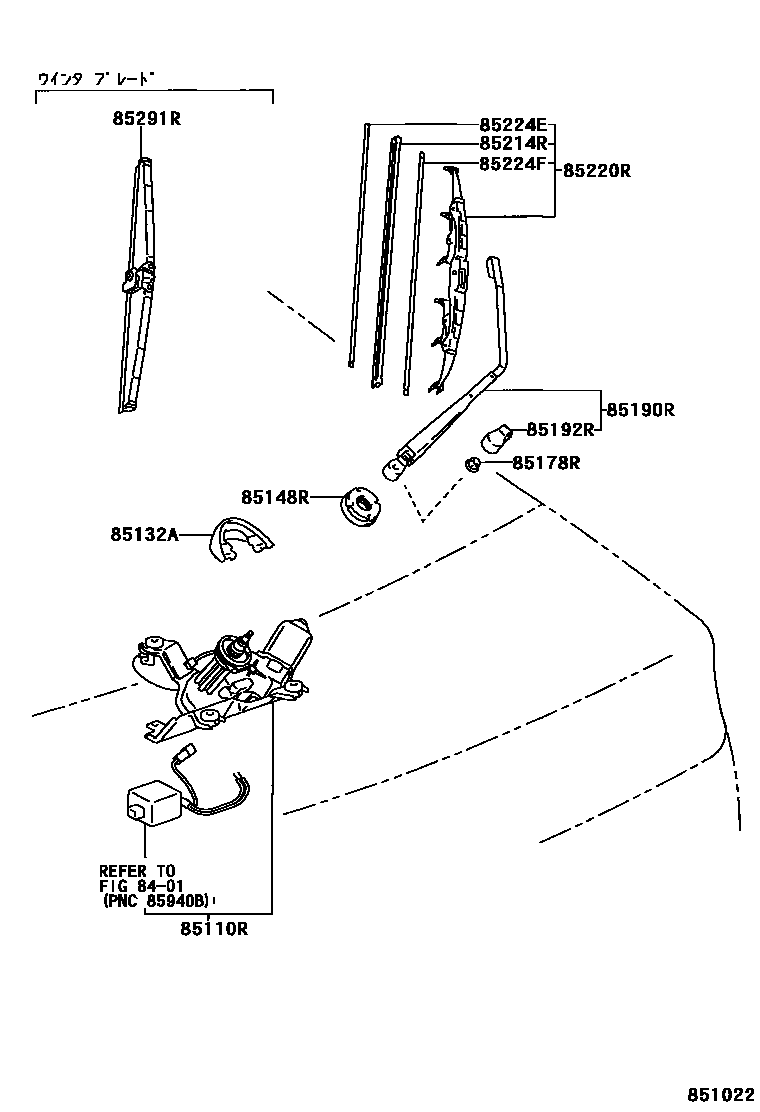

REAR WIPER

8401

85110RMOTOR ASSY, REAR WIPER

main85130-16420iEL5#..CP199508-199907

85132ACOVER, REAR WIPER SHAFT

main85132-16400-B0iEL5#..CP199508

GRAY,TRIM1#

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85133-12770iEL5#..CP199508

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iEL5#..CP199508

85190RARM ASSY, REAR WIPER

main85241-16050iEL5#..CP199508

85192RCOVER, REAR WIPER ARM

main85192-13060iEL5#..CP199508

85214RRUBBER, REAR WIPER

main85214-20360iEL5#..CP199508

85220RBLADE ASSY, REAR WIPER

main85242-20050iEL5#..CP199508

sub85242-20080

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-20360iEL5#..CP199508

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-20360iEL5#..CP199508

85291RBLADE,REAR WIPER, WINTER

main85291-16040iEL5#..CP199508

12 parts on this diagram · 1 diagram in section
