FUEL TANK & TUBE

58321DINSULATOR, REAR FLOOR HEAT, NO.1

main58321-10020iEL5#..CP199508-199802

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10060iEL5#199508-199608

main77011-16100iEL5#199608

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-16060iEL5#199608

77018GGASKET, FUEL TANK EVAP/VENT TUBE

main77179-26010iEL5#..CP199608-199802

77031CAP ASSY, FUEL TANK

main77310-16011iEL5#199508-199803

main77310-48010iEL5#199803

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-16230iEL5#199508

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-16040iEL5#199508

77100TANK ASSY, FUEL

main77001-16220iEL5#199508-199608

main77001-16250iEL5#199608-199802

77113BPLATE, FUEL TANK SIDE

main77113-10020×4iEL5#..CP199508-199802

77169AGASKET, FUEL SUCTION TUBE SET

main77169-16030iEL5#199508-199608

main77169-20050iEL5#199608-199802

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iEL5#..CP199508-199802

77189RETAINER, FUEL CHECK VALVE

main77189-18010iEL5#199508-199608

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-16151iEL5#..CP199508

main77201-16161iEL5#199508

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13028iEL5#199508-199802

77203ATUBE SUB-ASSY, FUEL SUCTION

main23206-11160iEL5#199508-199602

main23206-11440iEL5#199602-199608

main23206-11460iEL5#199602-199608

main77203-16040iEL5#..CP199608

main77203-16050iEL5#..CVT199610-199802

77204ATUBE, FUEL TANK RETURN

main23204-11140iEL5#199508-199608

main77204-16010iEL5#..CP199608-199802

77204BHOSE, FUEL(FOR FUEL RETURN)

main95333-06020iEL5#199802

main95334-06010iEL5#199508-199802

77209BTUBE SUB-ASSY, FUEL PUMP

main23091-11090iEL5#199508-199608

main77209-16020iEL5#199608

main77209-16070iEL5#199608

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-16080iEL5#199508

77219COVER, FUEL TANK FILLER PIPE

main77219-32030×2iEL5#199508

77251BTUBE, FUEL MAIN

main77251-16220iEL5#199508

77255DTUBE, FUEL RETURN

main77255-16140iEL5#199508

77261DTUBE, FUEL TANK TO CANISTER

main77261-16130iEL5#199508-199608

main77261-16190iEL5#199608

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main77419-10010iEL5#199508

77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

main77249-10050iEL5#199508-199608

main77249-10070iEL5#199508-199608

main95333-06020iEL5#199608

77266APROTECTOR, FUEL TUBE, NO.1

main77266-10030iEL5#199508

77267APROTECTOR, FUEL TUBE, NO.2

main77267-16020iEL5#199508

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main95333-06020iEL5#199508

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main23271-11240iEL5#199508-199509

main23271-11241iEL5#199509

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-16130iEL5#199508

77285DCLAMP, FUEL TUBE, NO.1

main77285-10010iEL5#199508-199608

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77286-10020iEL5#199508-199608

77289ACLAMP, FUEL TUBE W/GROMMET, NO.3

main77289-10030iEL5#199508

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-16130iEL5#199508

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-16120iEL5#199508

77316GASKET, FUEL TANK CAP

main77316-16010iEL5#199508

77350LID ASSY, FUEL FILLER OPENING

main77350-16240iEL5#199508

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-16010iEL5#199508

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iEL5#199508-199608

77391RING, FUEL INLET BOX

main77391-14020iEL5#199508

77406ACLIP(FOR FUEL TUBE PROTECTOR)

main90467-16023×4iEL5#199508

77412SUPPORT, FUEL TUBE GROMMET, NO.2

main77412-10010iEL5#199508

77740CANISTER ASSY, CHARCOAL

main77704-16170iEL5#199508-199608

main77740-16270iEL5#199608

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main77754-16020iEL5#..MTM199601-199608

main77754-16040iEL5#..ATM199601-199608

main95333-08020iEL5#..ATM; EL5#..MTM199508-199601

77763CASE, CHARCOAL CANISTER DRAIN

main77763-10010iEL5#..ATM199508-199608

main77763-10020iEL5#..MTM199508-199608

9011906351

main90119-06351

9011908866

main90119-08866

9011910252

main90119-10252

9015940155

main90159-40155

9015950153

main90159-50153

9015950217

main90159-50217

9015950219

main90159-50219

9015960175

main90159-60175

9015960323

main90159-60323

9015960498

main90159-60498

9017910112

main90179-10112

9018905097

main90189-05097

9018906174

main90189-06174

9040112097

main90401-12097

9046022002

main90460-22002

9046046003

main90460-46003

9046400395

main90464-00395

9046400725

main90464-00725

9046705086

main90467-05086

9046707130

main90467-07130

9046712009

main90467-12009

9046712056

main90467-12056

9046922001

main90469-22001

9048001277

main90480-01277

9048001565

main90480-01565

9095902002

main90959-02002

9098011078

main90980-11078

91651B0614

main91651-B0614

9165660616

main91656-60616

9331914008

main93319-14008

9613241100

main96132-41100

9613541100

main96135-41100

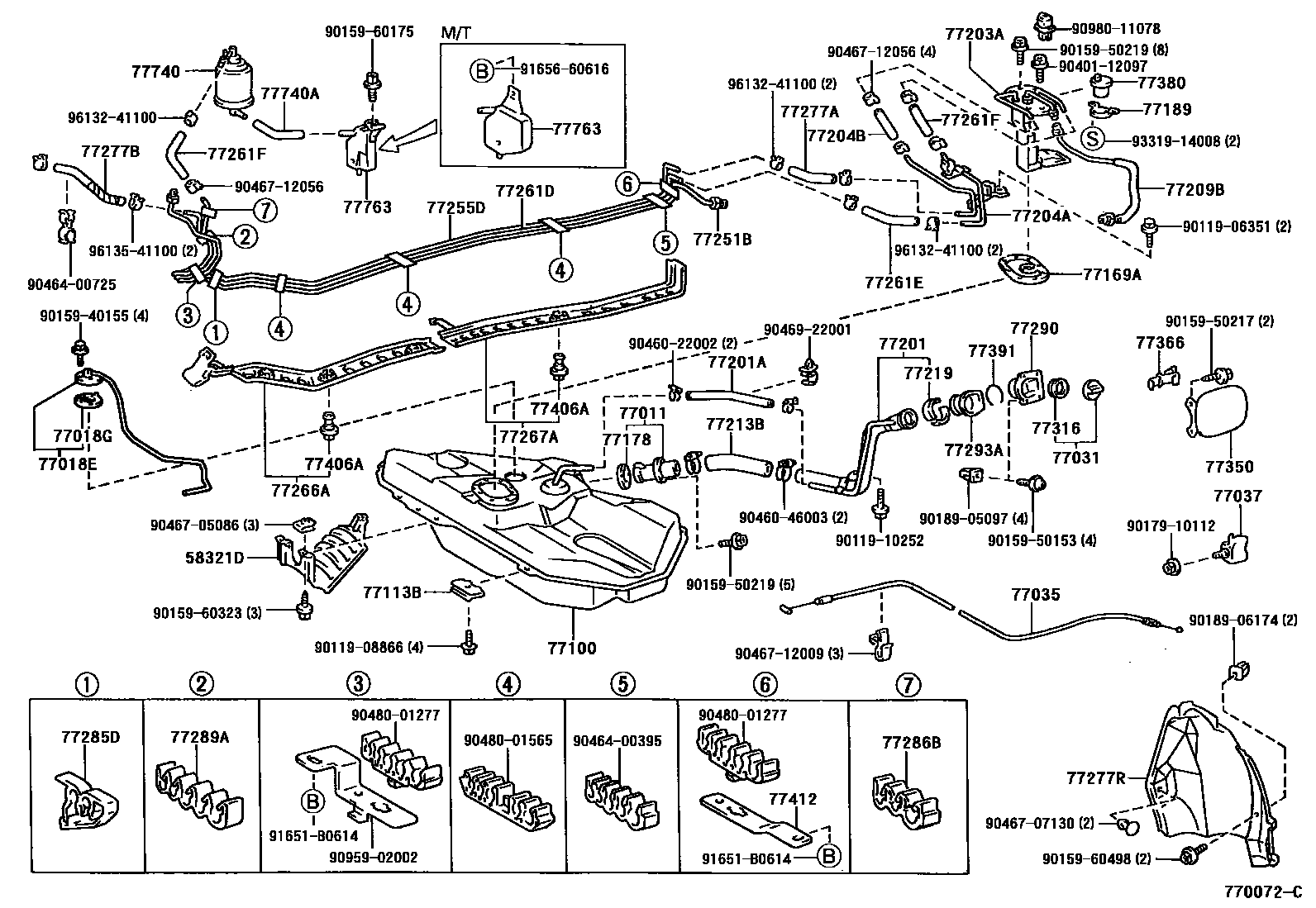

77 parts on this diagram · 1 diagram in section
