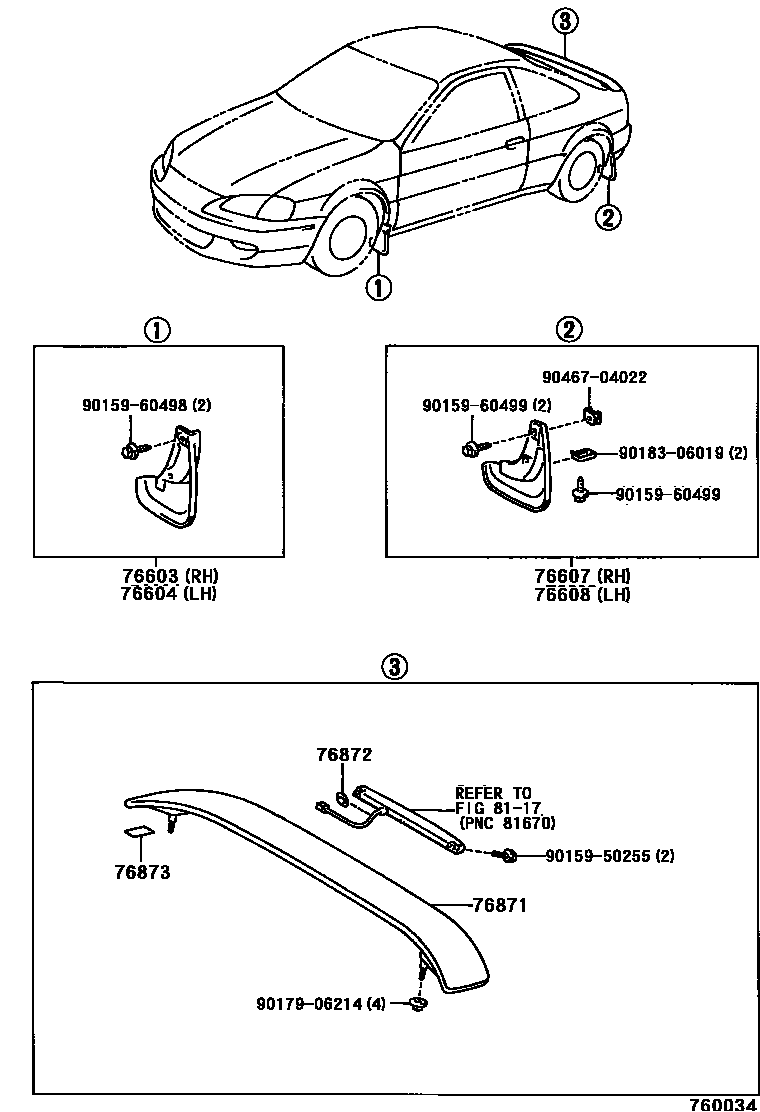

MUDGUARD & SPOILER

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19265iEL5#199508

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19265iEL5#199508

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-19565iEL5#199508

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-19565iEL5#199508

76871SPOILER, REAR

main76871-16902iEL5#199508

76872PROTECTOR, REAR SPOILER, NO.1

main76872-16070×2iEL5#199508

76873PROTECTOR, REAR SPOILER, NO.2

main76873-16080×2iEL5#199508

8117CENTER STOP LAMP

→ Go to FIG 81-17

9015950255

main90159-50255

9015960498

main90159-60498

9015960499

main90159-60499

9017906214

main90179-06214

9018306019

main90183-06019

9046704022

main90467-04022

14 parts on this diagram · 1 diagram in section
