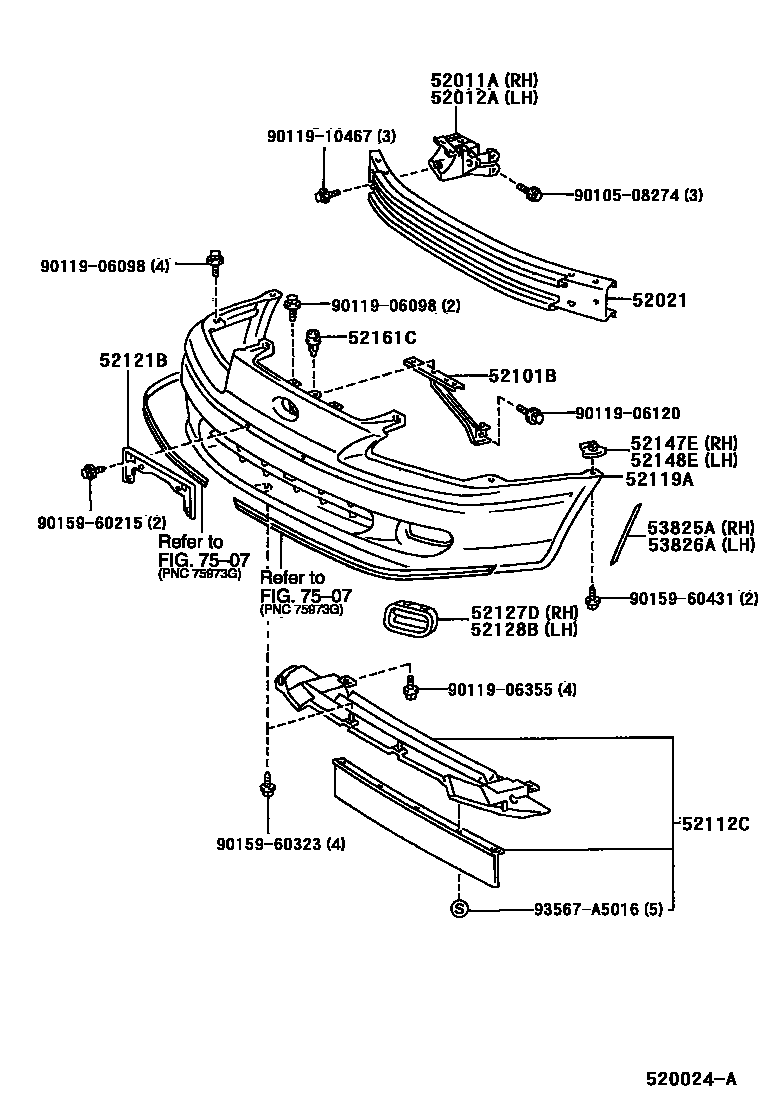

FRONT BUMPER & BUMPER STAY
52011AARM SUB-ASSY, FRONT BUMPER, RH
52012AARM SUB-ASSY, FRONT BUMPER, LH
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52101BPLATE SUB-ASSY, FRONT BUMPER REINFORCEMENT
52112CEXTENSION, FRONT BUMPER
52119ACOVER, FRONT BUMPER
SUPER WHITE 2,040
BLUISH SILVER ME.,1A0
CRYSTAL SILVER PEARL,1C1
BLACK ME,205
SUPER RED 2,3E5
GREEN M.M.,6P6
TURQUOISE M.M.,756
PURPLISH BLUE M.M.,8K9
BLUE M.M.,8L5
SILVER PEARL ME.,2BR
CRYSTAL SILVER PEARL,2EH
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52161CPIECE, FRONT BUMPER
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
9010508274
main90105-08274
9011906098
main90119-06098
9011906120
main90119-06120
9011906355
main90119-06355
9011910467
main90119-10467
9015960215
main90159-60215
9015960323
main90159-60323
9015960431
main90159-60431
93567A5016
main93567-A5016
23 parts on this diagram · 1 diagram in section
