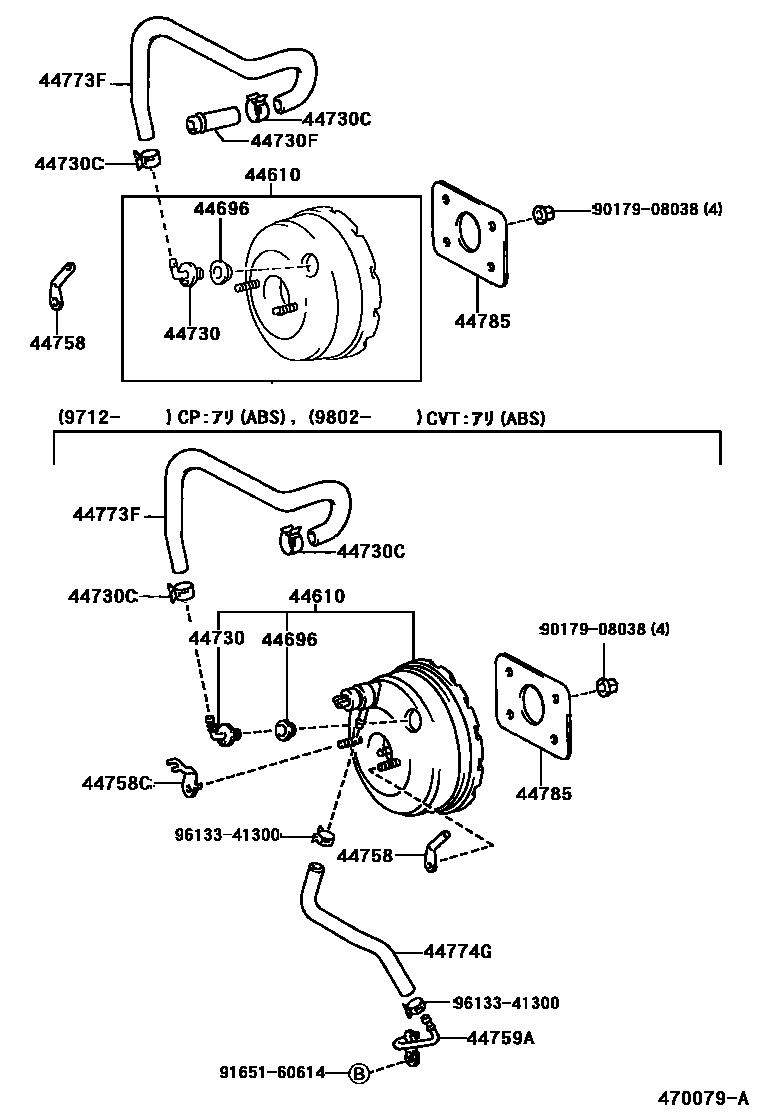

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-10370iEL5#199605-199712

main44610-16550iEL5#199508-199605

main44610-16640iEL5#..CP199712-199802

44696GROMMET, CHECK VALVE

main90480-24439iEL5#199508

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-42010iEL5#199508

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×2iEL5#199508

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90406-09006iEL52199508-199608

main90407-51002iEL54199508

44758BRACKET, VACUUM CHECK VALVE

main44758-16090iEL5#199508

44758CBRACKET, SOLENOID VALVE COVER

main44758-16110iEL5#..CP199712-199802

44759AUNION, BRAKE BOOSTER AIR HOSE

main44759-16020iEL5#199802

44773FHOSE, UNION TO CHECK VALVE

main44773-10300iEL52199608-199703

main44773-10340iEL52199703

main44773-16150iEL52199508-199608

main44773-16170iEL54199508

44774GHOSE, UNION TO SOLENOID

main44774-16040iEL5#..CP199712-199802

44785GASKET, BRAKE BOOSTER

main44785-16020iEL54199508-199509

9017908038

main90179-08038

9165160614

main91651-60614

9613341300

main96133-41300

14 parts on this diagram · 1 diagram in section
