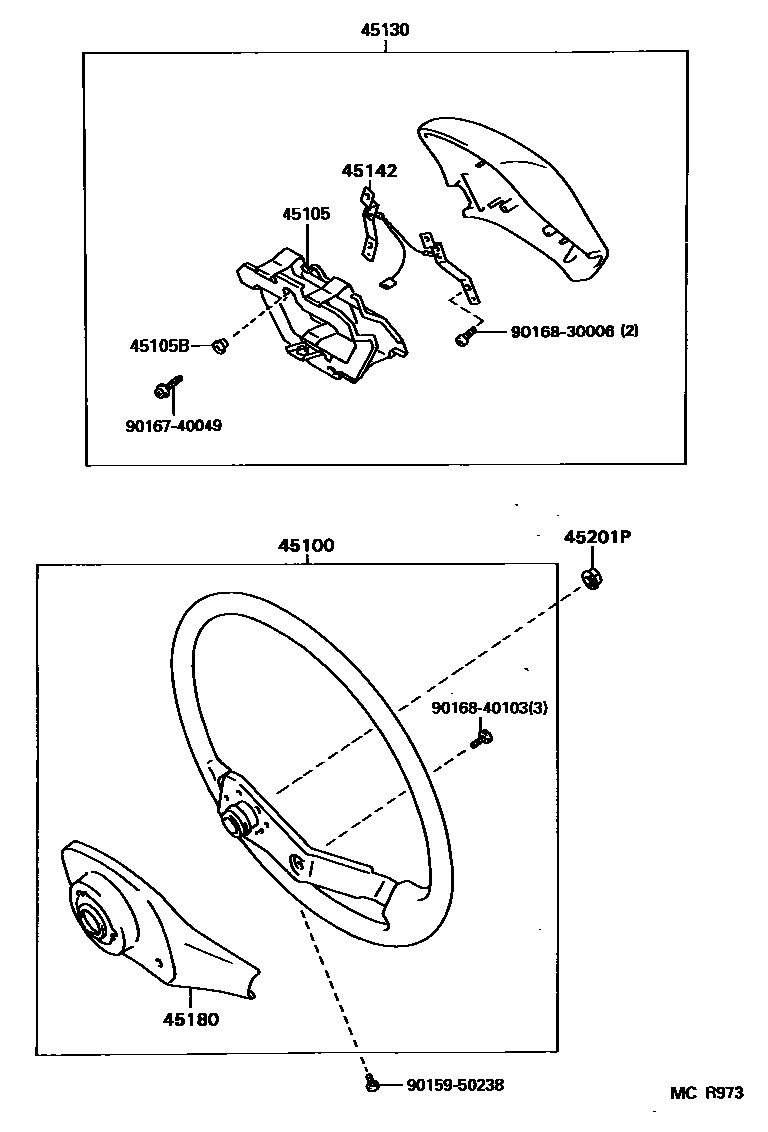

STEERING WHEEL

0001 12-SPOKE 0002 13-SPOKE 0003 14-SPOKE,��(*80) 0004 13-SPOKE

45100WHEEL ASSY, STEERING

main45100-10431-B1iEL5#199604-199608

main45100-16370-B1iEL52199508-199608

main45100-16450-B0iEL52199512-199608

main45100-16470-B0iEL5#199508-199604

main45100-16510-B0iEL5#199608-199712

main45100-16530-B0iEL52..CVT..3FC199610

main45100-16580-B0iEL5#..CP199712-199802

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-10070iEL52199508-199608

main45105-16200iEL5#199508-199608

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

main90561-04014iEL52199508-199608

45130BUTTON ASSY, HORN

main45130-14360-B0iEL5#..CP199712-199802

SHADOW GRAY,TRIM1#

main45130-16290-B1iEL52199508-199608

main45130-16300-B1iEL5#199508-199608

main45130-16360-B0iEL5#199508-199512

main45130-16400-B0iEL5#..CVT199712-199802

SHADOW GRAY,TRIM1#

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-12100iEL52199508-199608

45180COVER SUB-ASSY, STEERING WHEEL

main45180-16140-B1iEL52199508-199608

main45180-16190-B0iEL5#199508-199512

45201PNUT, STEERING WHEEL SET

main90179-12071iEL5#199508

9015950238

main90159-50238

9016740049

main90167-40049

9016830006

main90168-30006

9016840103

main90168-40103

11 parts on this diagram · 4 diagrams in section
