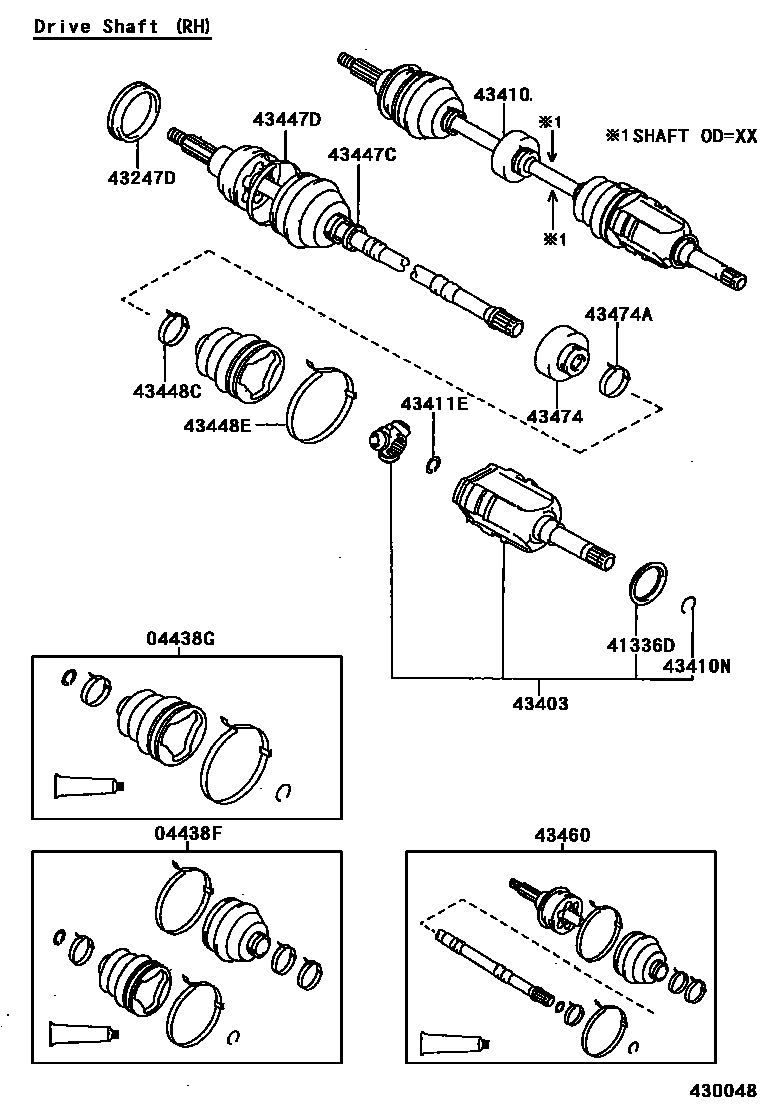

FRONT DRIVE SHAFT
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
sub04438-16140
sub04438-30050
sub04438-16071
sub04438-16071
sub04438-16091
sub04438-16070
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43247DDEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=32.5
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
ID=88.0
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
ID=32.5
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
ID=85.5
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
ID=32.5
15 parts on this diagram · 4 diagrams in section
