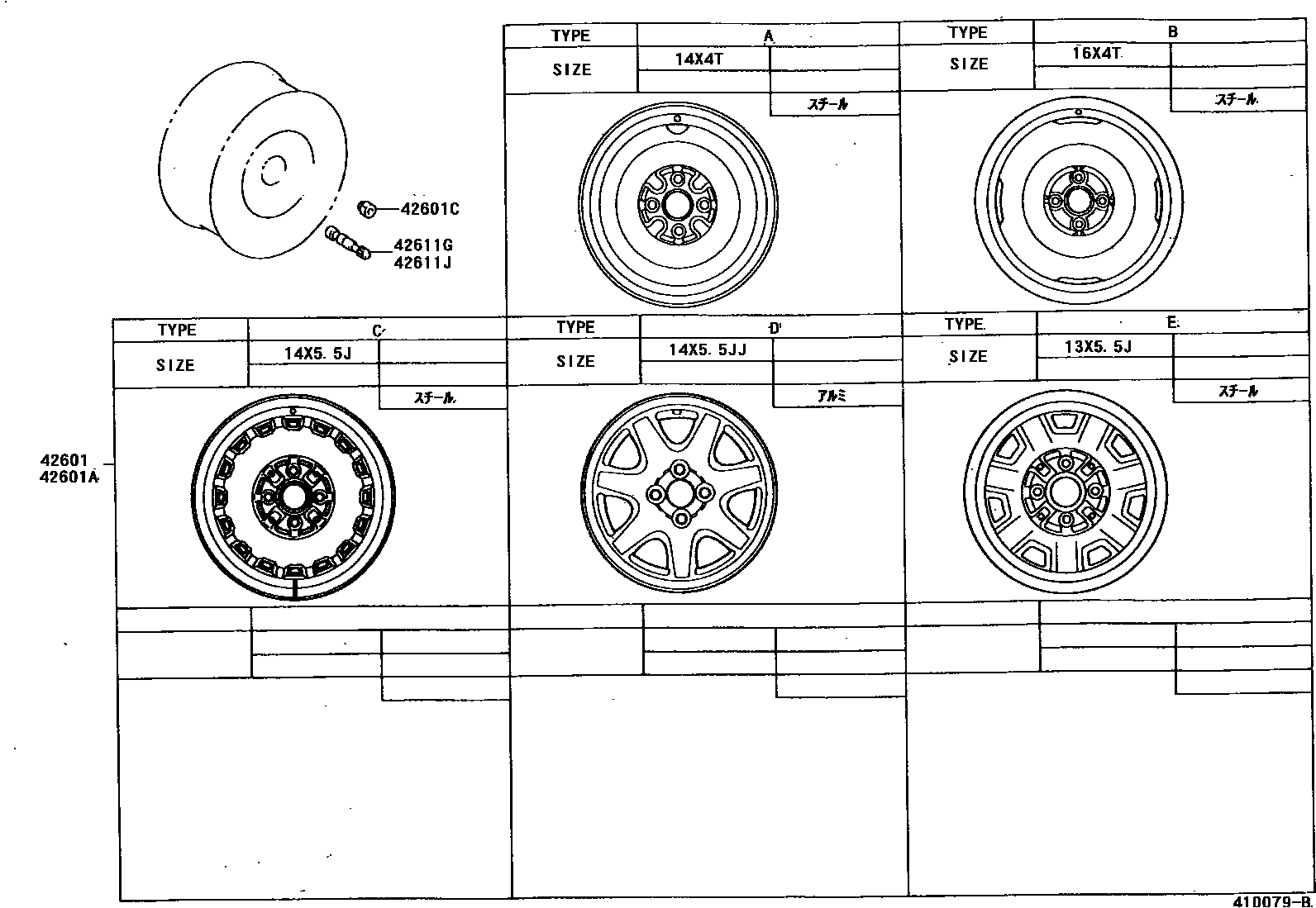

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-16500×4iEL54;EL52..CP199508

main42611-18010-01×4iEL54..CP199508

main42611-20331-01×4iEL52199508

42601AWHEEL, DISC (FOR SPARE)

main42611-10320iEL5#199508-199608

main42611-10321iEL54..5F199906

main42611-16500iEL5#..CP199508

main42611-18010-01iEL54..CP199508

main42611-1A330iEL5#199508

main42611-20331-01iEL52..CP199508

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iEL52;EL54..CP199508

main90942-01033×16iEL54;EL52..CP199508

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iEL5#199508

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iEL5#199508

5 parts on this diagram · 3 diagrams in section
