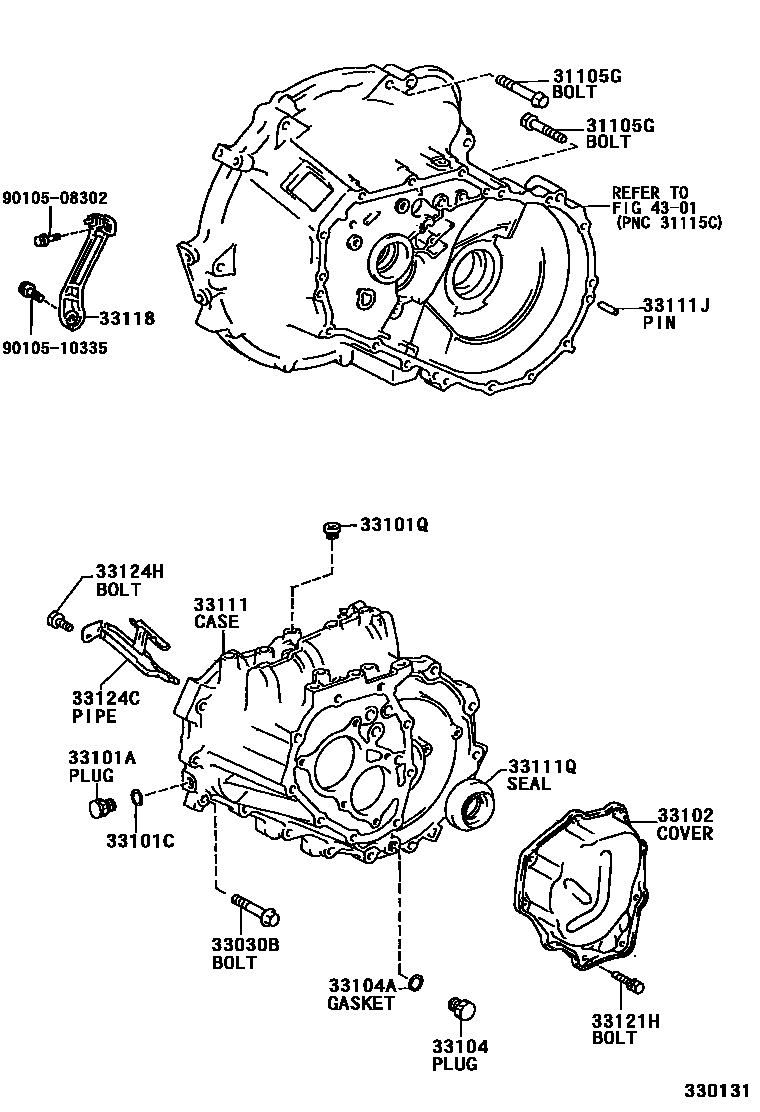

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C140 0002 1C52,C152,C154

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10097iEL5#..MTM199508

main91612-41025iEL5#..MTM; EL54..5F199508-199608

main91619-61260×3iEL5#..MTM199508

main91621-60614iEL54..5F; EL54..5F;EL52..CP..4F199508

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064×13iEL54..5F199508

main90105-08086×3iEL54..5F; EL54..5F;EL52..CP..4F199508

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iEL5#..MTM199508

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iEL5#..MTM199508

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-14008iEL52..4F199508-199802

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10014iEL52..4F199508-199802

main33102-10023iEL5#..5F199508

main33102-12021iEL54..5F199508

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iEL5#..MTM199508

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iEL5#..MTM199508

33111CASE, MANUAL TRANSMISSION

main33111-16051iEL5#..MTM199508-199704

main33111-16052iEL5#..MTM199704-199907

main33111-16061iEL54..5F199508-199704

main33111-16062iEL54..5F199704-199907

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iEL5#..MTM199508

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34017iEL5#..MTM199508

33118PLATE, STIFFENER, RH(MTM)

main33118-16020iEL5#..MTM199608-199805

main33118-16030iEL5#..5F199805

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08A34×9iEL5#..MTM199508

main91611-60835×9iEL54..5F199508

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iEL5#..MTM199508-199907

main33124-12012iEL54..5F199508-199907

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iEL5#..MTM199508

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9010508302

main90105-08302

9010510335

main90105-10335

18 parts on this diagram · 2 diagrams in section
