TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

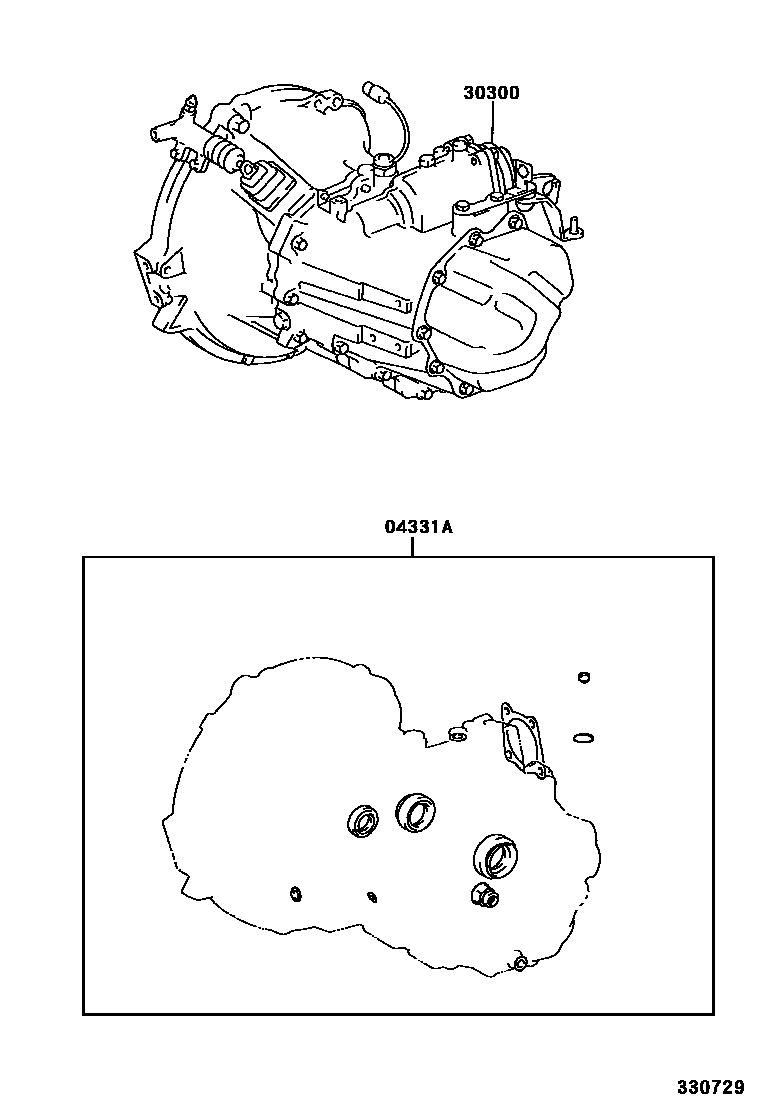

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12080i199508

main04331-12110i199508

30300TRANSAXLE ASSY, MANUAL

main30300-10480i199712

main30300-16512i199508

main30300-16532i199508

main30300-16541i199508-199802

2 parts on this diagram · 1 diagram in section
