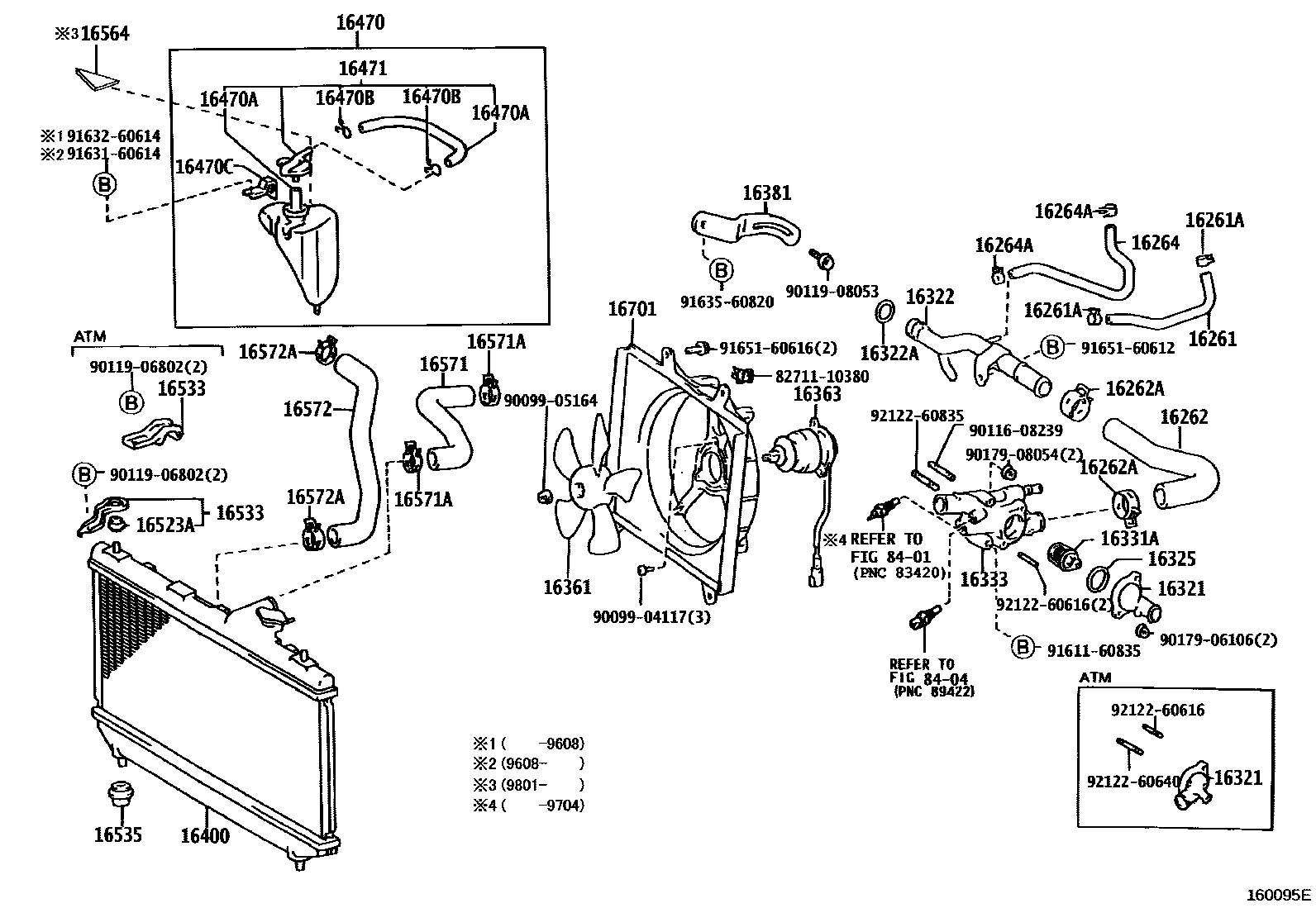

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51100
16262HOSE, WATER INLET
16262ACLIP(FOR WATER INLET HOSE)
sub90467-34004
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51100
16321INLET, WATER
16322PIPE, WATER INLET
16322ARING, O(FOR WATER INLET)
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
16333HOUSING, WATER OUTLET
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
sub16400-11601
sub16400-11840
sub16400-11840
sub16400-11820
sub16400-11652
sub16400-11791
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16564CUSHION, RADIATOR RESERVE TANK
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701SHROUD SUB-ASSY, FAN
8401
8404
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9009904117
main90099-04117
9009905164
main90099-05164
9011608239
main90116-08239
9011906802
main90119-06802
9011908053
main90119-08053
9017906106
main90179-06106
9017908054
main90179-08054
9161160835
main91611-60835
9163160614
main91631-60614
9163260614
main91632-60614
9163560820
main91635-60820
9165160612
main91651-60612
9165160616
main91651-60616
9212260616
main92122-60616
9212260640
main92122-60640
9212260835
main92122-60835
49 parts on this diagram · 2 diagrams in section
