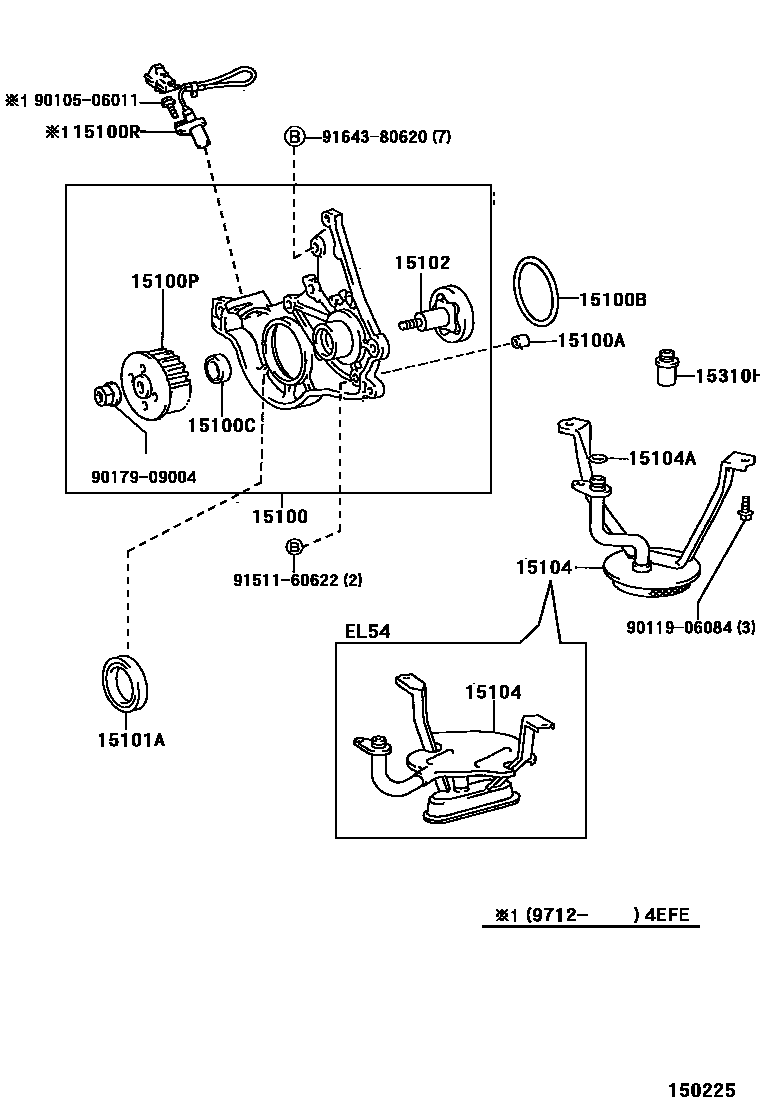

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-11071i5EFHE..EL54199802

main15100-11110i4EFE..EL52199802

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001×2i4EFE,5EFHE..EL5#199508

15100BRING, O(FOR OIL PUMP)

main90301-62006i4EFE,5EFHE..EL5#199508

15100CSEAL(FOR OIL PUMP)

main90029-21020i4EFE,5EFHE..EL5#199508

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-11020i4EFE,5EFHE..EL5#199508

15100RSENSOR, CRANK POSITION

main90919-05018i4EFE..EL52..CP199712-199802

15101ASEAL(FOR CRANKSHAFT)

main90311-35035i4EFE,5EFHE..EL5#199508-199603

main90311-35040i4EFE,5EFHE..EL5#199604

15102ROTOR SET, OIL PUMP

main15102-11080i4EFE,5EFHE..EL5#199508

15104STRAINER SUB-ASSY, OIL

main15104-11180i4EFE..EL52199508

main15104-11190i5EFHE..EL54199508

15104ARING, O(FOR OIL STRAINER)

main96721-24015i4EFE,5EFHE..EL5#199508

15310HREGULATOR ASSY, OIL

main15310-10010i4EFE,5EFHE..EL5#199508

9010506011

main90105-06011

9011906084

main90119-06084

9017909004

main90179-09004

9151160622

main91511-60622

9164380620

main91643-80620

16 parts on this diagram · 1 diagram in section
