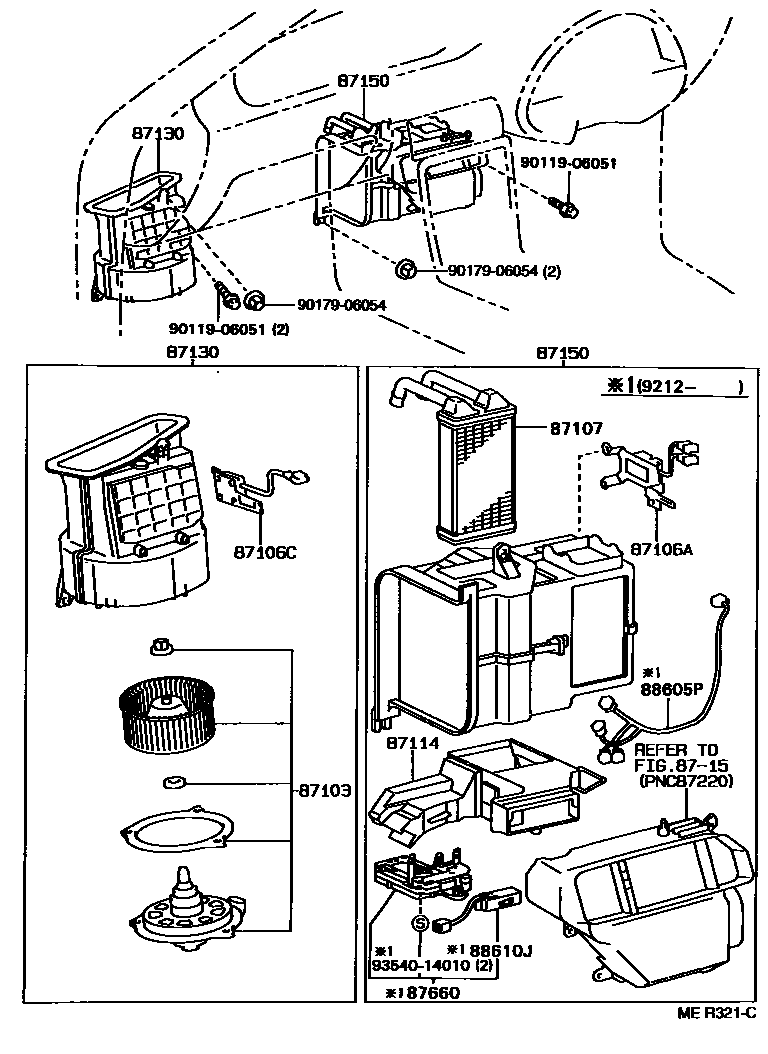

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-17010iEL44199101-199508

87106ASERVO SUB-ASSY, DAMPER

main87106-16010iEL44..BETA199101-199212

main87106-16030iEL44..BETA199212-199508

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-16020iEL44..BETA199101-199508

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-16190iEL44199101-199508

main87107-16200iEL44199101-199508

87114COVER, HEATER

main87114-16050iEL44199101-199508

main87114-16060iEL44199101-199508

87130BLOWER ASSY, HEATER, FRONT

main87130-16140iEL44..BETA199101-199508

main87130-16150iEL44..ALPHA199101-199508

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-16270iEL44..ALPHA199101-199508

main87150-16280iEL44..ALPHA199101-199508

main87150-16290iEL44..BETA199101-199212

main87150-16300iEL44..BETA199101-199212

main87150-16370iEL44..BETA199212-199508

main87150-16380iEL44..BETA199212-199508

87660SERVO ASSY, AIR CONDITIONER

main88660-16030iEL44199101-199212

main88660-16040iEL44199212-199508

88605PHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-1G650iEL44..BETA199212-199508

88610JSWITCH ASSY, CONTROL

main88610-16070iEL44199101-199508

9011906051

main90119-06051

9017906054

main90179-06054

9354014010

main93540-14010

14 parts on this diagram · 2 diagrams in section
