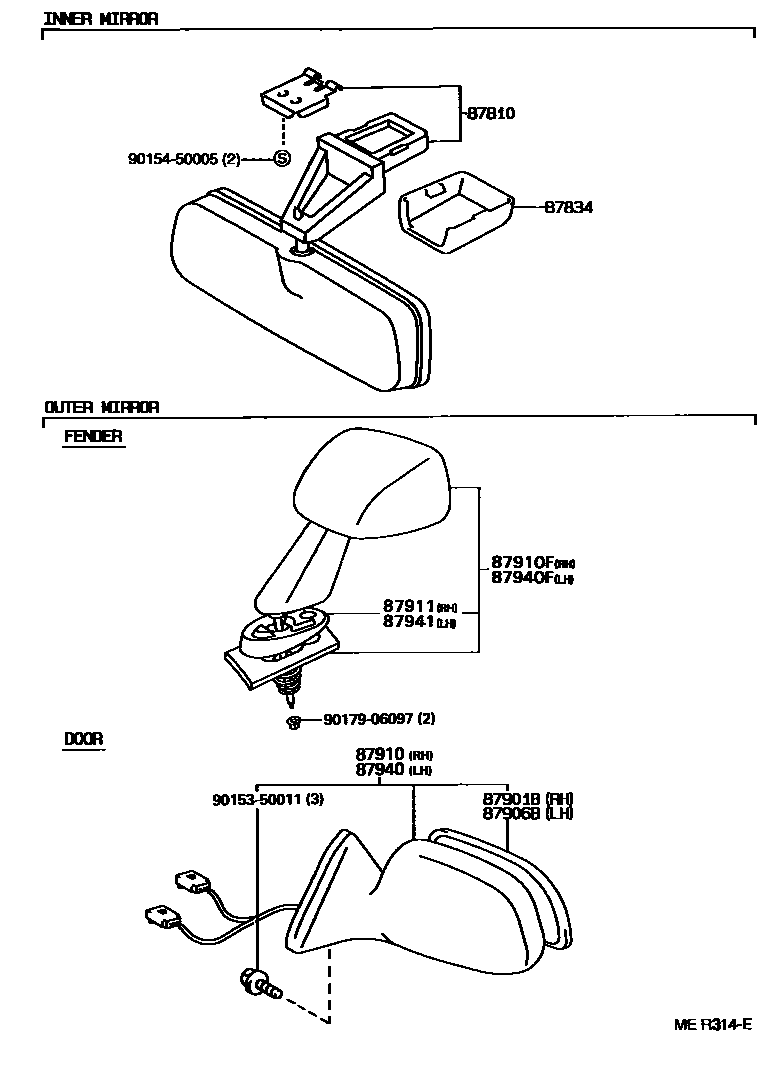

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
GRAY,TRIM2#
LI.GRAY,TRIM2#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
SHADOW GRAY,TRIM2#
LI.GRAY,TRIM2#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
BLACK ME,205
SUPER RED 2,3E5
SUPER SILVER ME 3,176
DARK BLUE M.M.,8J1
TURQUOISE M.M.,746
LIGHT YELLOW M.M.,570
SUPER SILVER 3 M.,176
BLACK ME,205
SUPER RED 2,3E5
GREENISH YELLOW M.M,569
LT.GREEN,27V
TURQUOISE M.M.,746
PURPLE M.M,924
BLUISH SILVER ME,1A0
BLACK ME,205
SUPER RED 2,3E5
DK. GREEN M.M.,6N7
DK. BLUE M.M.,24Y
PURPLISH BLUE M.M.,8K9
87910FMIRROR ASSY, FENDER, RH
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
BLACK ME,205
SUPER RED 2,3E5
SUPER SILVER ME 3,176
DARK BLUE M.M.,8J1
TURQUOISE M.M.,746
LIGHT YELLOW M.M.,570
SUPER SILVER ME 3,SUPER WHITE 2,176
BLACK ME,205
SUPER RED 2,3E5
GREENISH YELLOW M.M,569
LT.GREEN ME,27V
TURQUOISE M.M,746
PURPLE M.M,924
BLUISH SILVER ME,1A0
BLACK ME,205
SUPER RED 2,3E5
DK. GREEN M.M.,6N7
DK. BLUE M.M.,24Y
PURPLISH BLUE M.M.,8K9
87940FMIRROR ASSY, FENDER, LH
87941GASKET, OUTER REAR VIEW MIRROR, LH
9015350011
main90153-50011
9015450005
main90154-50005
9017906097
main90179-06097
13 parts on this diagram · 1 diagram in section
