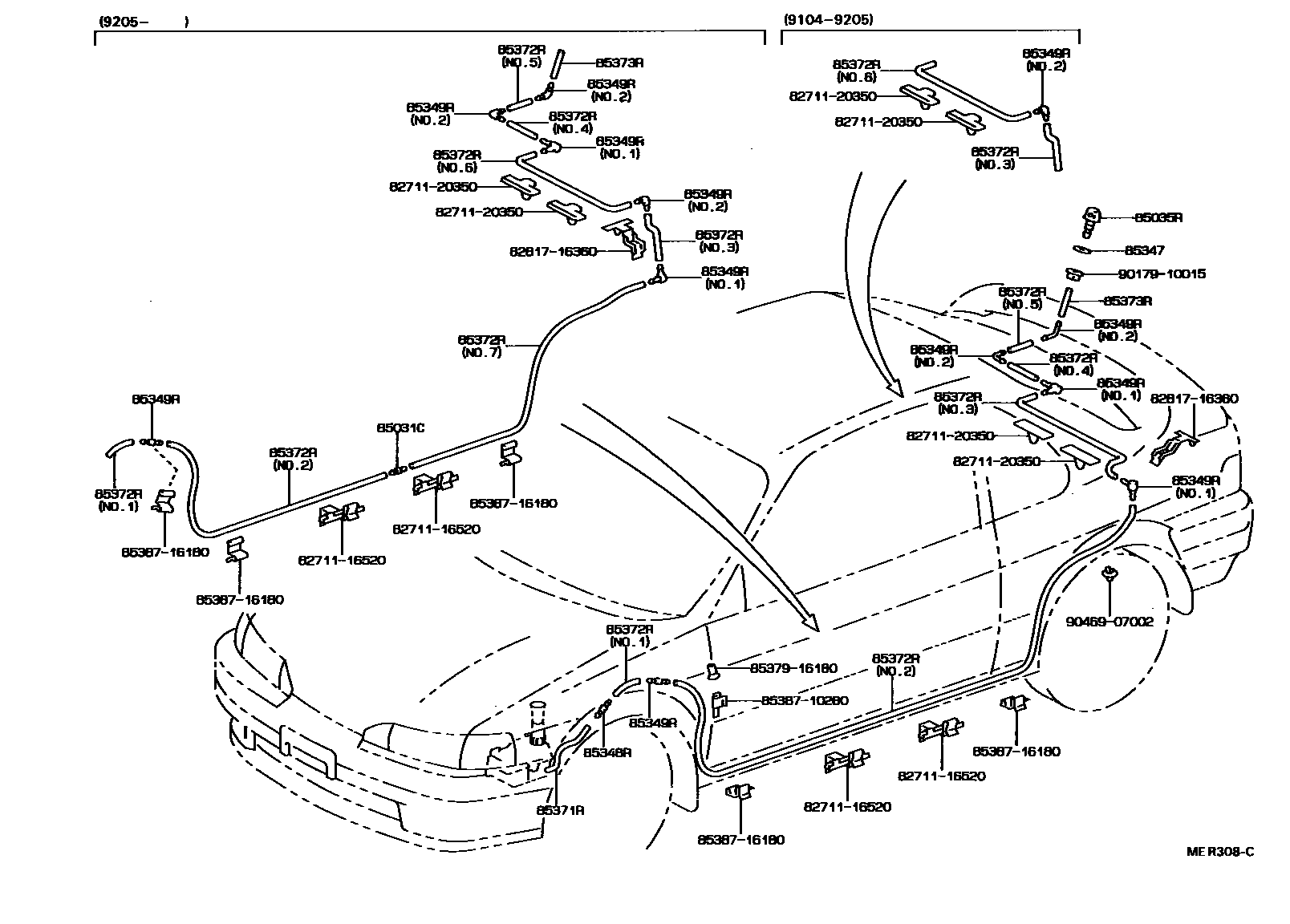

REAR WASHER

0001 1 0002 1

85031CVALVE SUB-ASSY, WASHER

main85031-90A00iEL44199205-199508

sub85375-12520

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-16020iEL44199101-199508

sub85035-12370

85347PACKING, REAR WASHER

main85347-12010iEL44199101-199508

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iEL44199101-199508

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-89122iEL44199101-199508

2 WAY

main85355-20200iEL44199101-199508

L JOINT,NO.2

main85376-10250iEL44199101-199508

L JOINT,NO.1

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iEL44199101-199508

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iEL44199208-199508

main90099-33080iEL44199101-199208

main90099-33511iEL44199101-199205

main90099-59026iEL44199101-199508

sub90099-33368

main90099-59053iEL44199208-199212

sub90099-33368

main90099-59080iEL44199205-199208

sub90099-33589

main90446-07001iEL44199101-199104

main90446-07001iEL44199101-199508

main90446-07001iEL44199104-199508

main90446-07001iEL44199208-199508

main90446-07006iEL44199205-199508

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iEL44199101-199508

8271116520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16520

8271120350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20350

8271120850WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20850

8281716360PROTECTOR, WIRING HARNESS, NO.1

main82817-16360

8537916180JOINT

main85379-16180

8538710280CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-10280

8538716180CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-16180

9017910015

main90179-10015

9046907002

main90469-07002

17 parts on this diagram · 2 diagrams in section
